SWITCHES

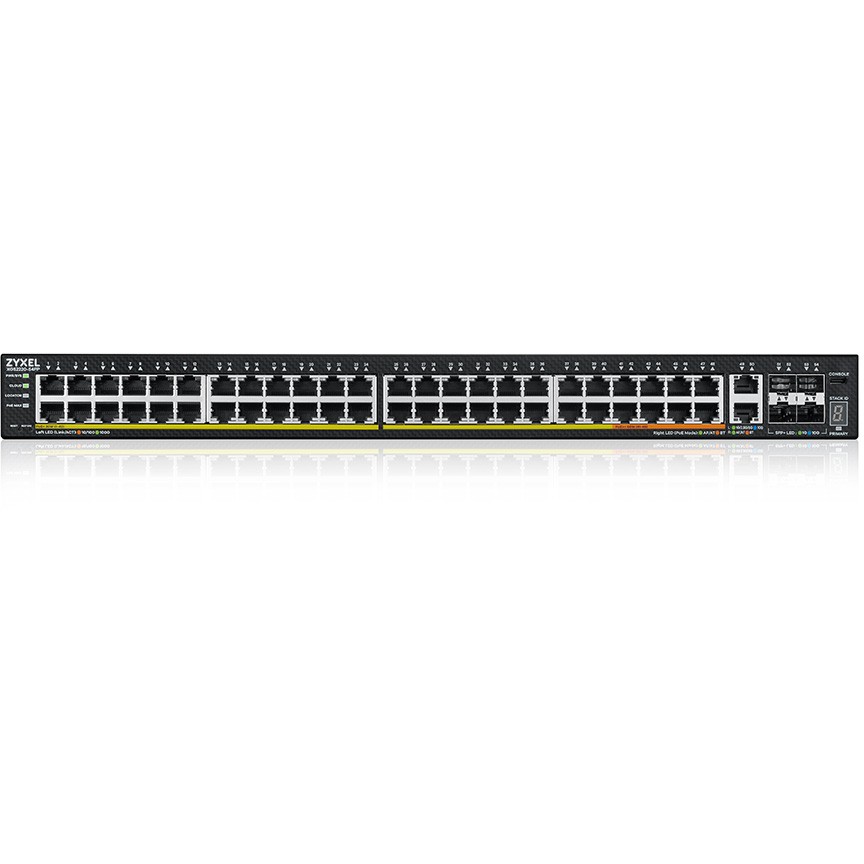

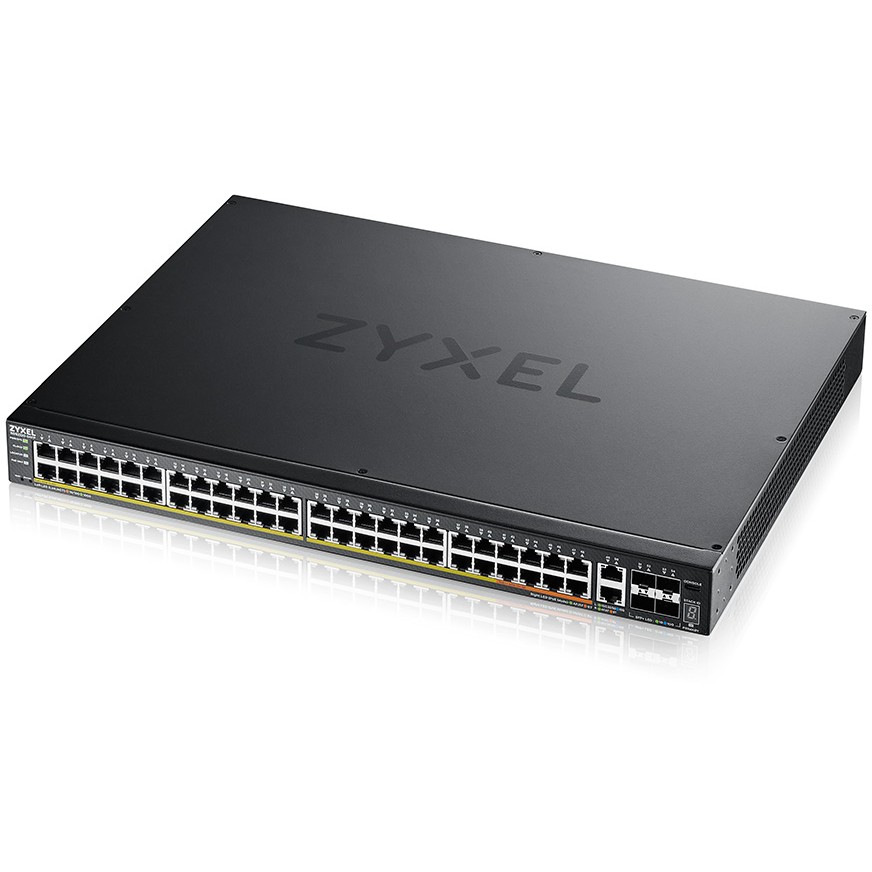

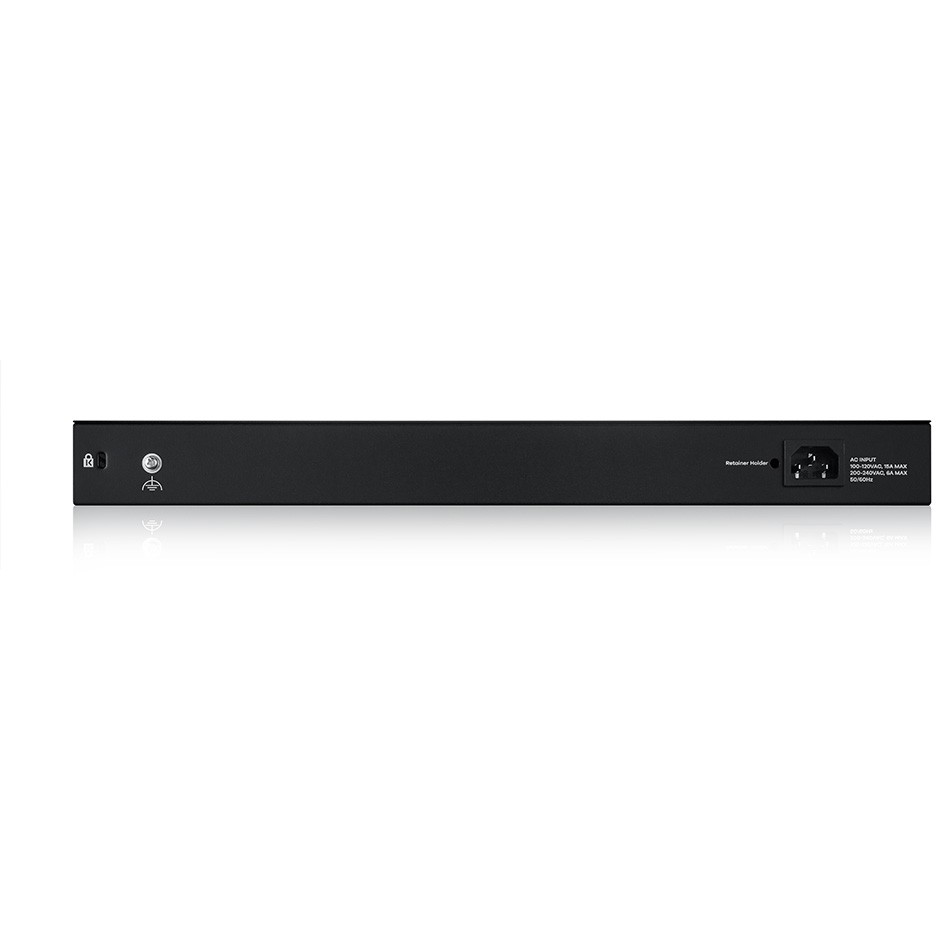

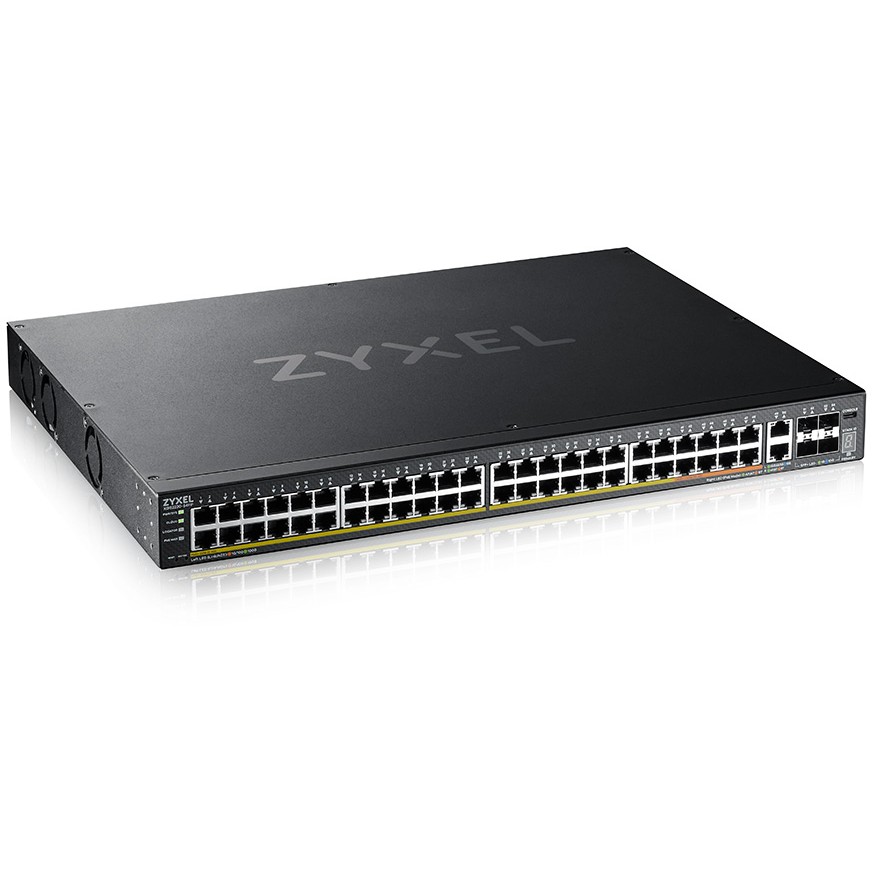

Nebula Cloud-managed Layer 3 Enterprise Switch
The XGS2220 Series is a family of Layer 3 access Switches that consists of six models. including PoE. Non PoE and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access| PoE models allow flexible options with larger PoE budgets and a mix of 60 W and 30 W ports to power devices like the latest WiFi 6/6E Wireless Access Points| The Fiber model aims to achieve business connectivity for high fiber port density requirement.

Flexible 10G For Converged Networking Applications
On top of four 10G SFP+ uplinks. the XGS2220 Series comes with two additional 10G Multi-Gig RJ 45 ports to offer the flexibility to connect to servers. network storage. or other high speed network devices. Business can operate smoothly with the better extensibility and robust network infrastructure.

Multiple Power Budget options
PoE models come with 10 ports of PoE++ (IEEE 802.3bt) offering up to 60 W per port and 16-40 ports of PoE+ (IEEE 802.3at) delivering up to 30 W per port to meet a variety of applications. including the latest generation of Wireless Access Points.

Within the range. the 3 PoE models of 30HP. 54HP and 54FP can offer larger Power budgets of 400 W. 600 W and 960 W respectively. allowing flexibility in powering a full range of PoE devices efficiently for applications like VoIP. surveillance. high density networked AV applications and Zyxel’s compressive WiFi 6/6E AP portfolio.

Nebula. Manage It Your Way!
The support of NebulaFlex Pro allows you to easily switch management modes between standalone management and intuitive Nebula cloud managed mode with 1 YEAR Pro Pack bundled. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network. without additional cost for a software or hardware controller.

Management features
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: ARP inspection
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
10G Ethernet (copper) ports quantity: 2
Installed SFP+ modules quantity: 4
Network
Feature: 10G support
Routing entries: 64
Data transmission
Switching capacity: 216 Gbit/s
Forwarding rate: 161 Mpps
MAC address table: 32000 entries
Feature: Jumbo frames support
Packet buffer memory: 2 MB
Security
DHCP features: DHCP relay. DHCP server
Feature: IGMP snooping
Feature: IGMP proxy
Authentication type: IEEE 802.1x. RADIUS. TACACS+
Multicast features
Multicast Listener Discovery (MLD) snooping: MLD v1/v2
Protocols
Feature: GARP VLAN Registration Protocol (GVRP)
Design
Feature: Rack mounting
Performance
Internal memory: 1024 MB
Flash memory: 64 MB
Mean time between failures (MTBF): 298.735 h
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 1161.6 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 50
Total Power over Ethernet (PoE) budget: 960 W
Operational conditions
Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 90%
Heat dissipation: 195.43 BTU/h
Weight & dimensions
Width: 441 mm
Depth: 330 mm
Height: 44 mm
Weight: 5 kg
