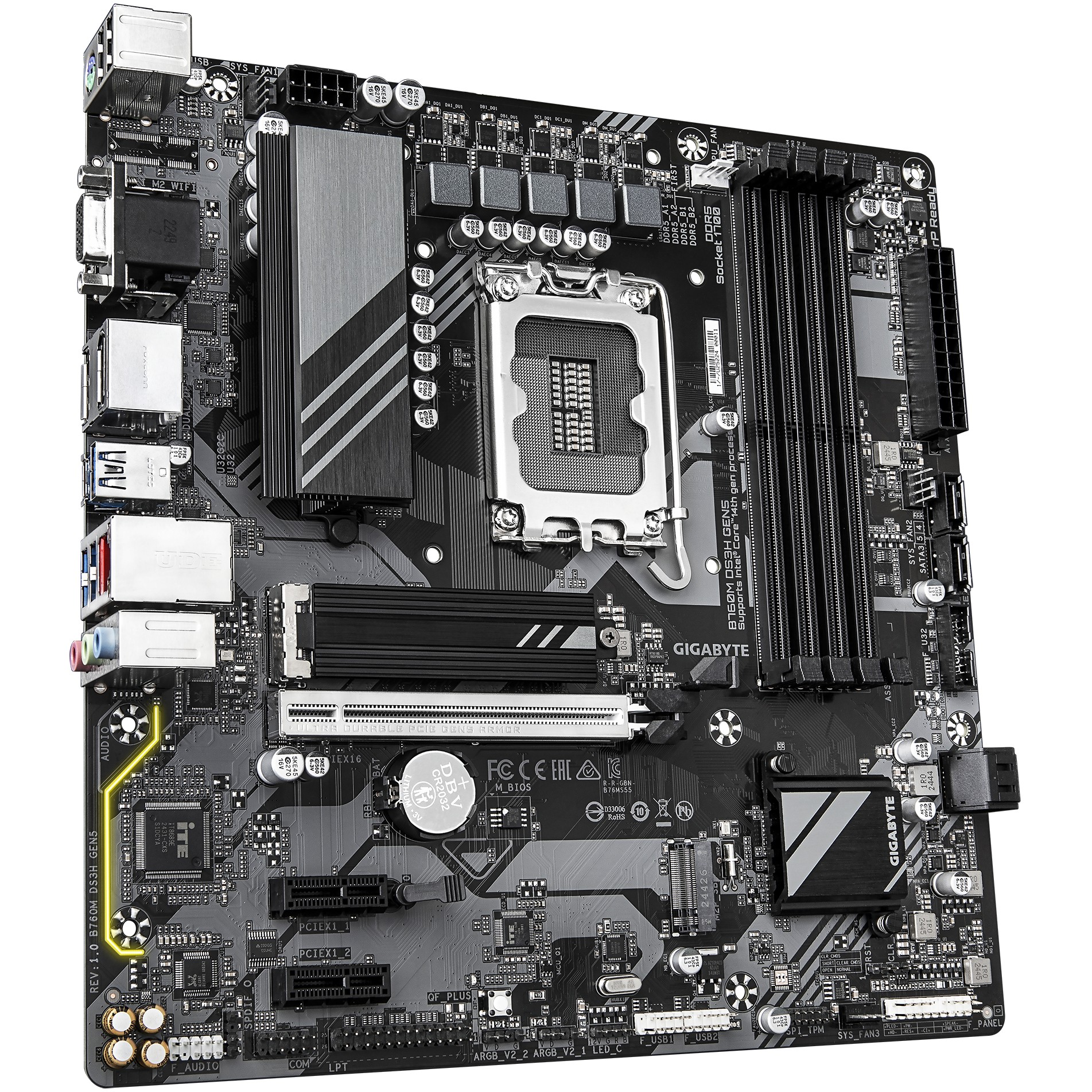

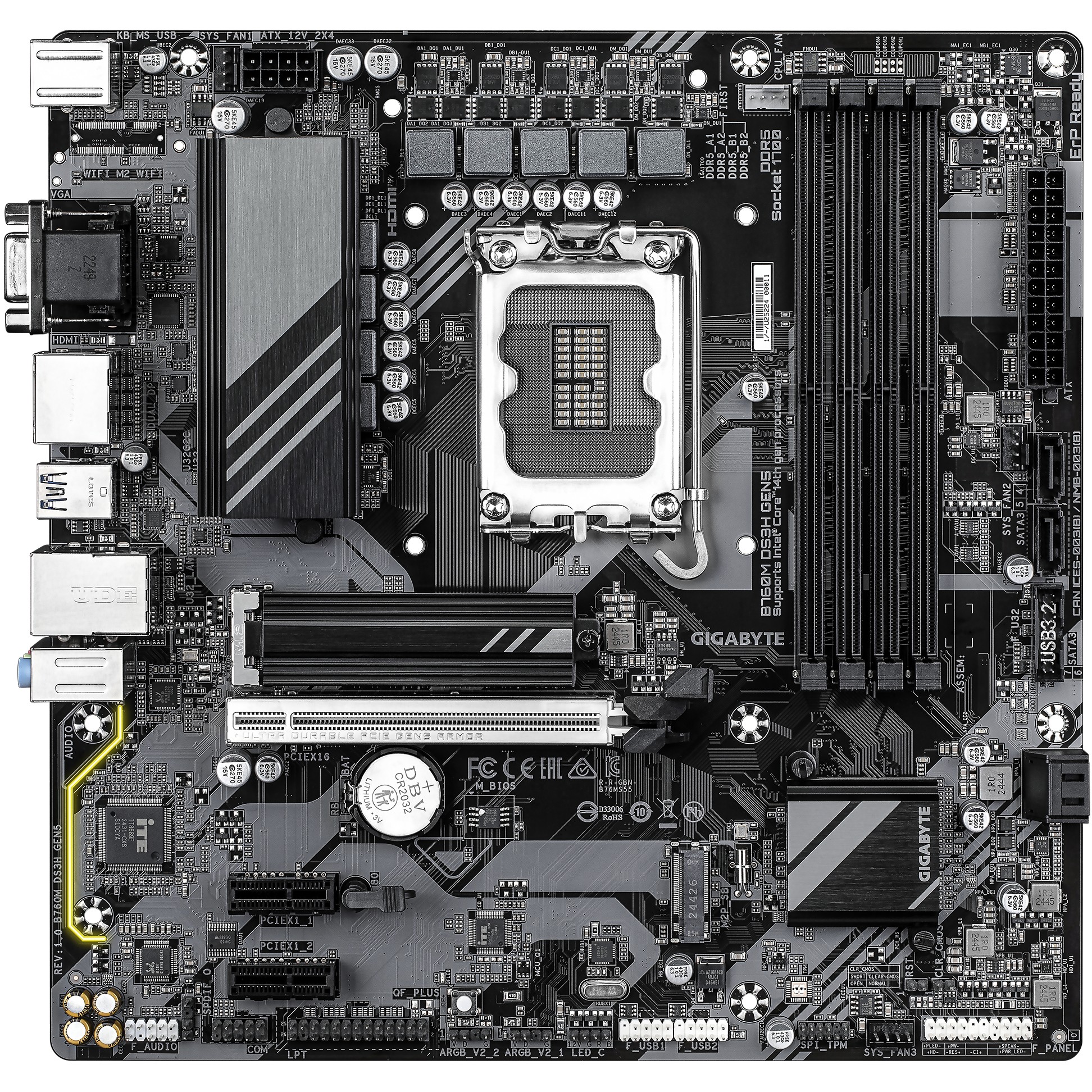

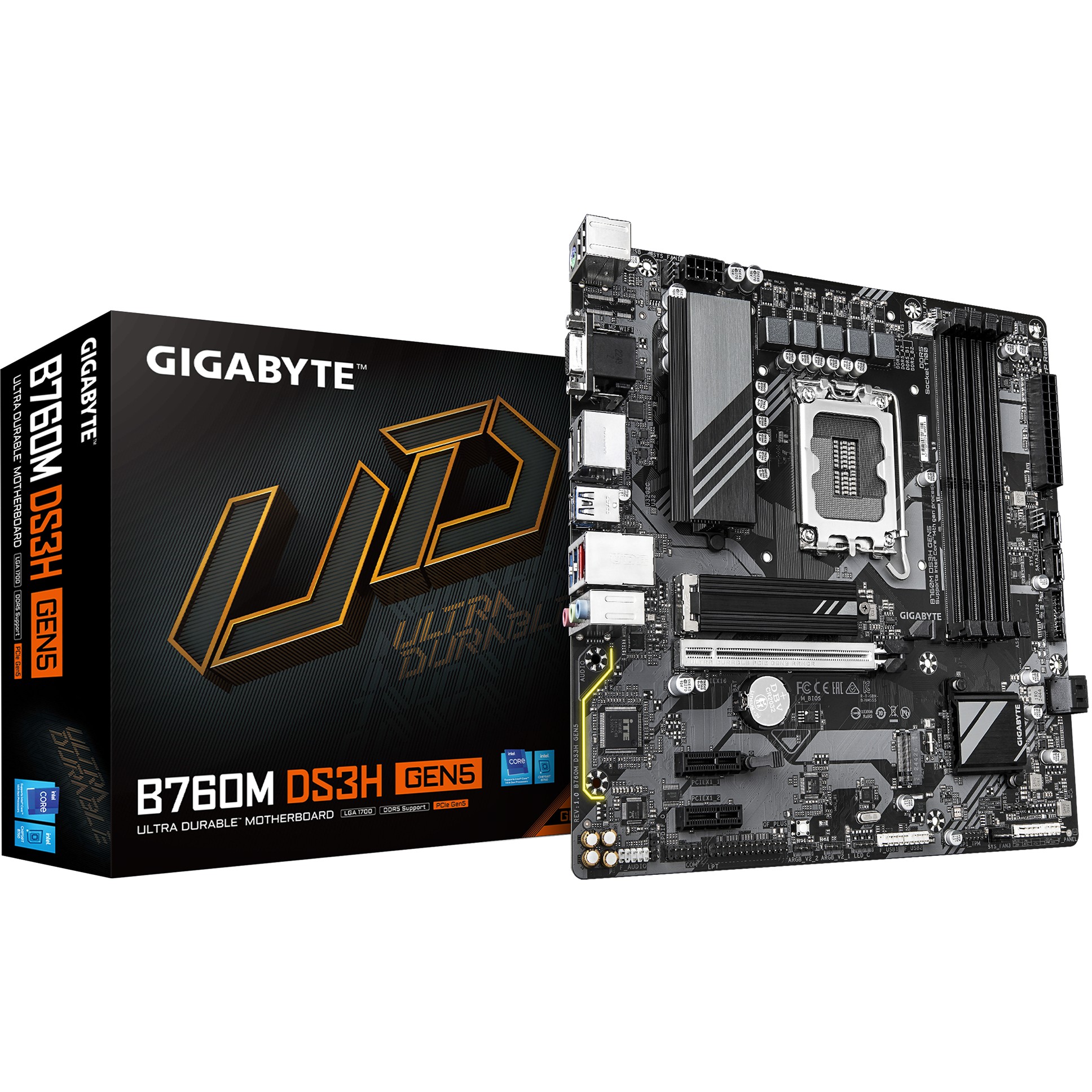

1700 Gigabyte B760M DS3H Gen5 ATX
Product code: 13263022 // MPN: B760M DS3H GEN5 // EAN: 4719331872793
€133,05 (inc. VAT)
Available from 4 to 10 days (55 pcs available)
Similar products
Supported RAM
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MT/s, 4800 MT/s, 5200 MT/s, 5600 MT/s |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
Audio
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
LAN
| Network Interfaces | 2.5 Gigabit Ethernet |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 3.0 x1 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |

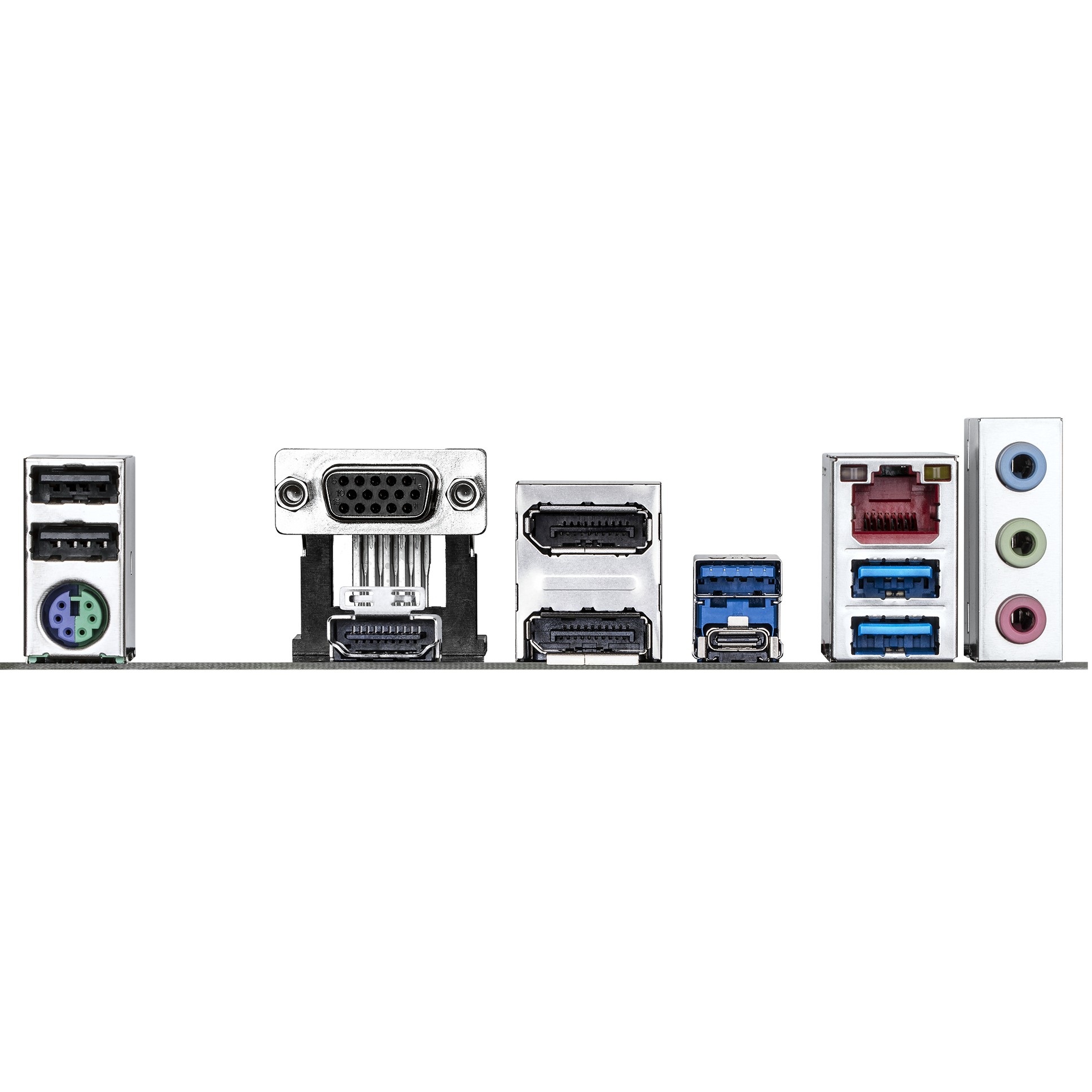

| Interfaces | 2 x DisplayPort 1 x HDMI 1 x VGA 2 x USB 2.0 3 x USB 3.2 Gen 1 1 x USB-C 3.2 Gen 2 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x parallel - header 1 x serial - header 1 x SPI - header 1 x SPDIF out - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan fail warning, fan control, water cooling flow rate, system voltage, temperature detection, fan speed detection |
| Hardware Features | 6+2+1 Phase Power Design, M.2 Thermal Guard, 6 Layer PCB, Premium Power Choke, VRM Thermal Armor Advanced, High-end Audio Capacitors, Q-Flash Plus, PCIe EZ Latch, Ultra Durable, GIGABYTE Smart Fan 6 |
Miscellaneous
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center |
| Compliant Standards | DisplayPort 1.2, HDCP 2.3 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| All in one: | |
| Brand: | Gigabyte |
| Gaming: |
