CCTV CAMERAS & RECORDING

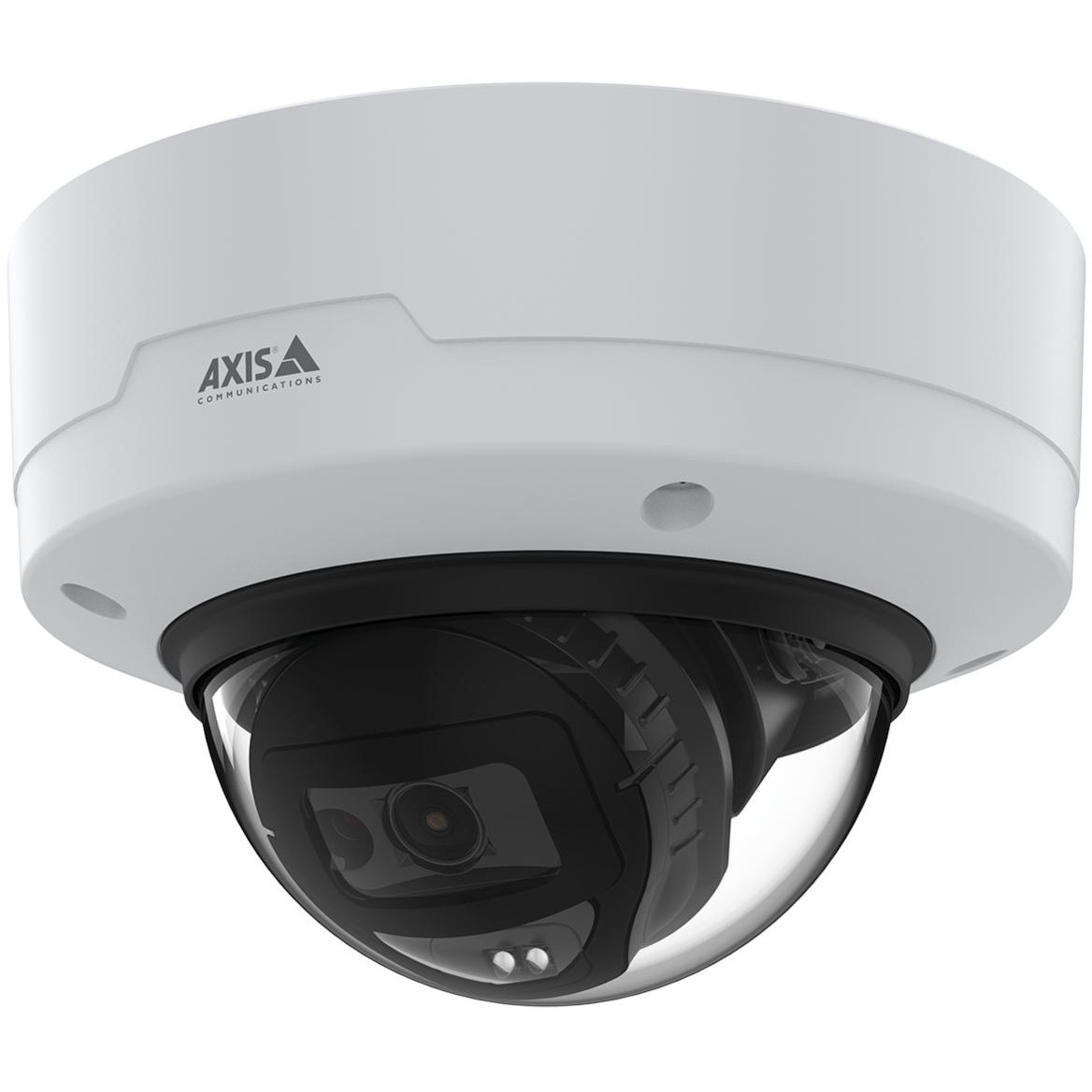

This cost-effective fixed focal dome offers Lightfinder. Forensic WDR. and OptimizedIR. and ensures excellent image quality under any light conditions. Built on ARTPEC-8. it includes a deep learning processing unit enabling powerful analytics based on deep learning on the edge. Plus. it delivers valuable metadata facilitating fast. easy. and efficient forensic search capabilities. And AXIS Object Analytics offers detection and classification of humans. vehicles. and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity. you can integrate for instance a microphone to extend the value of your system. Furthermore. built-in cybersecurity features safeguard your system.

Performance
Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Design
Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Plastic. Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10
Feature: Fog proof
Camera
Minimum illumination: 0.16 lx
Angle of rotation: 190°
Lens viewing angle. horizontal: 102°
Lens viewing angle. vertical: 73°
Tilt angle range: -10 - 80°
Pan range: 0 - 190°
Camera shutter speed: 1/50000 - 1/5 s
Image sensor
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Feature: Progressive scan
Sensor type: CMOS
Lens system
Feature: Zoom capability
Minimum aperture number: 2
Fixed focal length: 2.9 mm
Closest focusing distance: 1 m
Night vision
Feature: Night vision
LED type: IR
Video
Maximum resolution: 2688 x 1512 pixels
Video compression formats: H.264. H.265
Frame rate: 30 fps
Feature: Video streaming
Feature: Privacy masking
Network
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x
Storage
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash). MicroSDHC. MicroSDXC
Flash memory: 8192 MB
Internal memory: 1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Security
Security algorithms: EAP-TLS. HTTPS
Feature: HTTPS encryption
Power
Power source type: PoE
Power consumption (Power over Ethernet (PoE)): 4.8 W
Operational conditions
Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Height: 102 mm
Diameter: 14.9 cm
Weight: 791 g
Packaging content
Number of cameras: 1
