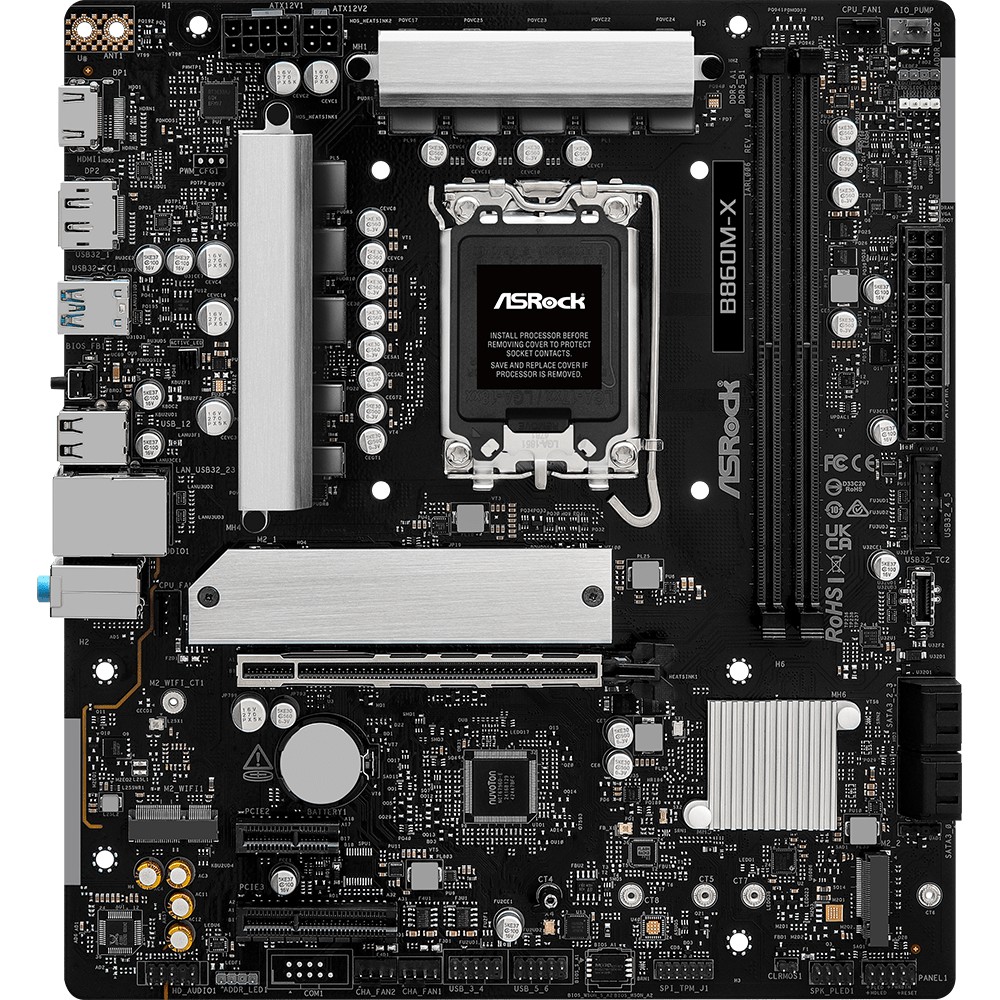

ASRock B860M-X - Motherboard - micro ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) | MOTHERBOARDS

ASRock B860M-X - Motherboard - micro ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Product code: 17343222 // MPN: 90-MXBRX0-A0UAYZ // EAN: 4711581490406

€123,30 (inc. VAT)

Available from 4 to 10 days (100 pcs available)

Add to wishlist

ASRock Z890 Pro-A WiFi DDR5 PCIe 5.0 ATX Motherboard

Code: 13607822

€243,20

Available from 4 to 10 days

Product Type	Motherboard - micro ATX
Chipset Type	Intel B860
Processor Socket	LGA1851 Socket
Max Processors Qty	1
Compatible Processors	(supports Intel Core Ultra processors (Series 2))
[Supported RAM]
Max Size	128 GB
Technology	DDR5
Bus Clock	9066 MHz (O.C.), 6400 MHz, 6800 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered, clocked unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology
[Audio]
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC897
Compliant Standards	High Definition Audio
[LAN]
Network Controller	Dragon RTL8125BG
Network Interfaces	2.5 Gigabit Ethernet
[Expansion / Connectivity]
Expansion Slots	1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 1 x PCIe 4.0 x4 1 x M.2 socket (2230 M.2 Key E slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x Blazing M.2 PCIe 4.0 -connectors: 1 x Hyper M.2
Interfaces	1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 1 x DisplayPort 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack
Internal Interfaces	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header 1 x SPI - header 1 x audio - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
[Features]
BIOS Type	AMI
BIOS Features	UEFI BIOS
Hardware Features	BIOS FlashBack button, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ASRock POST Status Checker (PSC), 7+1+1+1+1 Power Phase Design, 6 Layer PCB, aluminium heatsink design, chipset heatsink, ASRock Polychrome RGB, DIY Friendly Design, CUDIMM support
[Miscellaneous]
Included Accessories	2 x M.2 screws, standoff for M.2 socket, IO shield
Cables Included	2 x Serial ATA cable
Software Included	ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
Compliant Standards	FCC, ErP Ready, EuP Ready, HDCP 2.3, DisplayPort 1.4
Width	24.4 cm
Depth	21.8 cm
