| Product Type |
Motherboard - ATX |
| Chipset Type |
AMD X870 |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports Ryzen 7000/8000/9000 Series) |
| Supported RAM |
Supported RAM |
| Max Size |
192 GB |
| Technology |
DDR5 |
| Bus Clock |
4000 MHz (O.C.) |
| Supported RAM Integrity Check |
On-die ECC, non-ECC, ECC |
| Registered or Buffered |
Unbuffered |
| Features |
Dual channel memory architecture, AMD EXPO technology |
| Audio |
Audio |
| Type |
HD Audio (8-channel) |
| Compliant Standards |
High Definition Audio |
| LAN |
LAN |
| Network Interfaces |
2.5 Gigabit Ethernet |
| Expansion / Connectivity |
Expansion / Connectivity |
| Expansion Slots |
1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x1 mode) 3 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces |
SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features |
AMD RAID Xpert2 Technology |
| Interfaces |
2 x Thunderbolt 4/DisplayPort/USB4 1 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 4 x USB 2.0 1 x HDMI 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack |
| Internal Interfaces |
1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header 1 x serial - header |
| Power Connectors |
24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features |
Features |
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up |
Wake on LAN (WOL), wake on PME |
| Hardware Features |
ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), LANGuard, 14+2+1 Phase Power Design, BIOS FlashBack button, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack LED, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, ASUS Aura Sync, AI Cooling II, chipset heatsink, 8 Layer PCB, DIY Friendly Design |
| Miscellaneous |
Miscellaneous |

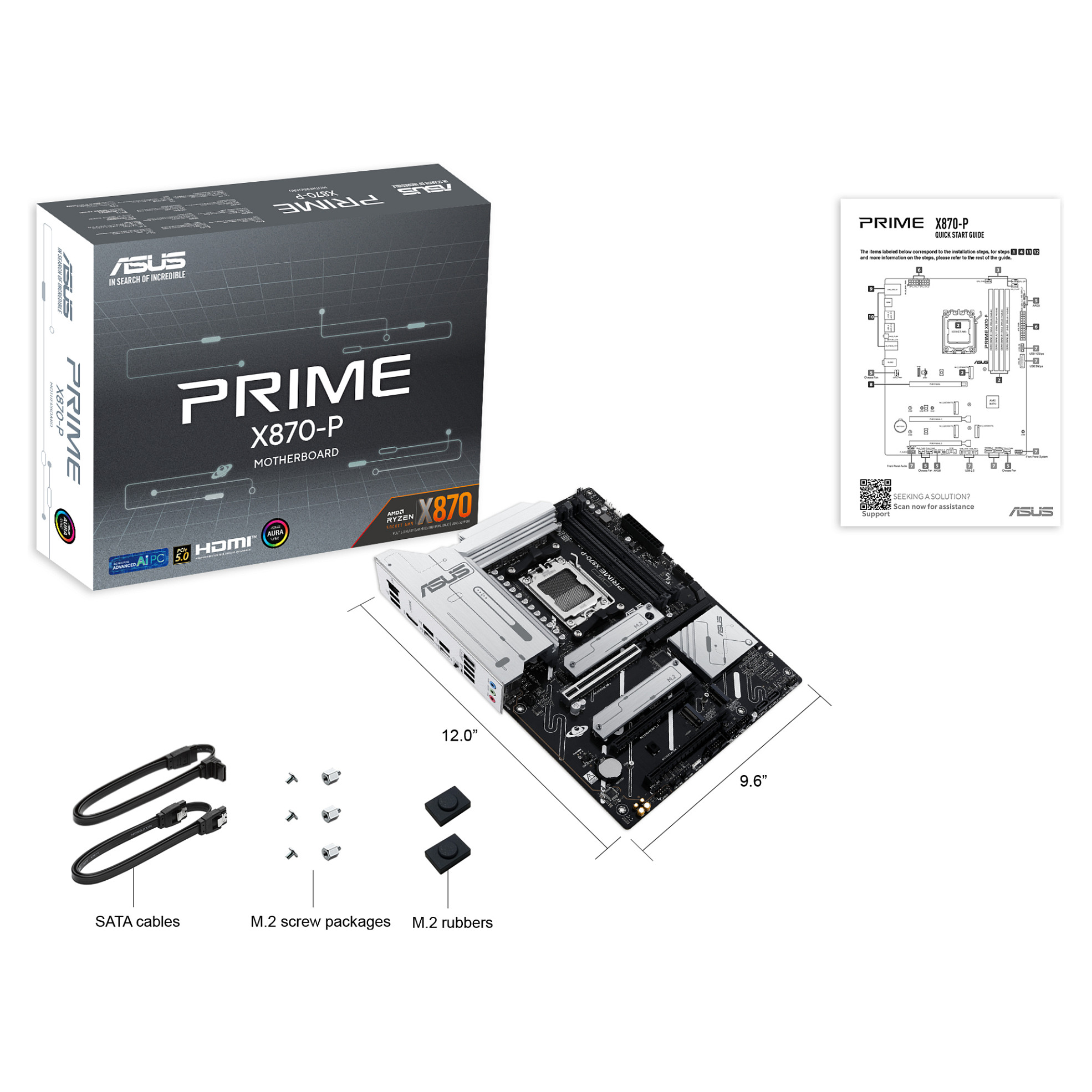

| Included Accessories |
1 x M.2 rubber package, 2 x M.2 screw package |
| Cables Included |
2 x Serial ATA cable |
| Software Included |
Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, TurboV Core, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
| Compliant Standards |
DisplayPort 1.4a |
| Width |
30.5 cm |
| Depth |
24.4 cm |
