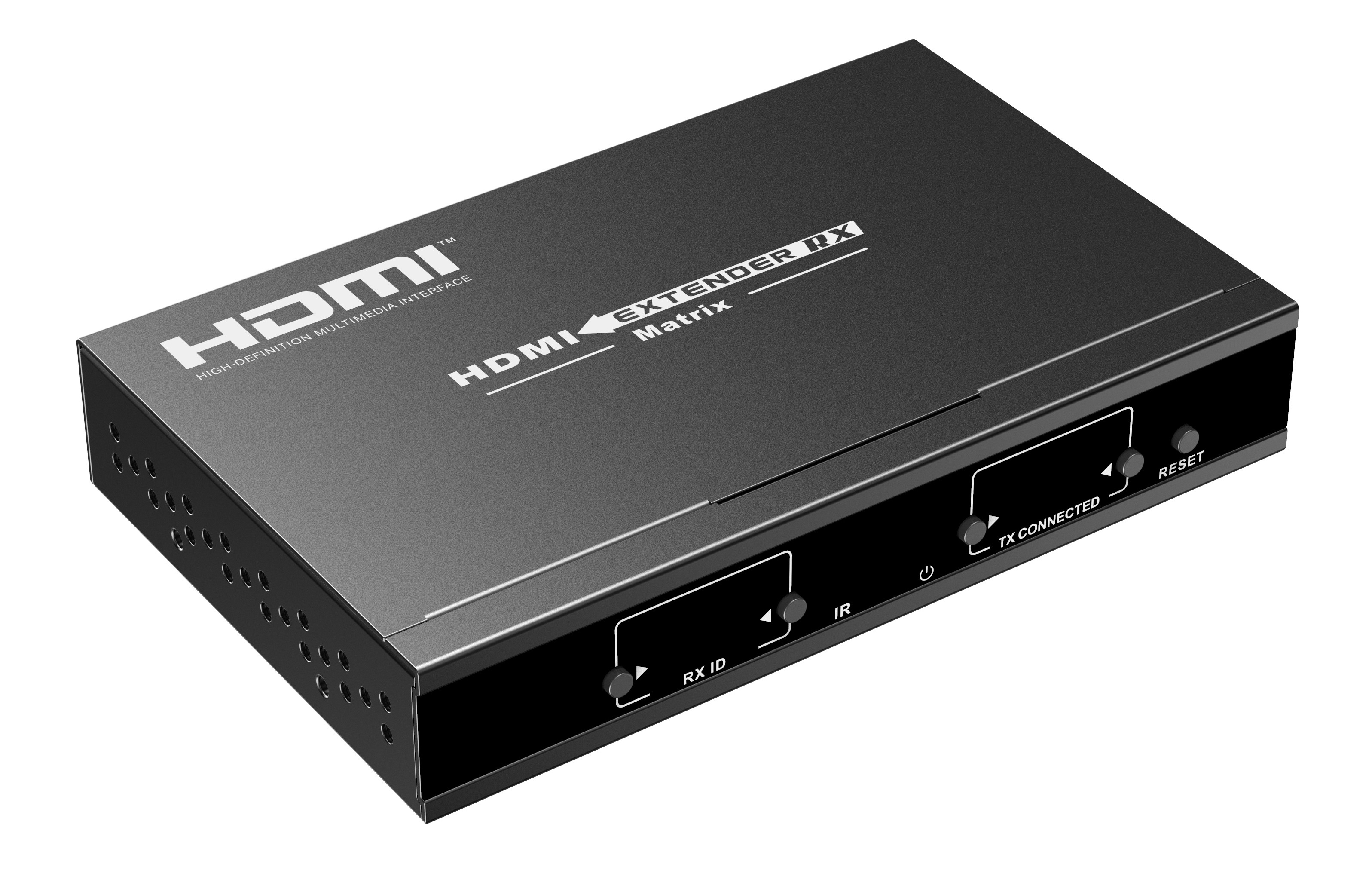

Lenkeng HDMI Matrix over IP 1080p Receiver LKV383Matrix-RX

Product code: 17983520 // MPN: LKV383Matrix-RX

€114,24 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

Marmitek IR Extender Multi-Device up to 300m via Ethernet Cable IR Control 10 XTRA

Code: 17982320

€95,99

Available from 1 to 3 days

The Lenkeng LKV383Matrix-RX is a 1080p HDMI over IP receiver, part of an HDMI matrix system that transmits and distributes HDMI signals over a local network (LAN) using IP (Internet Protocol) technology. This allows for flexible, long-distance AV distribution without traditional HDMI cable limitations.

Full HD 1080p Support – Transmits high-definition video and audio over IP.
HDMI over IP (H.264/H.265 Encoding) – Compresses and streams HDMI signals via Ethernet.
LAN/Wi-Fi Connectivity – Uses CAT5e/6/7 cables or Wi-Fi (if supported) for transmission.
Low Latency – Optimized for real-time video (gaming, live broadcasts, etc.).
IR Remote Pass-Through – Control source devices remotely via IR extender.
Multi-Room Distribution – Works with a transmitter (TX) to send signals to multiple receivers (RX).
Plug-and-Play – No software needed for basic setup.

Video & Audio

Supported Resolution:
- 1080p Full HD (1920×1080 @ 60Hz)
- Lower resolutions supported (720p, 480p)
Video Compression: H.264 (AVC) encoding
Color Depth: 8-bit (16.7 million colors)
Audio Support:
- HDMI embedded audio (LPCM, Dolby Digital, DTS)
- Stereo 2.0 / 5.1 Surround (depends on source)

Network & Connectivity

Transmission Method: HDMI over IP (LAN/Wi-Fi)
Ethernet Port: 10/100Mbps (RJ45)
Wi-Fi Support: Likely optional (depends on firmware)
Latency: <100ms (near real-time)
Max Transmission Distance:
- Up to 100m (328ft) via CAT6 Ethernet
- Longer distances possible with network switches

Ports & Power

HDMI Output: 1× HDMI (to display)
IR Remote Port: 3.5mm jack (for IR extender)
Power Input: DC 5V/1A (USB or power adapter)
USB Port: Possibly for firmware updates

Compatibility

HDCP Support: HDCP 1.4 (may not work with HDCP 2.2 content)
Supported Devices:
- PCs, laptops, gaming consoles (PS4, Xbox), Blu-ray players, cable boxes
- Not compatible with Apple DRM-protected content (e.g., iTunes movies)
