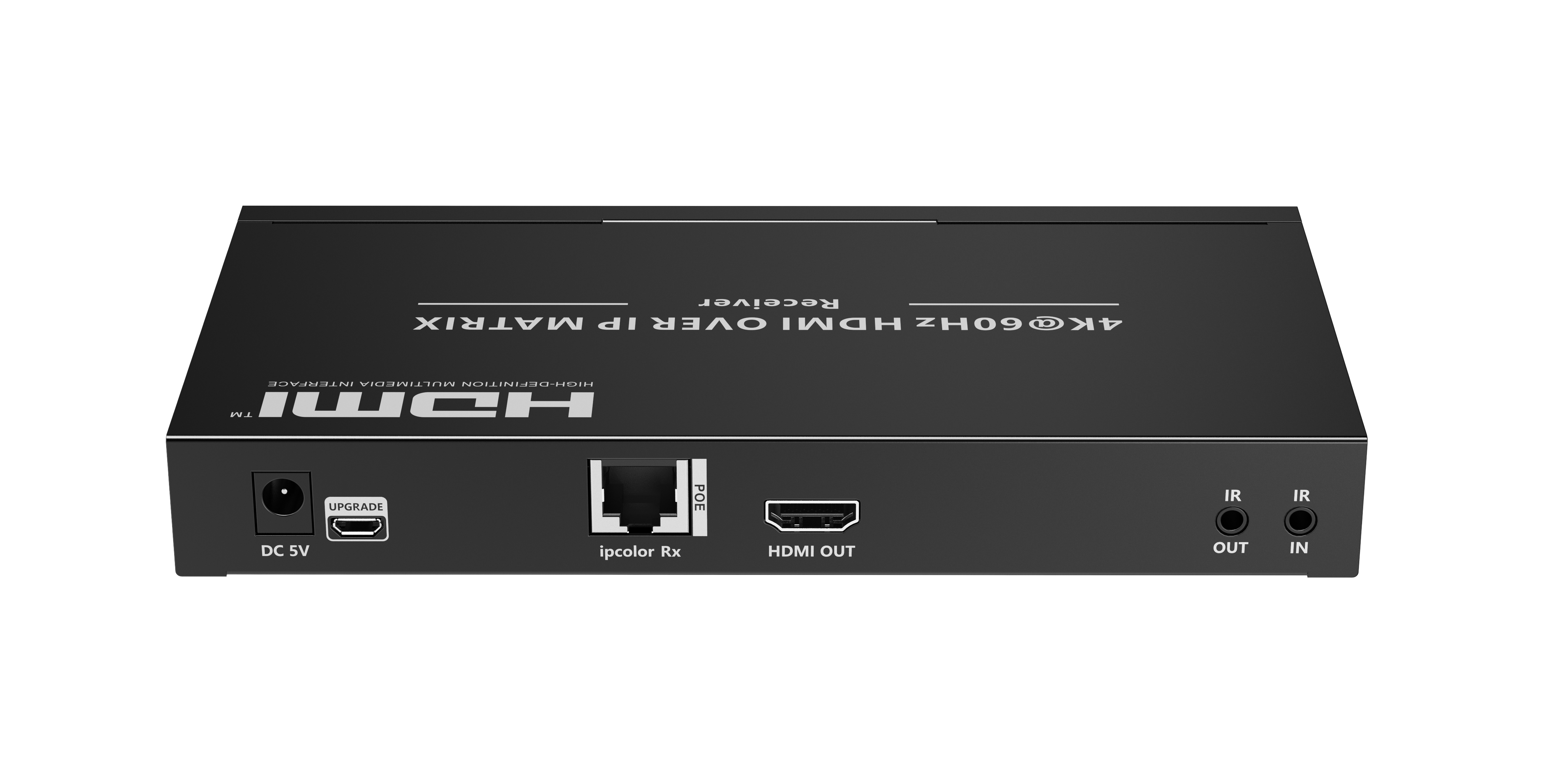

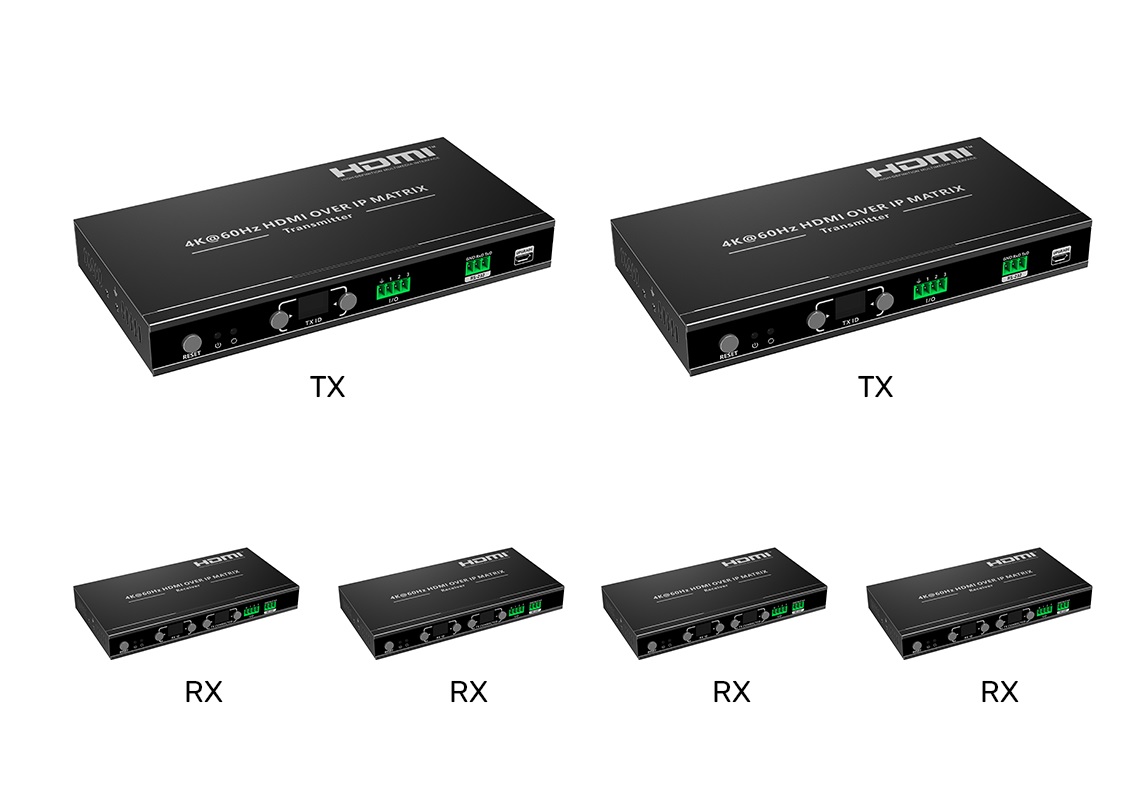

Lenkeng HDMI Matrix over IP 4K POE, APP, VideoWall, MultiView 2x4 (iMCS-IM02-2TX/4RX)
Κωδικός: 17984020 // Κωδικός προμηθευτή: iMCS-IM02-2TX/4RX
€1.055,04 (συμπ. ΦΠΑ)
Διαθέσιμο από 1-3 εργάσιμες ημέρες
Vention HDMI Wireless Transmitter-Receiver Kit 5GHz 1080p ADCB0
Κωδικός: 17979920
€104,64
Διαθέσιμο από 1-3 εργάσιμες ημέρες- Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
- Supports up to 3840 x 2160@60Hz resolution, backwards compatible.
- Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.

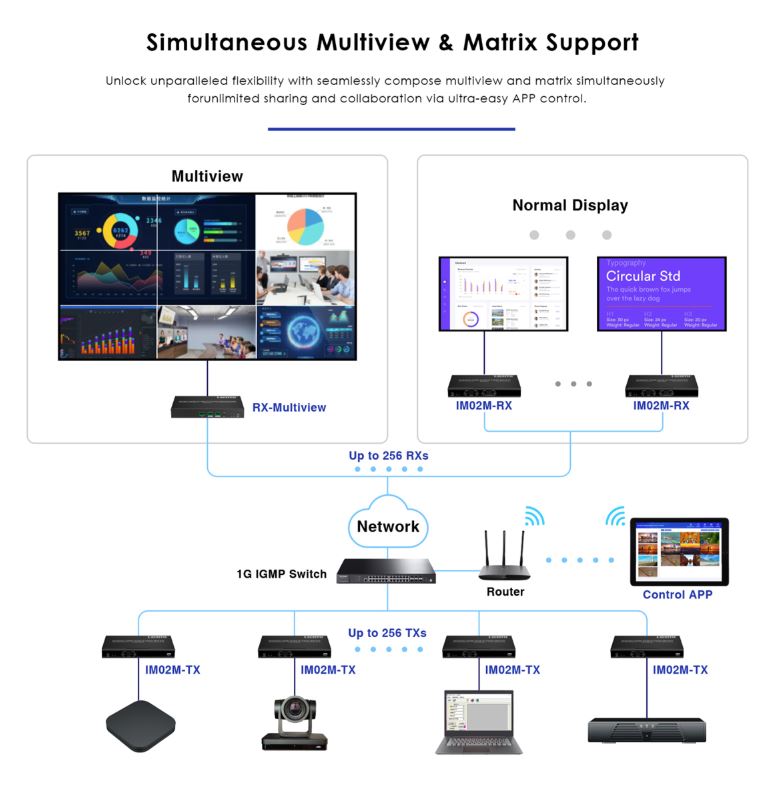

- Supports one-to-one or many-to-many connections through the gigabit switch.
- Supports RS-232 passthrough and control.
- The transmitter supports HDMI loop out.
- Supports bi-directional IR pass-back(20~60KHz);
- Supports IR learning remote and control device by APP.
- Supports I/O interface control.
- Supports POE(Power over Ethernet).
- Creating multi-screen splicing video wall through switch and controlled by APP.
- Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration.
HDMI Transmission
-
Max HDMI Cable Length (Direct Connection): ≤5m (standard limitation)
-
Extended Transmission via CAT5e/CAT6:
-
CAT5: Up to 80m
-
CAT5e: Up to 100m
-
CAT6: Up to 120m
-
-
Max HDMI Bandwidth: 18Gbps (HDMI 2.0)
-
Supported Resolutions:
-
4K@60Hz (3840×2160)
-
4K@30Hz (4096×2160)
-
1440p@60Hz (2560×1440)
-
1080p@60Hz
-
720p@60Hz
-
-
HDCP Support: HDCP 1.4 & 2.2 (for DRM-protected content like Netflix, Blu-ray)
Latency (Important for Gaming & Real-Time Use)
-
4K@60Hz: 130~200ms (high delay, not ideal for gaming)
-
1080p@60Hz: 70~130ms (better, but still laggy for fast-paced games)
Audio Support
-
HDMI Audio Output: LPCM 2.0 (Stereo only, no Dolby/DTS surround)
IR Remote Control Support
-
IR Receiving Range: ≤5m
-
IR Frequency: 20kHz~60kHz
RS-232 Serial Control
-
Default Baud Rate: 115200
-
Supported Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Power & Consumption
-
Input Power: DC 5V/2A (for both TX & RX)
-
Power Consumption:
-
TX (Transmitter): ≤5.5W
-
RX (Receiver): ≤3.5W
-
Physical & Environmental
-
Housing Material: Iron (durable but heavy)
-
Weight:
-
TX: 523g
-
RX: 514g
-
-
Dimensions: 191.0(L) × 96.0(W) × 25.0(H) mm
-
Operating Temperature: -20°C ~ 60°C
-
Storage Temperature: -30°C ~ 70°C
-
Humidity Tolerance: 0~90% RH (non-condensing)
Protection Features
-
ESD Protection:
-
Contact discharge: ±4KV (IEC61000-4-2 Level 2)
-
Air discharge: ±8KV (IEC61000-4-2 Level 3)
-
-
Surge & Lightning Protection (for stable signal transmission)
| Brand: | Lenkeng |
