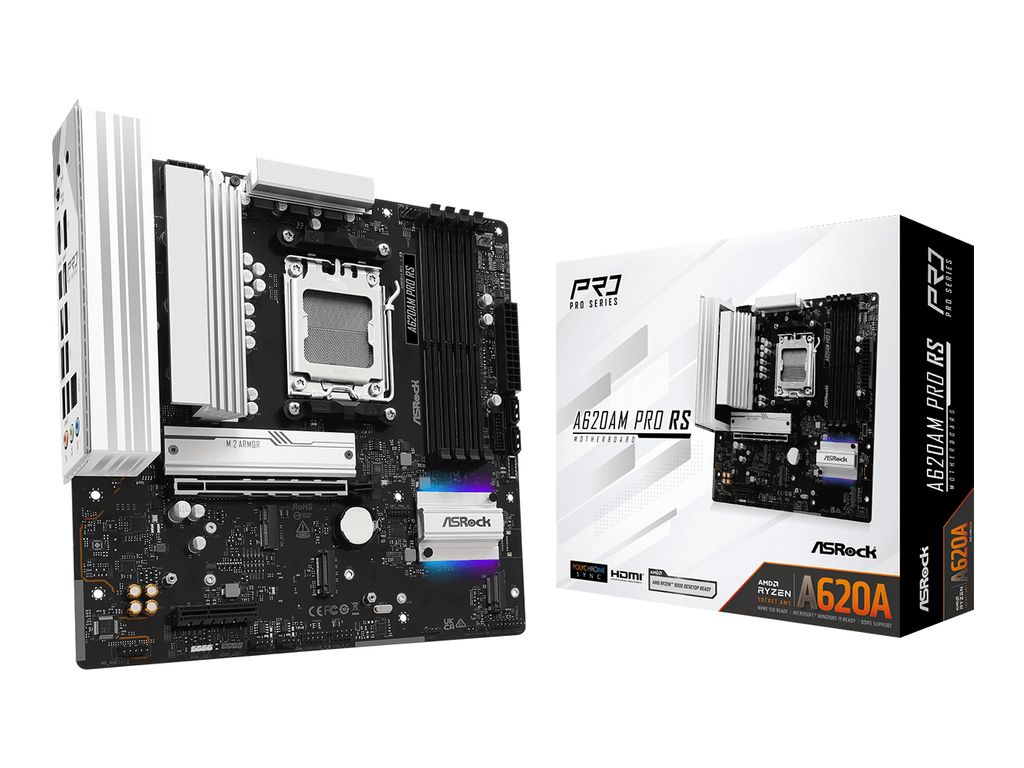

ASRock A620AM Pro RS AM5 mATX HDMI/DP DDR5
Product code: 19663423 // MPN: 90-MXBSV0-A0UAYZ // EAN: 4711581490949
€120,55 (inc. VAT)
8-12 business days (12 pcs available)
Similar products
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A620A |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 7200 MT/s (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 (x2 mode) 1 x M.2 socket (2230 M.2 Key E slot) 3 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 3.0 -connectors: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10 |

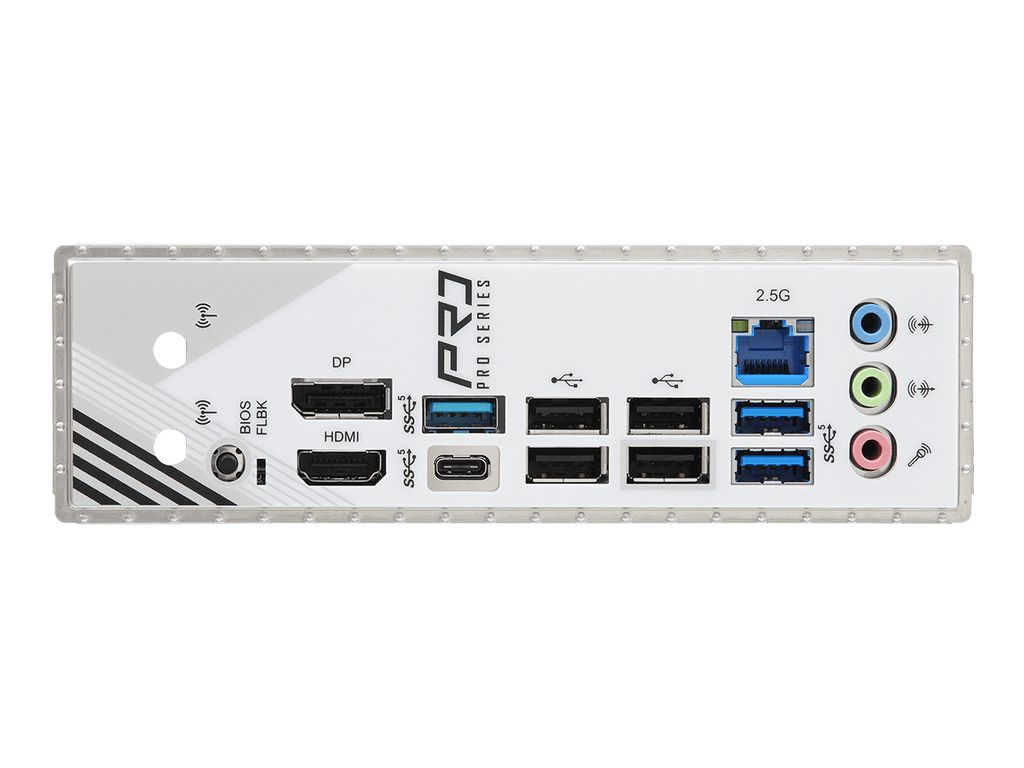

| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header 1 x USB-C 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | 6+2+1 Phase Power Design, pre-mounted I/O shield, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), Hi-Density Power Connectors, Dr.MOS MOSFET, 6 Layer PCB, aluminium heatsink design, Nahimic Audio Enhacer, ASRock Polychrome RGB |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x ASRock WiFi 2.4/5/6 GHz Antennas, 4 x M.2 screws, standoff for M.2 socket |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock Polychrome SYNC |
| Compliant Standards | ErP Ready, EuP Ready, FCC |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| All in one: | |
| Brand: | ASRock |
| Gaming: |
