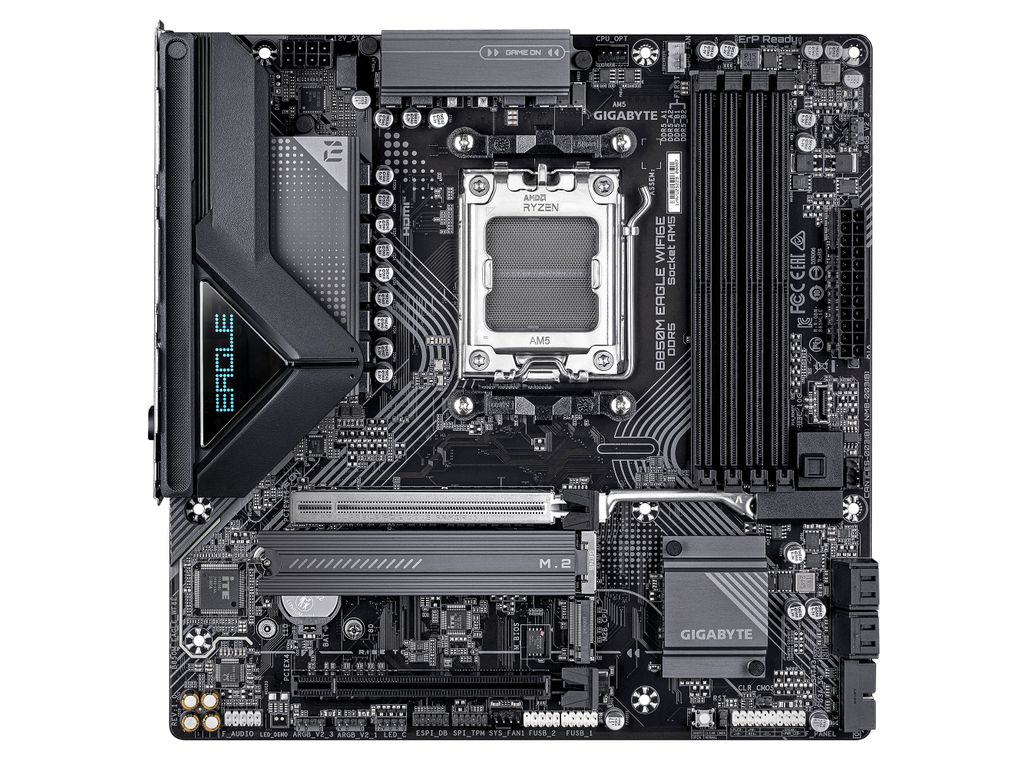

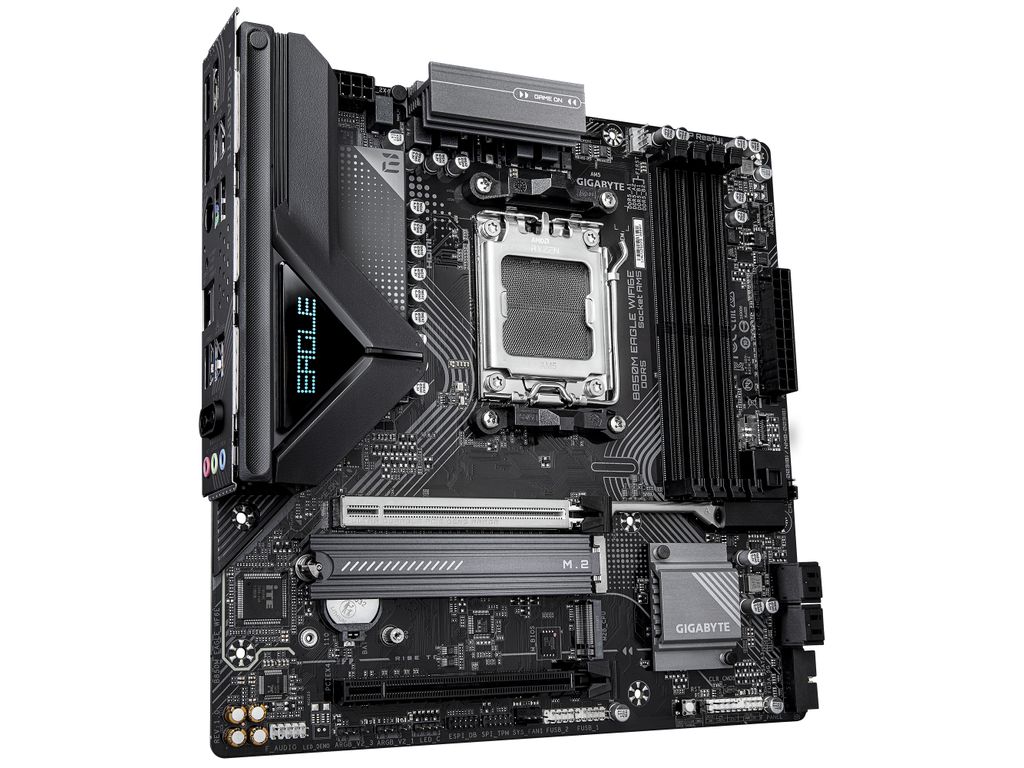

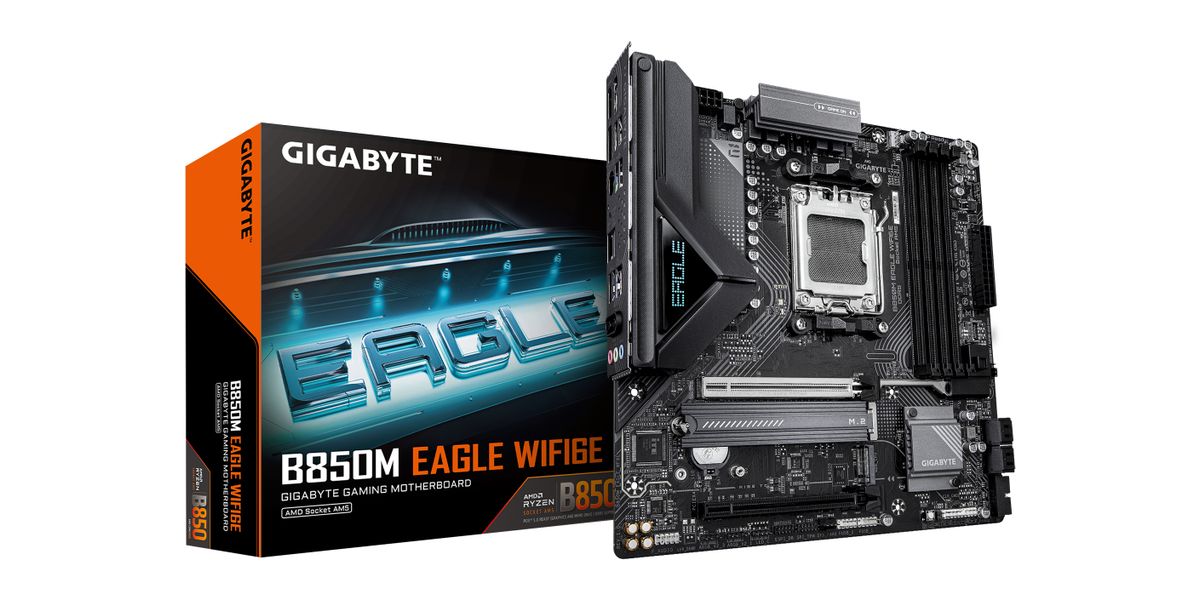

Gigabyte B850M Eagle WiFi6E (B850,AM5,mATX,DDR5)
Product code: 19666323 // MPN: B850M EAGLE WF6E // EAN: 4719331871826
€206,85 (inc. VAT)
8-12 business days (53 pcs available)
Similar products
Specifications
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MT/s, 4800 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 7900 MT/s (O.C.), 7950 MT/s (O.C.), 8000 MT/s (O.C.), 8200 MT/s (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8852CE |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4 mode) 1 x M.2 socket (2280/22110 M.2 Key M slot) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x PS/2 keyboard / mouse 1 x HDMI 2 x DisplayPort 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x LAN (2.5Gigabit Ethernet) 1 x USB-C 3.2 Gen 2 1 x USB 3.2 Gen 2 2 x aerial |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, fan fail warning, water cooling flow rate, fan control |
| Hardware Features | 8+2+2 Phase Power Design, 6 Layer PCB, Premium Power Choke, pre-mounted I/O shield, M.2 Thermal Guard, GIGABYTE Smart Fan 6, Q-Flash Plus button, WIFI EZ-Plug, High-end Audio Capacitors, RGB FUSION, M.2 EZ Latch plus, M.2 EZ Latch click, PCIe EZ Latch Plus, EZ Debug LED, Ultra Durable |
| Miscellaneous | Miscellaneous |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| All in one: | |
| Brand: | Gigabyte |
| Gaming: |
