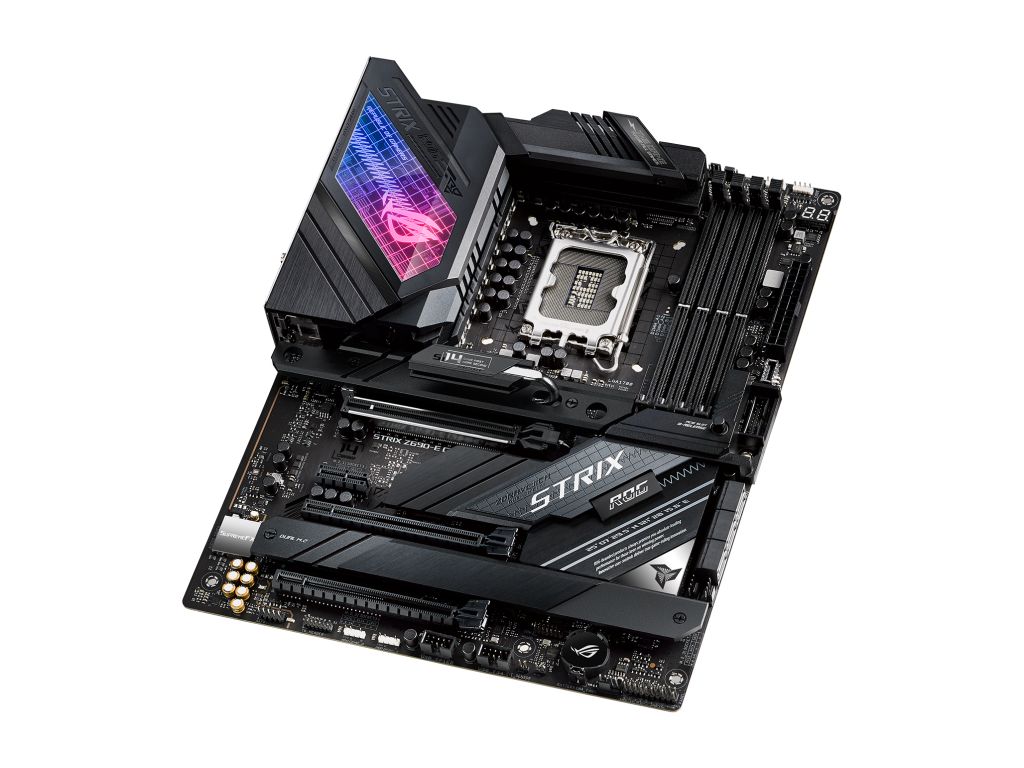

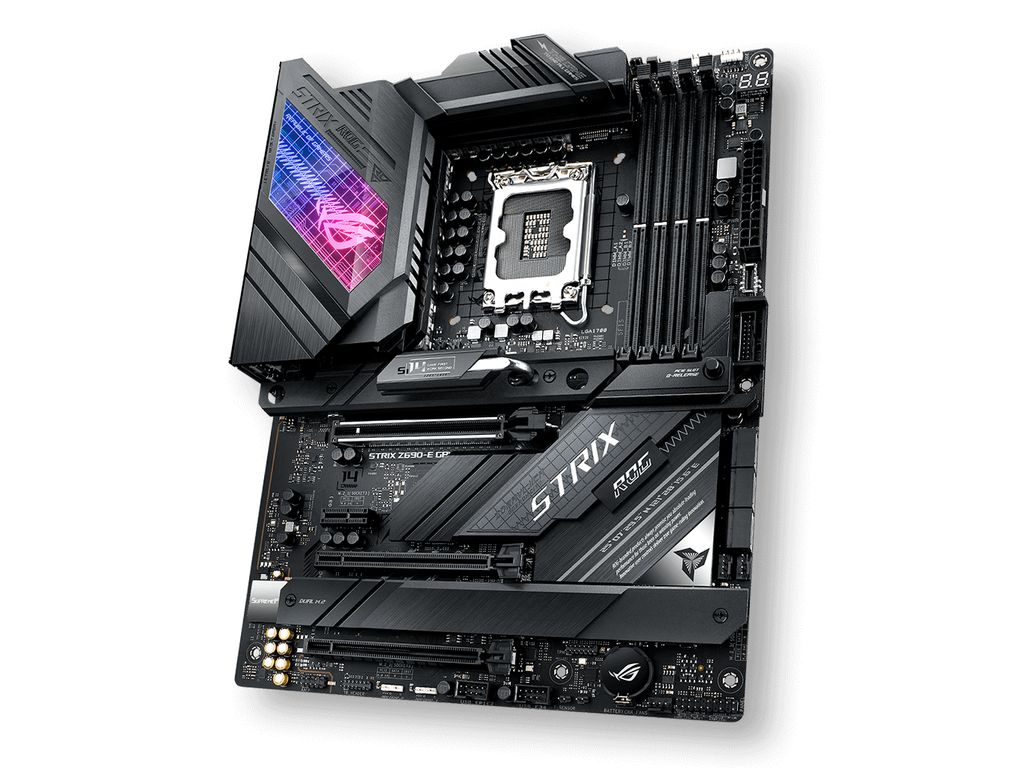

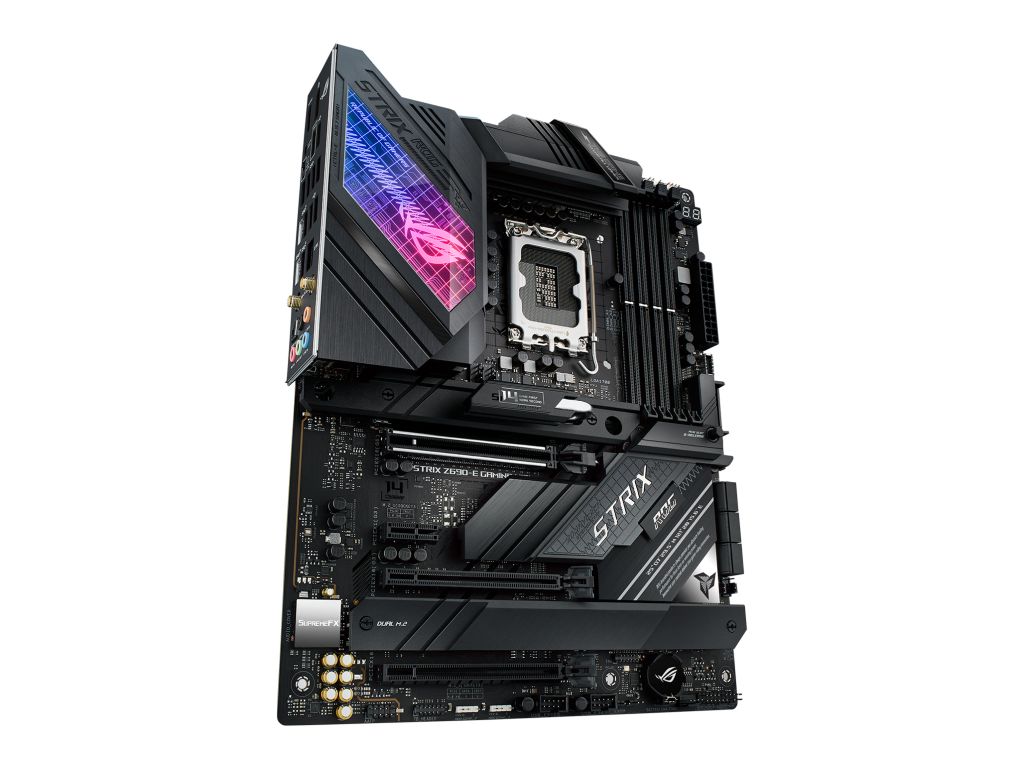

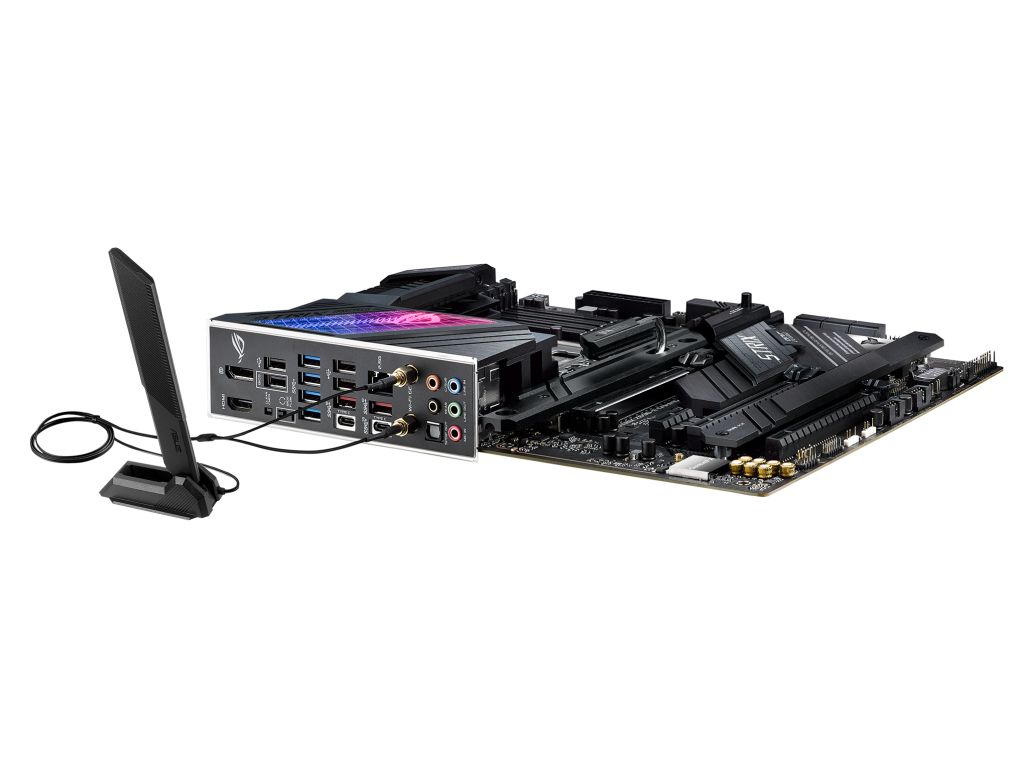

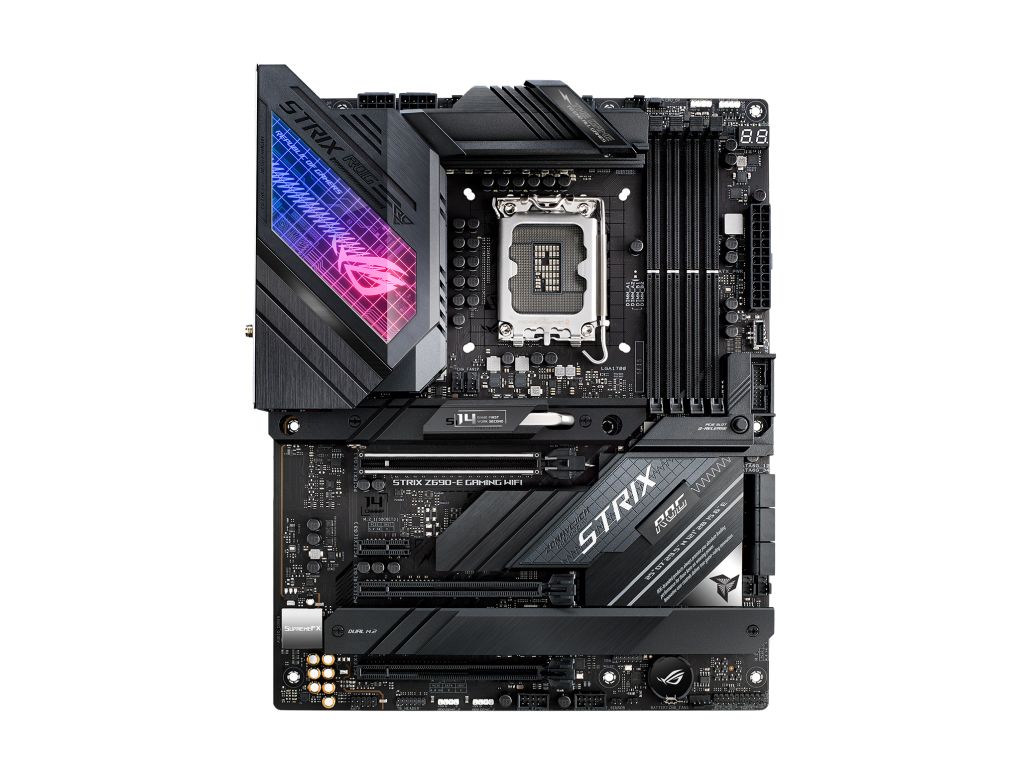

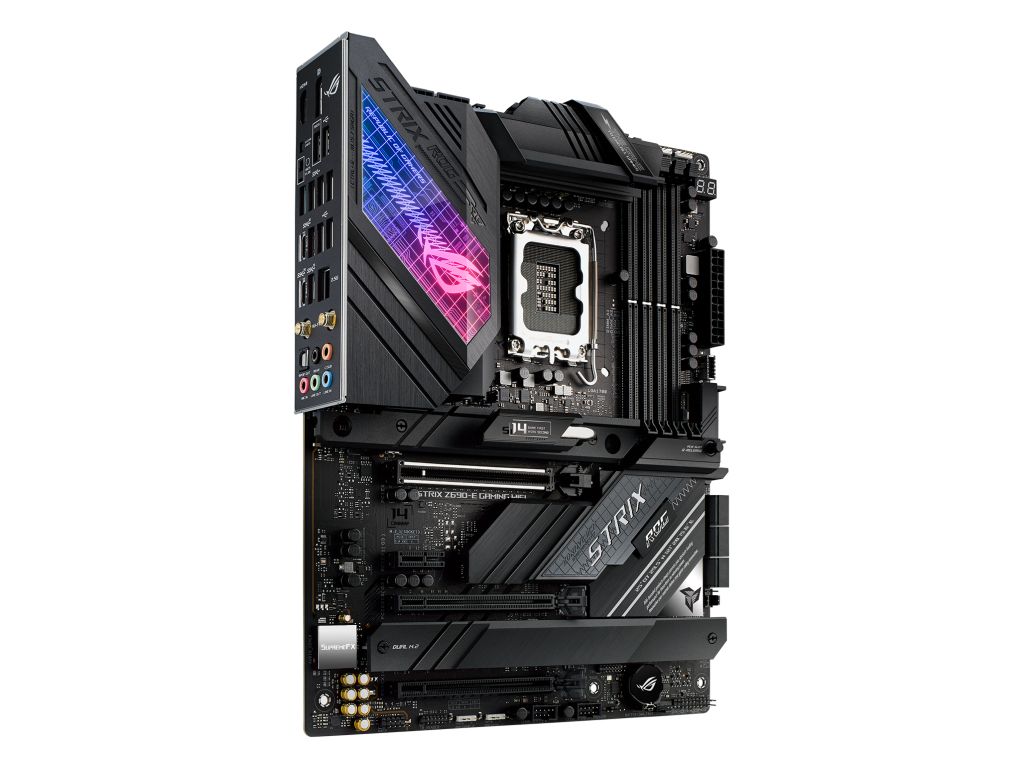

MB ASUS ROG STRIX Z690-E GAMING WIFI (Intel,1700,DDR5,ATX)
Product code: 19667723 // MPN: 90MB18J0-M0EAY0 // EAN: 4711081494638
€370,65 (inc. VAT)
8-12 business days (61 pcs available)
Similar products
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z690 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (ALC4080) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax/az |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS SafeSlot, Sonic Studio III, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, FlexKey button, ASUS ProCool II, 18+1 Phase Power Design, Savitech SV3H712 amplifier, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM, Windows 11 compatible |
| Included Accessories | Cable ties, 2 x M.2 screws, ROG VGA holder, STRIX stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch, ROG HYPER M.2 CARD |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, MyAsus |
| Width | 30.5 cm |
| Depth | 24.4 cm |
