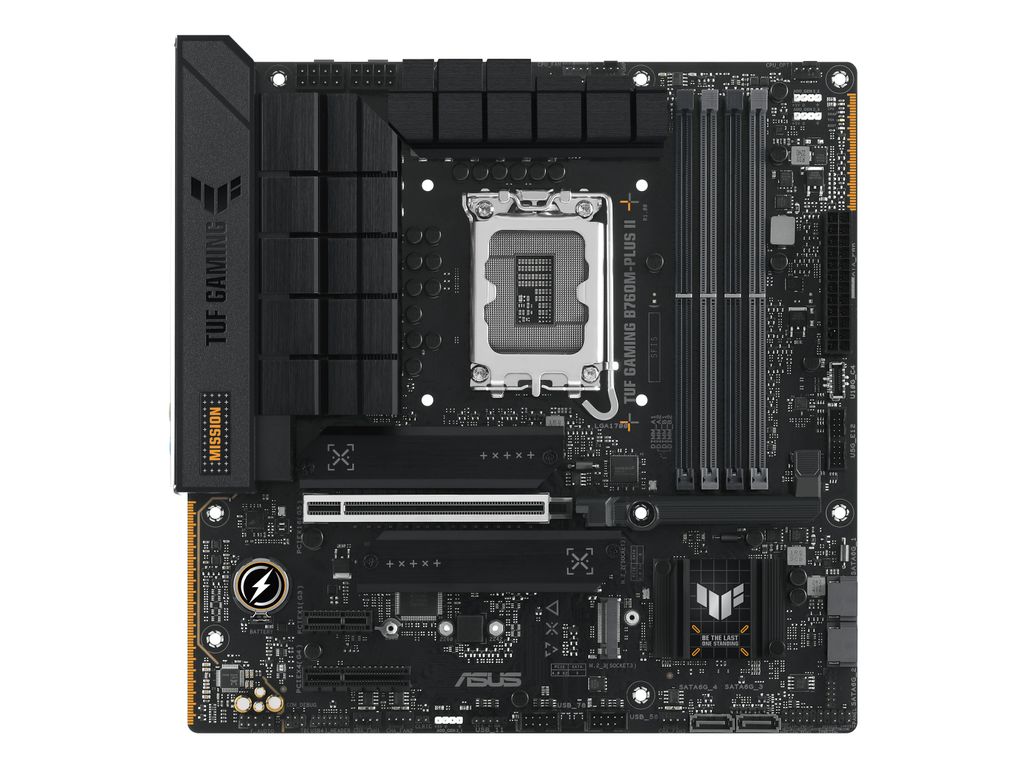

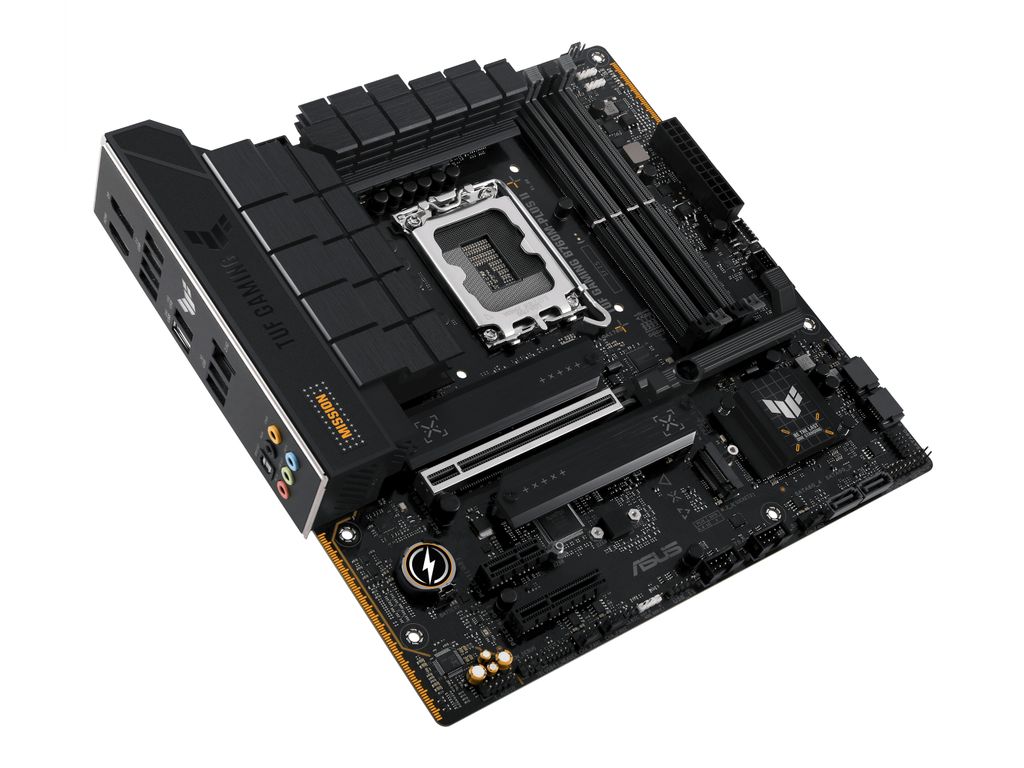

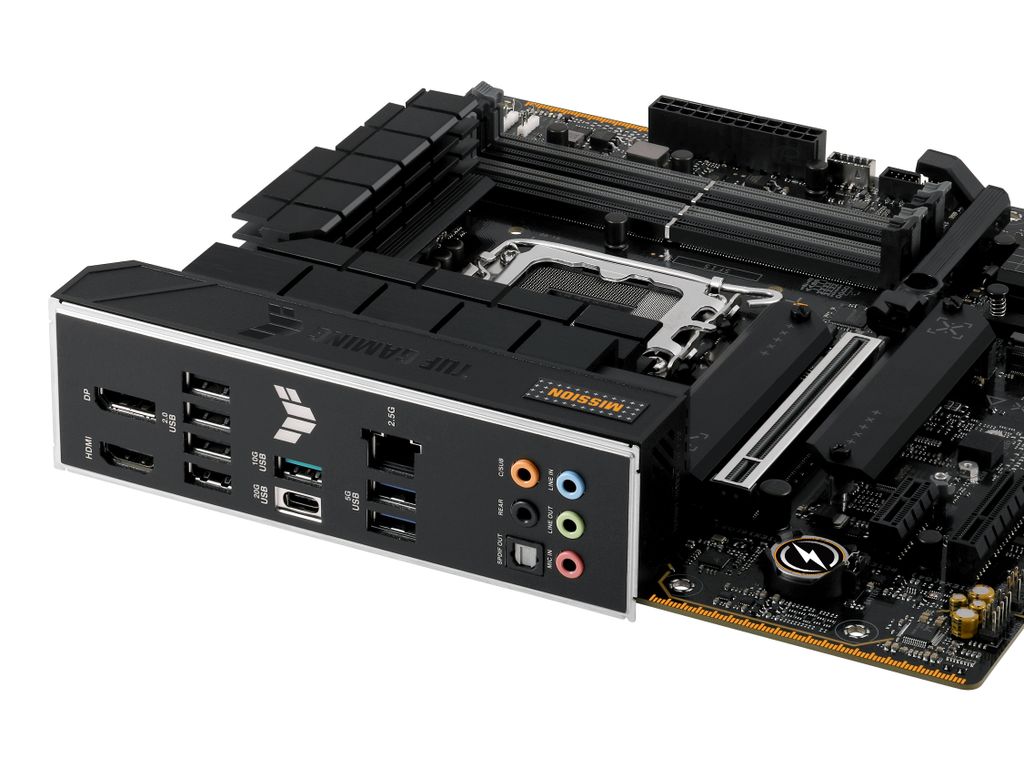

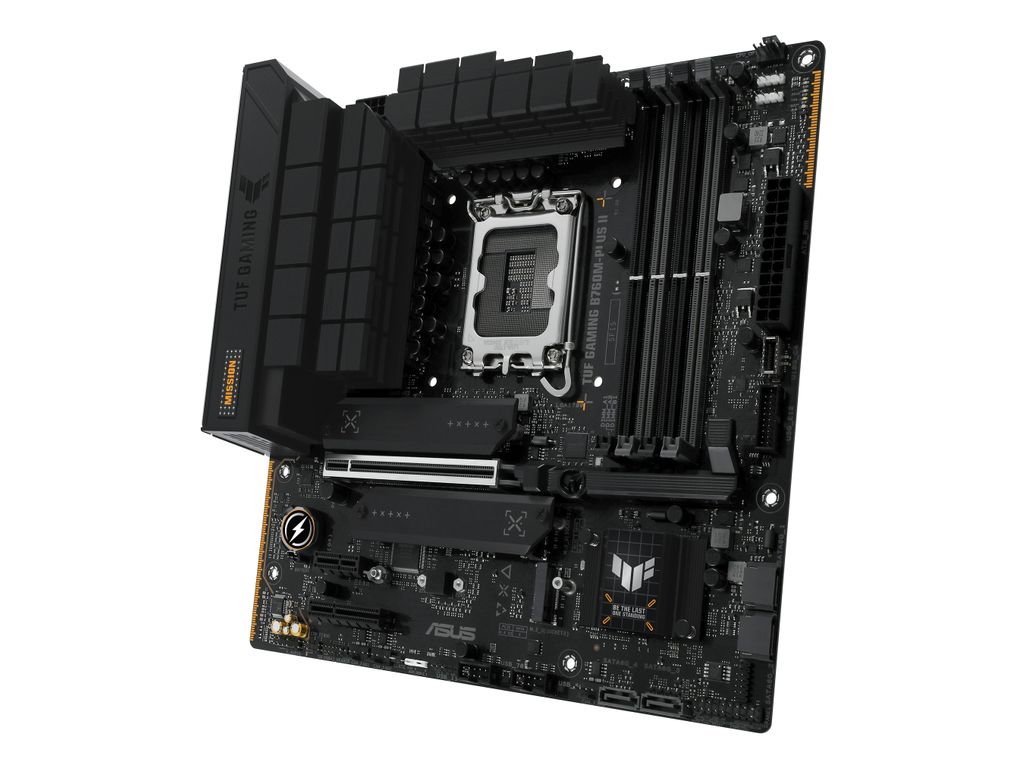

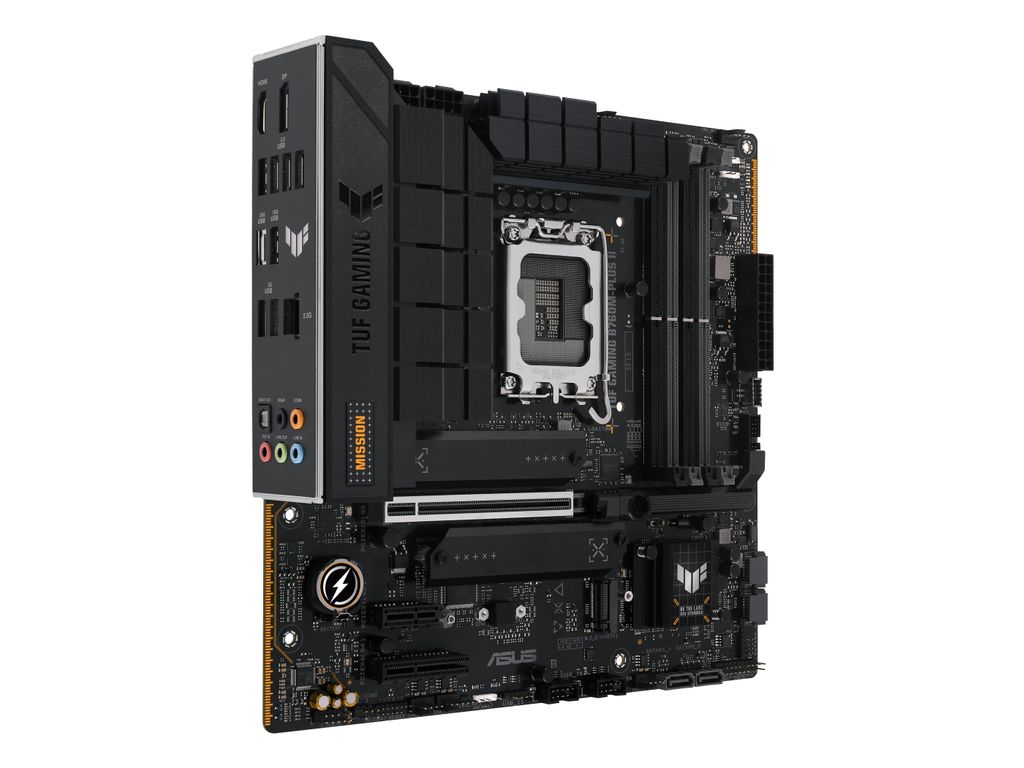

MB ASUS TUF GAMING B760M-PLUS II (Intel,1700,DDR5,mATX)
Product code: 19675423 // MPN: 90MB1HD0-M0EAY0 // EAN: 4711387469798
€218,90 (inc. VAT)
8-12 business days (185 pcs available)
Similar products
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | Digital Theater Systems (DTS), High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 1 x PCIe 3.0 x1 ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | PCIe 4.0 -connectors: 3 x M.2 ¦ SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |

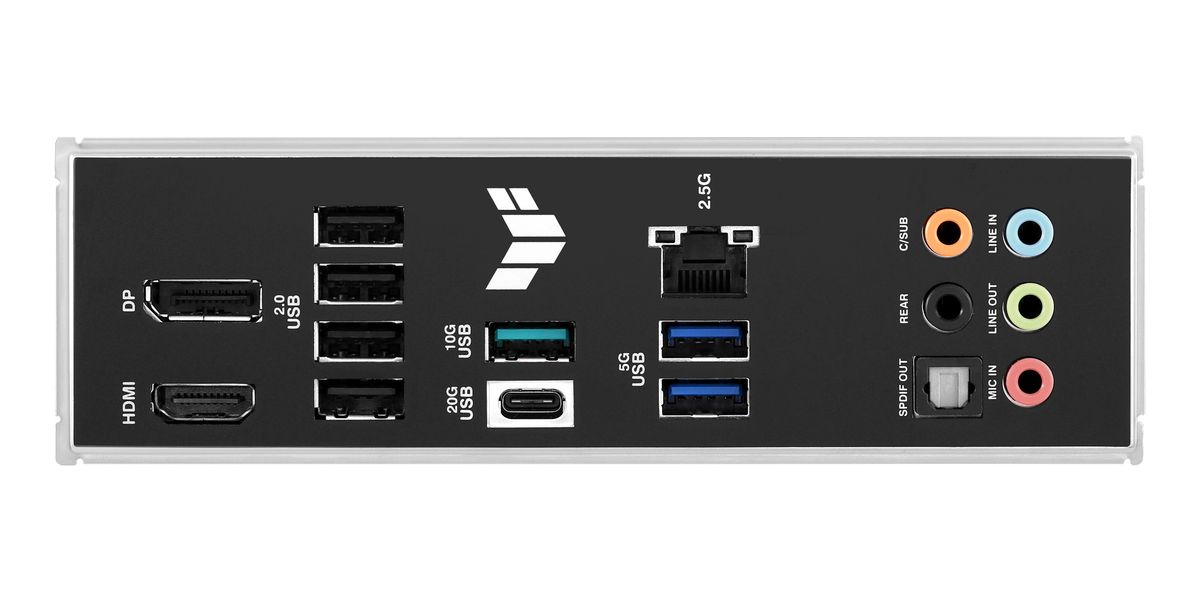

| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x SPDIF out ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out/headphones - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 5 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, 6 Layer PCB, TUF LANGuard, overvoltage protection, AURA RGB Lighting Control, M.2 heatsink, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, SafeDIMM, CPU Socket lever protector, VRM heatsink design, 12+1 DrMOS power stages, TUF Chokes military-grade, TUF 5K black metallic capacitors |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 x M.2 rubber package, 2 x M.2 SSD screw package, TUF certification card, TUF GAMING sticker |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, Armoury Crate, Norton 360 for Gamers, ASUS Fan Xpert 2+, DTS Audio Processing |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| All in one: | |
| Gaming: |
