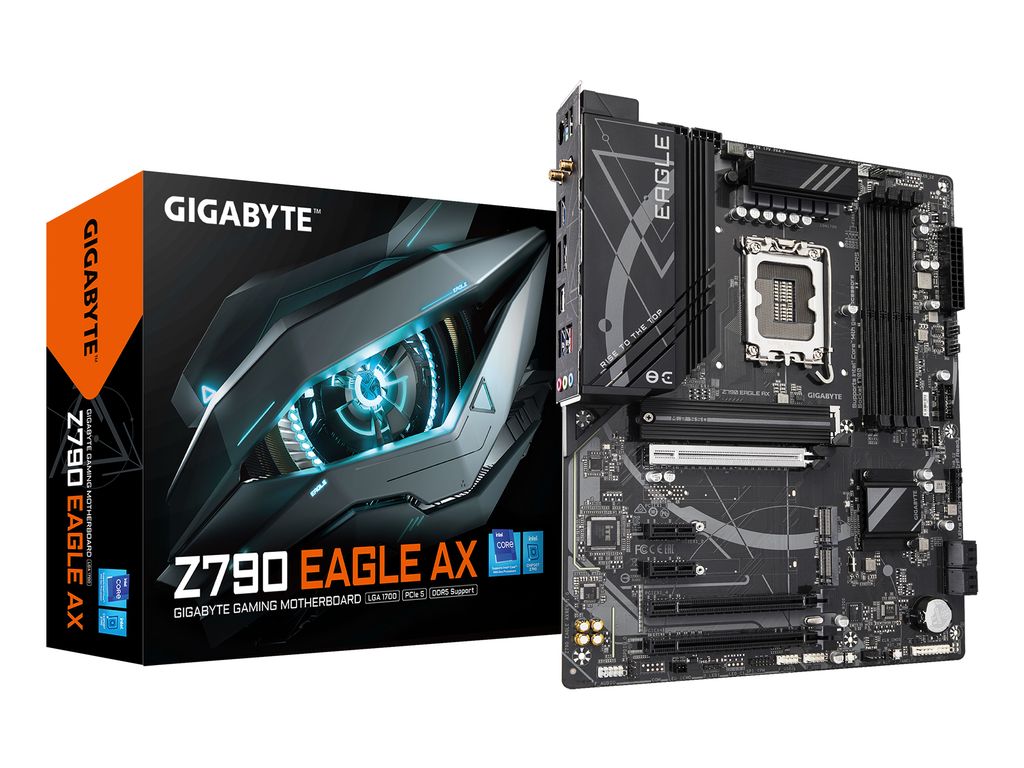

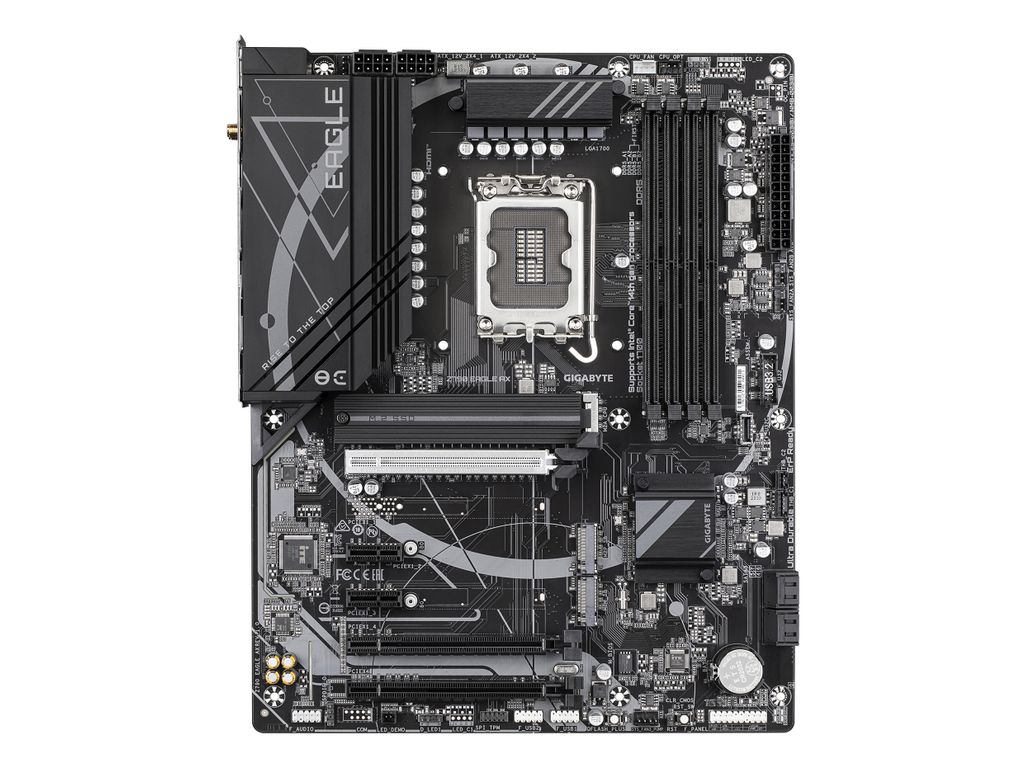

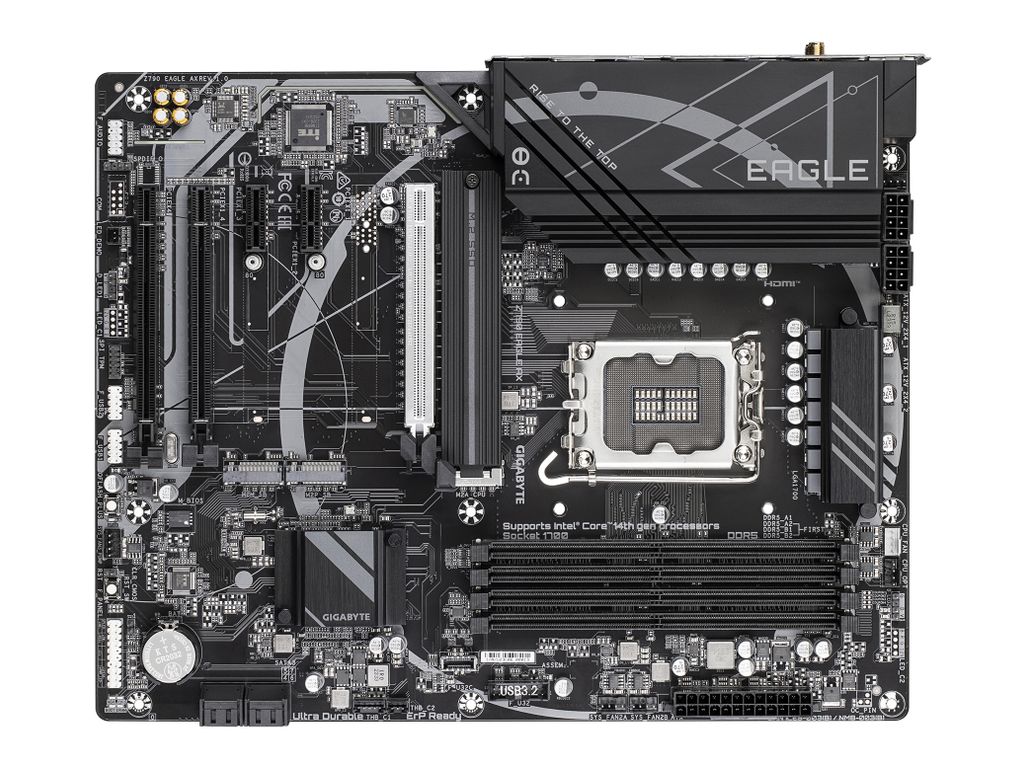

Gigabyte Z790 EAGLE AX (Z790,S1700,ATX,DDR5)
Product code: 19675823 // MPN: Z790 EAGLE AX // EAN: 4719331860998
€230,60 (inc. VAT)
8-12 business days (56 pcs available)
Similar products
New entry
ASROCK B850M Challenger WiFi DDR5 AM5 90-MXBU40-A0UAYZ retail
Code: 21633922
€160,70
Available from 4 to 10 daysSpecifications
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel AX211 |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

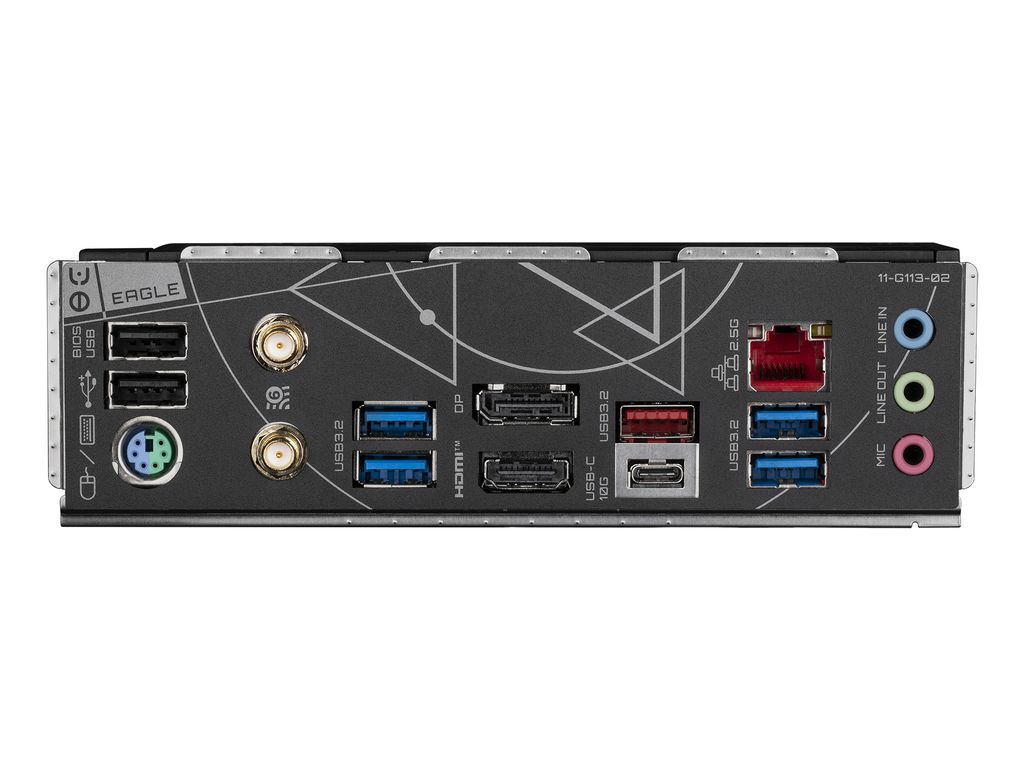

| Interfaces | 1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 2 x aerial ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 4 x USB 2.0 - header ¦ 2 x Thunderbolt - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, fan control, fan speed detection, temperature detection |
| Hardware Features | Q-Flash, Ultra Durable, 2x Copper PCB, 6 Layer PCB, Q-Flash Plus, 12+1+1 Phase Power Design, DIY Friendly Design, GIGABYTE Smart Fan 6, VRM heatsink design, M.2 heatsink backplate, M.2 Thermal Guard Ext., M.2 EZ Latch plus, PCIe EZ Latch Plus |
| Miscellaneous | Miscellaneous |
| Software Included | Realtek Gaming LAN Bandwidth Control, GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| All in one: | |
| Gaming: |
