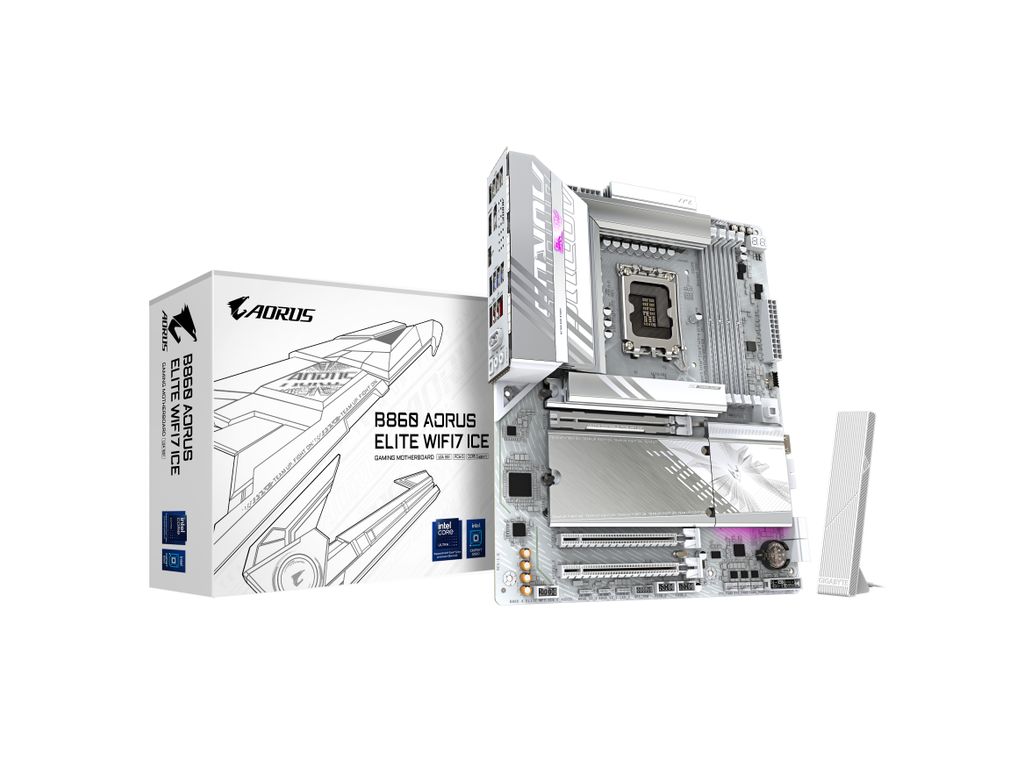

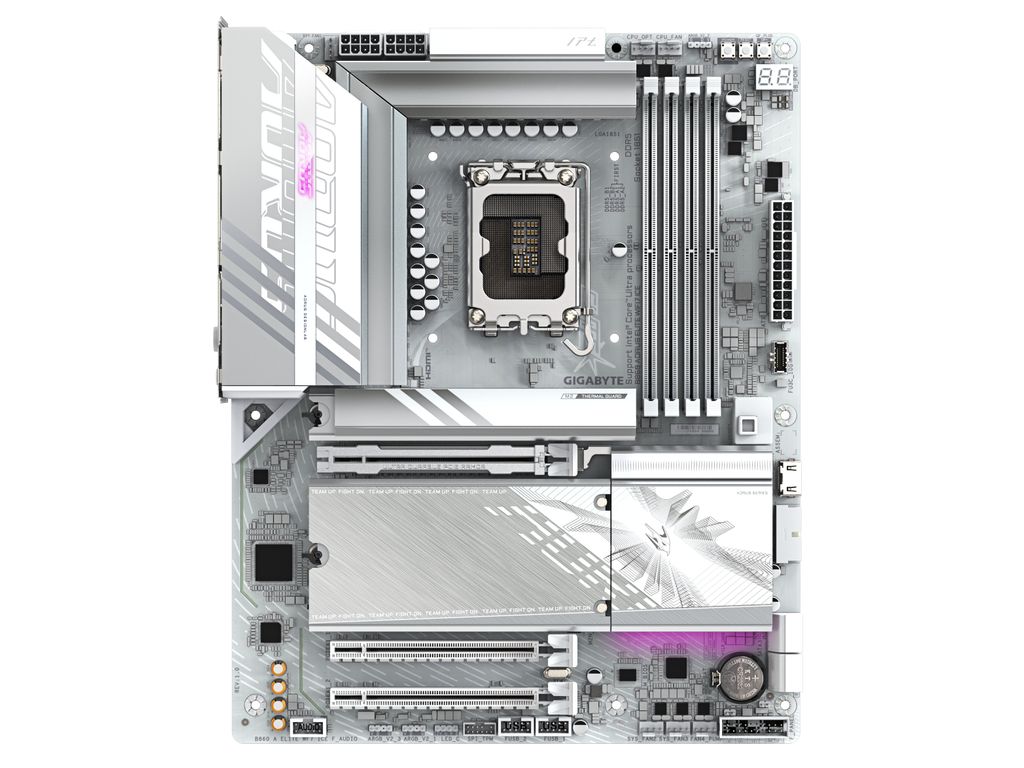

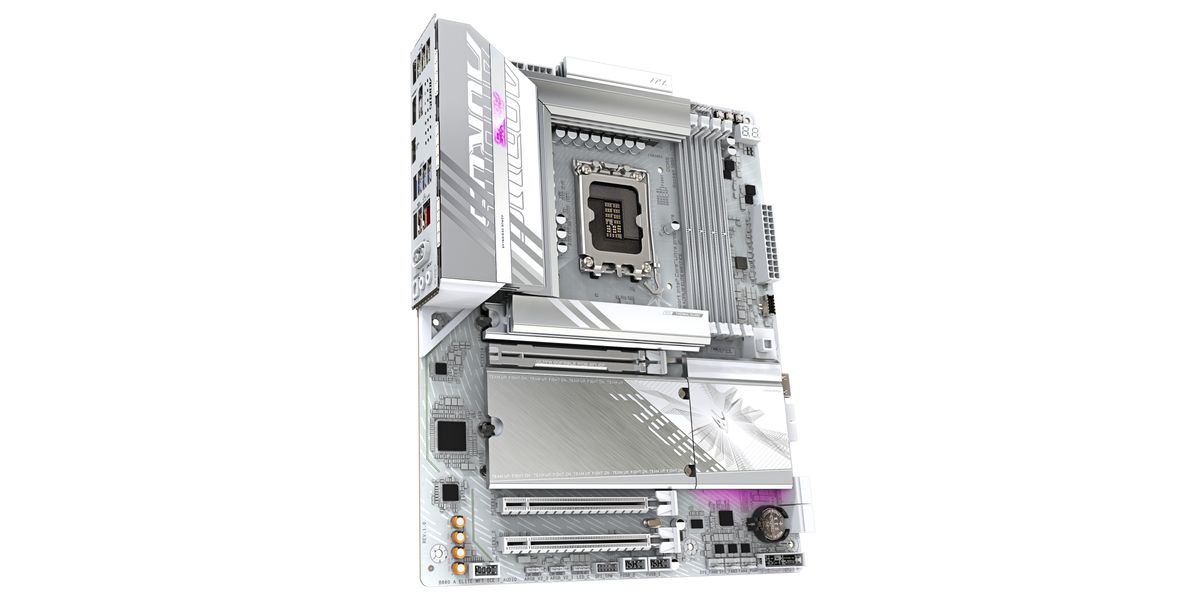

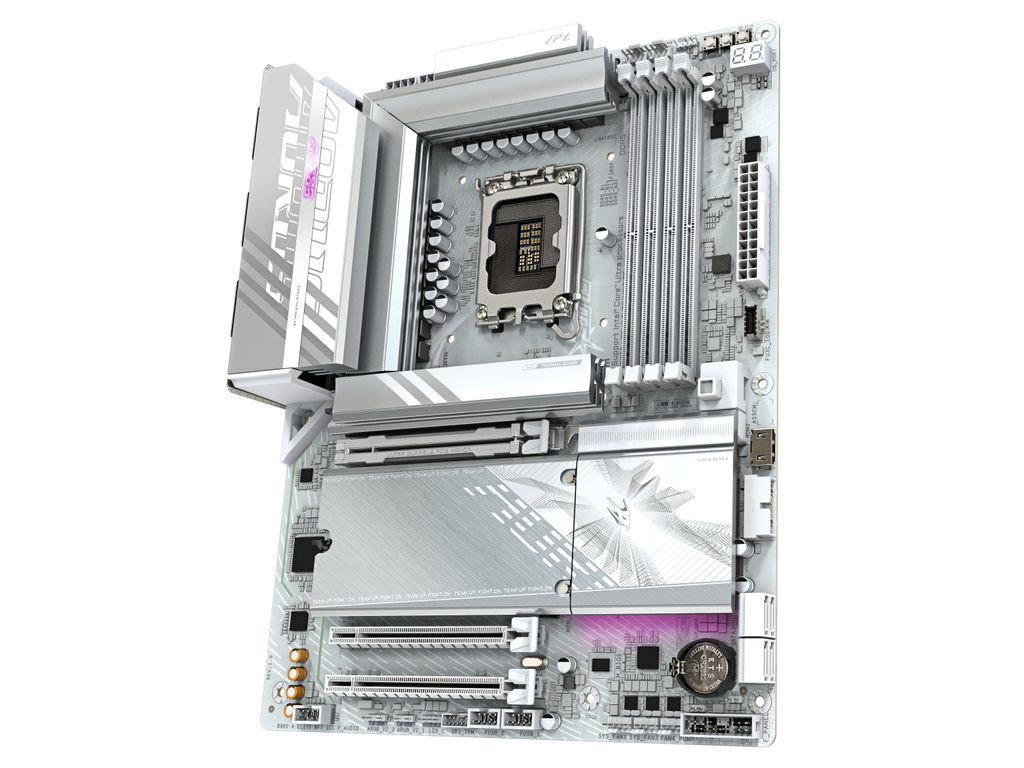

Gigabyte B860 A ELITE WF7 ICE (B860,S1851,ATX,DDR5)

Κωδικός: 19684523 // Κωδικός προμηθευτή: B860 A ELITE WF7 ICE 1.0 // EAN: 4719331866846

€198,85 (συμπ. ΦΠΑ)

4-10 εργάσιμες ημέρες (6 τεμάχια διαθέσιμα)

Προσθήκη στη wishlist

Δείτε επίσης

MSI MPG X870I EDGE Ti Evo Wifi (X870,AM5,ATX,DDR5)

Κωδικός: 19666523

€521,70

4-10 εργάσιμες ημέρες

Specifications

Product Type	Motherboard - ATX
Chipset Type	Intel B860
Processor Socket	LGA1851 Socket
Max Processors Qty	1
Compatible Processors	(supports Intel Core Ultra processors (Series 2))
Supported RAM	Supported RAM
Max Size	256 GB
Technology	DDR5
Bus Clock	4600 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2800 MHz
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered	Unbuffered
Features	Intel Extreme Memory Profiles (XMP), dual channel memory architecture
Audio	Audio
Type	HD Audio
Compliant Standards	High Definition Audio
LAN	LAN
Network Controller	Realtek RTL8922AE
Network Interfaces	Bluetooth 5.4, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x M.2 socket (2280/25110 M.2 Key M slot) 2 x PCIe 4.0 x16 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1

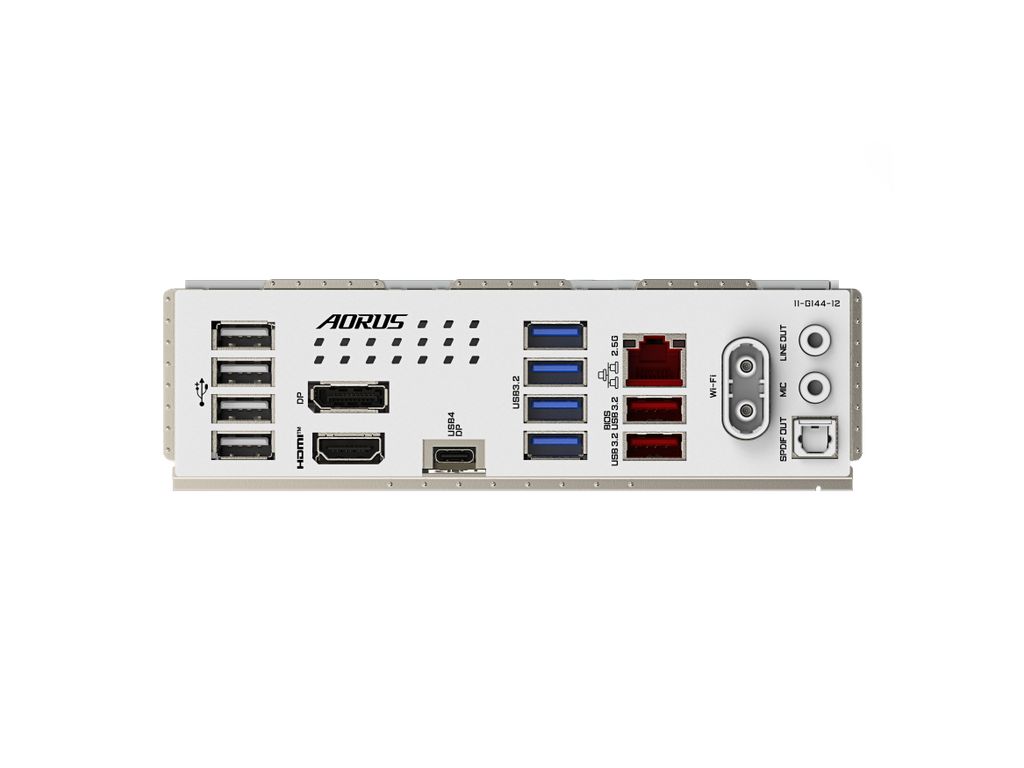

Interfaces	1 x USB4 2 x USB 3.2 Gen 2 4 x USB 2.0 1 x DisplayPort 1 x HDMI 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x SPDIF out 4 x USB 3.2 Gen 1
Internal Interfaces	1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x speaker - header 1 x audio - header 1 x SPI - header
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors
Features	Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring	Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control
Hardware Features	14+1+2 Phase Power Design, DIY Friendly Design, 6 Layer PCB, 2x Copper PCB, GIGABYTE Smart Fan 6, M.2 EZ Latch, EZ Debug LED, M.2 EZ Latch plus, M.2 EZ Latch click, RGB FUSION
Miscellaneous	Miscellaneous
Included Accessories	Wi-Fi aerial, 2 x fan extension power cables, thermal pad for M.2 SSD, 1 x M.2 screw, computer case screws
Cables Included	2 x Serial ATA cable
Software Included	Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center
Width	30.5 cm
Depth	24.4 cm
