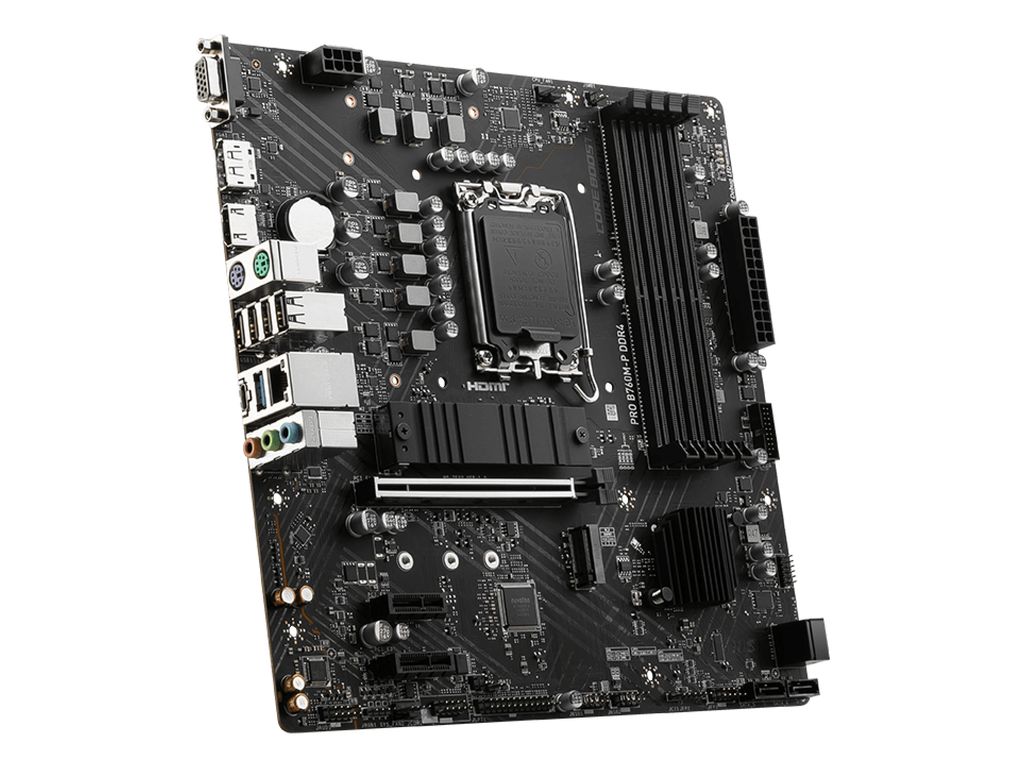

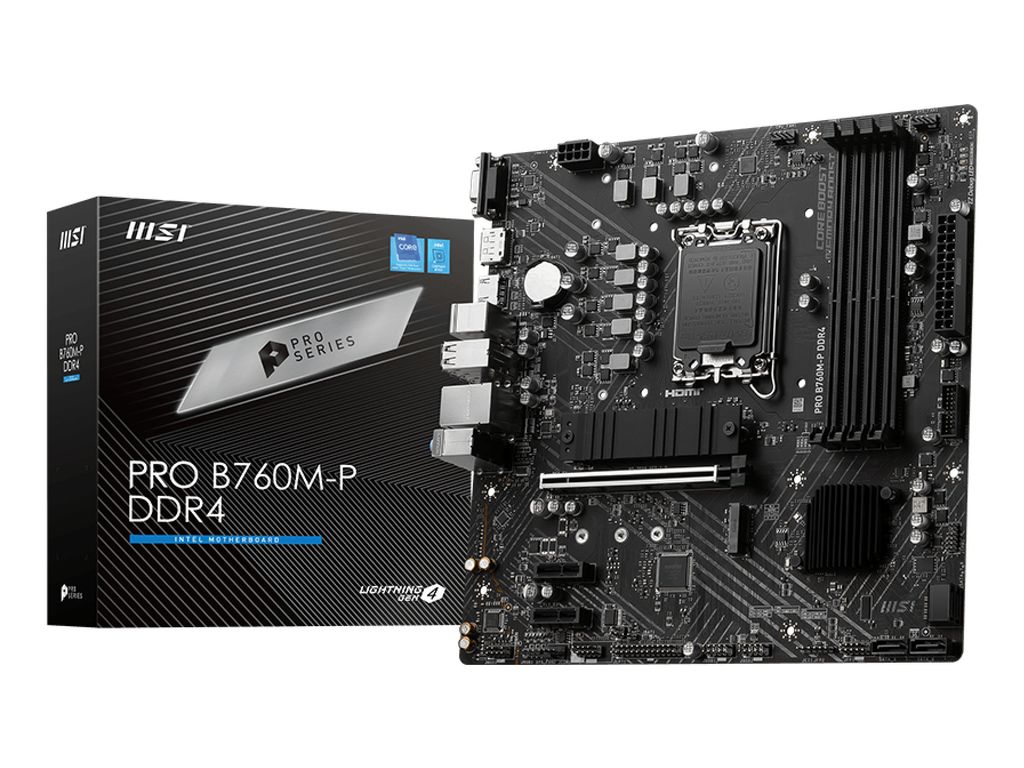

MSI PRO B760M-P DDR4 (B760,S1700,mATX,DDR4)
Product code: 19670823 // MPN: 7E02-001R // EAN: 4711377030991
€111,90 (inc. VAT)
8-12 business days (2 pcs available)
Similar products
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |

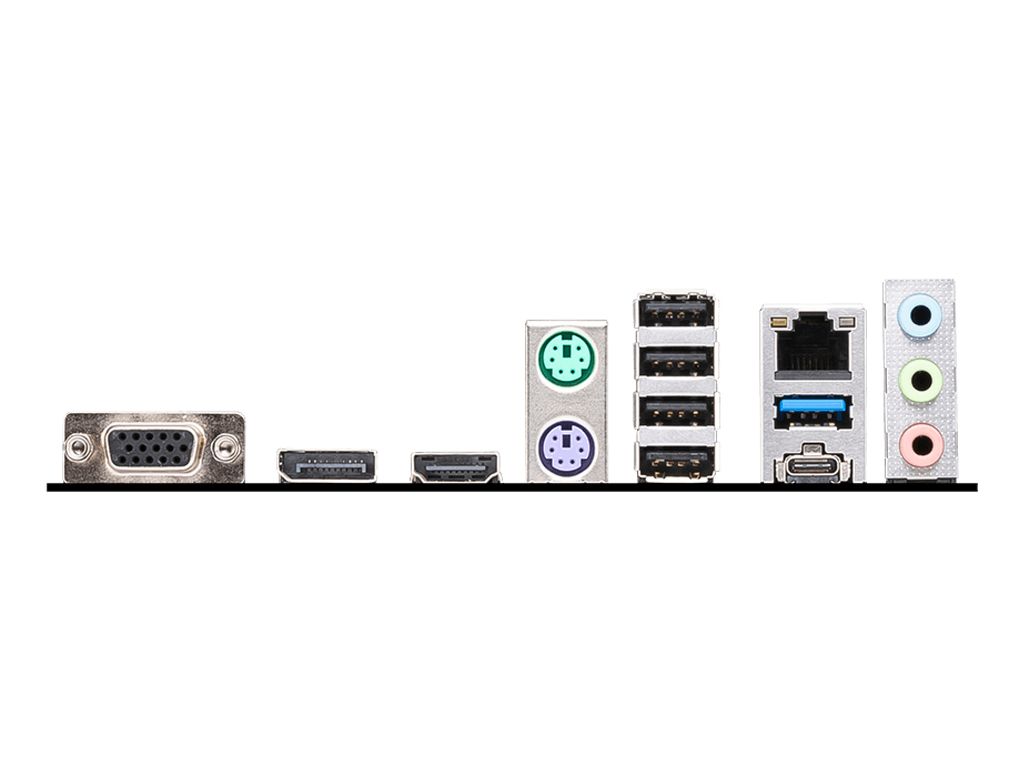

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x USB 2.0 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Features | M-Flash, MSI ClickBIOS 5 |
| Hardware Features | MSI Audio Boost, Debug LED, MSI Steel Armor, M.2 Shield FROZR, MSI Core Boost, MSI Memory Boost |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, 2 x M.2 screw / standoff sets |
| Cables Included | 1 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial), MSI Center |
| Compliant Standards | WEEE, FCC Part 15 Class B, DisplayPort 1.4 |
| Width | 24.384 cm |
| Depth | 24.384 cm |
| All in one: | |
| Gaming: |
