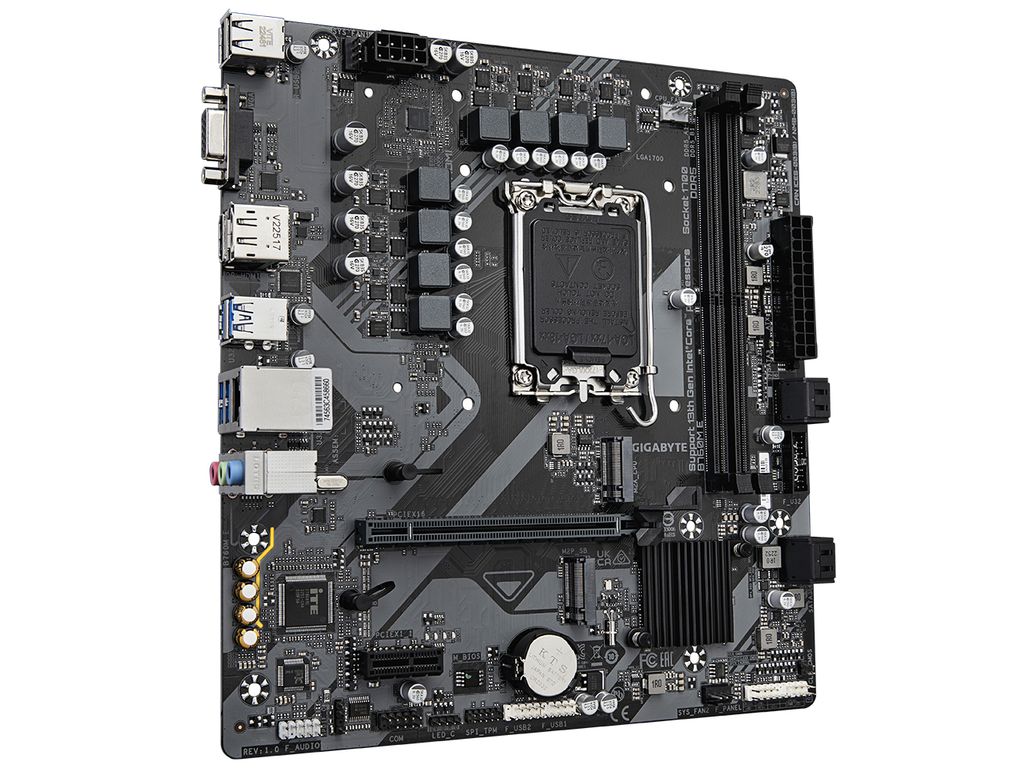

Gigabyte B760M E (B760,S1700,mATX,DDR5)
Product code: 19688023 // MPN: B760M E // EAN: 4719331856052
€109,81 (inc. VAT)
8-12 business days (28 pcs available)
Similar products
Specifications
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2700 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz, 2000 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Supported ECC modules operate in non-ECC mode, dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |

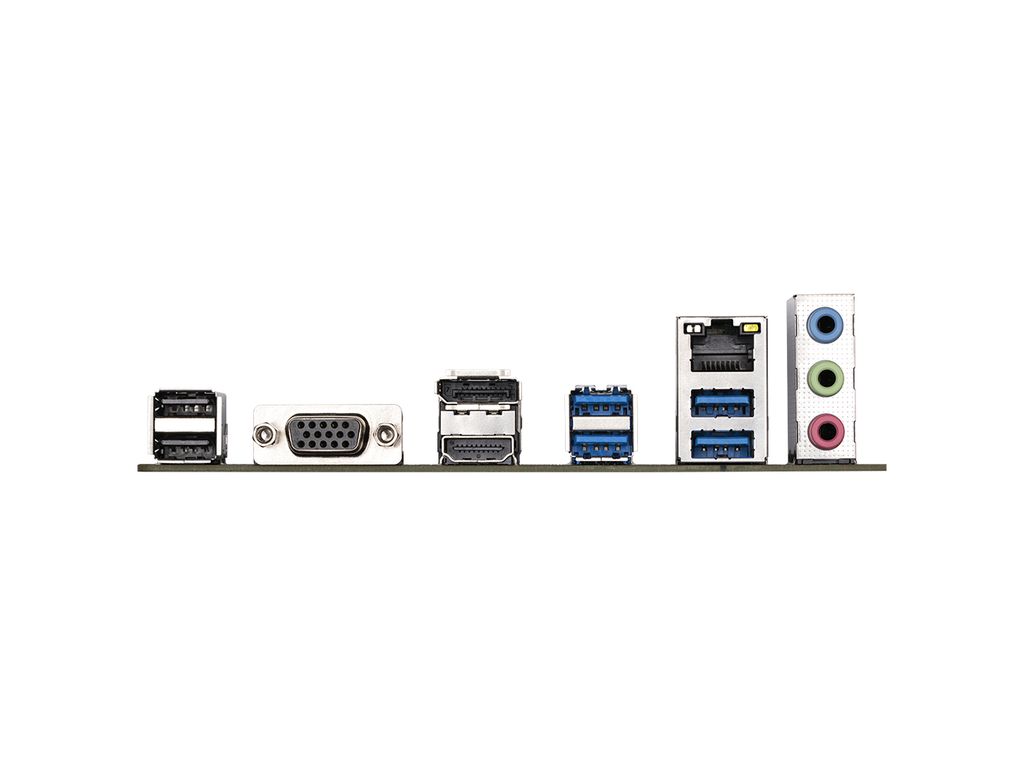

| Interfaces | 1 x LAN (Gigabit Ethernet) 1 x DisplayPort 1 x VGA 1 x HDMI 2 x USB 2.0 4 x USB 3.2 Gen 1 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x SPI - header 1 x serial - header 1 x SPDIF out - header |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, chassis temperature, fan control, fan speed detection, fan fail warning, temperature detection, water cooling flow rate |
| Hardware Features | Q-Flash, 6+1+1 Phase Power Design, PCIe EZ Latch, GIGABYTE Smart Fan 6, Ultra Durable, chipset heatsink, VRM heatsink design, GIGABYTE PerfDrive, Audio Noise Guard, DIY Friendly Design |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center |
| Compliant Standards | HDCP 2.3, DisplayPort 2.1 |
| Width | 23 cm |
| Depth | 21.5 cm |
| All in one: | |
| Gaming: |
