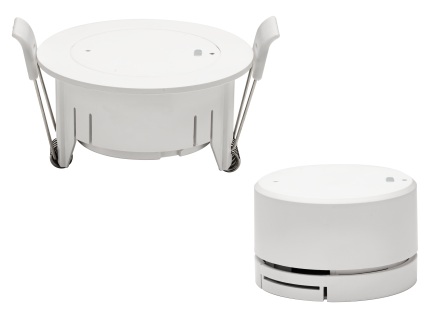

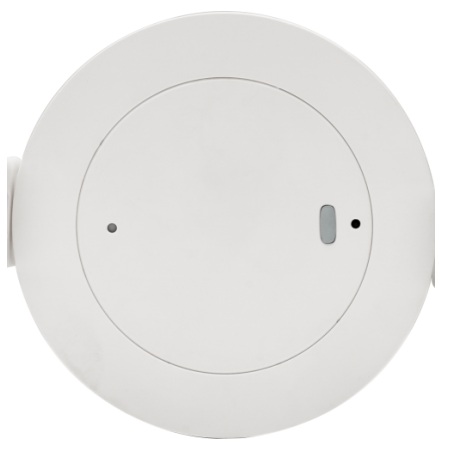

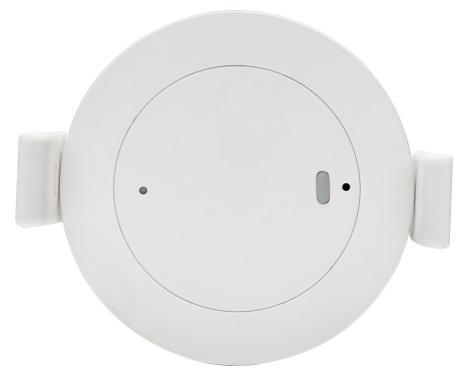

HDL Sensor Occupancy Recess/Surface Mount MSMW24-KT.11

Product code: 19849120 // MPN: MSMW24-KT.11

€92,16 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

Sonoff Zigbee Smart Wall Mechanical Switch 1-Button White

Code: 20644720

€18,23

Available from 1 to 3 days

Human presence detection: 24GHz millimeter wave radar technology, accurate and high sensitivity for detecting human motion and breath
Illuminance monitoring: Real time illuminance can be detected by the device, providing smart scene control in accordance with actual illuminance
Temperature monitoring: Built-in temperature sensor for monitoring real-time environment status
Dry contact input: Supports 2 dry contact inputs for logical judgment.
Easy lighting control: supports controlling 1 lighting device, supports automatic and semi-automatic control, and controls switches based on environmental illumination
Easy HVAC control: Supports controlling 1 HVAC device, with HVAC on/off delay function
Constant brightness control: Supports one constant brightness automatic adjustment function module, which automatically senses environmental brightness and adjusts dimming values
2 working modes: Single mode and master/slave mode. One master sensor can have 15 slave sensors, providing wide range of detection
Logic settings: 5 independent logic modules, each of which can control 10 targets, including switches, dimming, alarm devices, etc
Logical input conditions: human body detection status, illuminance value, temperature value, dry contact input, external message, threshold comparator
3 logical relations: AND, OR, XOR
Control types: switch control, absolute dimming control, curtain control, alarm control, percentage control, sequence control, scene control, string (14 byte) control, threshold control and logical combination control
External messages can alter the validity of logic
Support KNX Data Secure

Rated voltage : 30V DC
Rated current : 50mA/30V DC
Input voltage : 21 - 30V DC
Dry contact : 2 dry contacts
Communication protocol : KNX
Cable diameter of KNX terminal : 0.6 - 0.8mm
Detection frequency for micro motion : 24GHz-24.25GHz
Detection range for micro motion (radius) : 0.5-4m, adjustable (Note: Installation height is 3m.)
Detection range for illuminance : 0-1200Lux
Detection range for temperature : -20°C-60C°
Working temperature : -5℃-45℃
Working relative humidity : ≤90%RH, non-condensed
Storage temperature : -20℃-60℃
Storage relative humidity : ≤93%RH
Dimensions of installation for surface-mounted : Φ66 x 34.6mm (Opening size: Φ60mm)
Dimensions of installation for flush-mounted : Φ48.5 x 27.5mm
Installation height (recommended) : 2.5-3.5m
