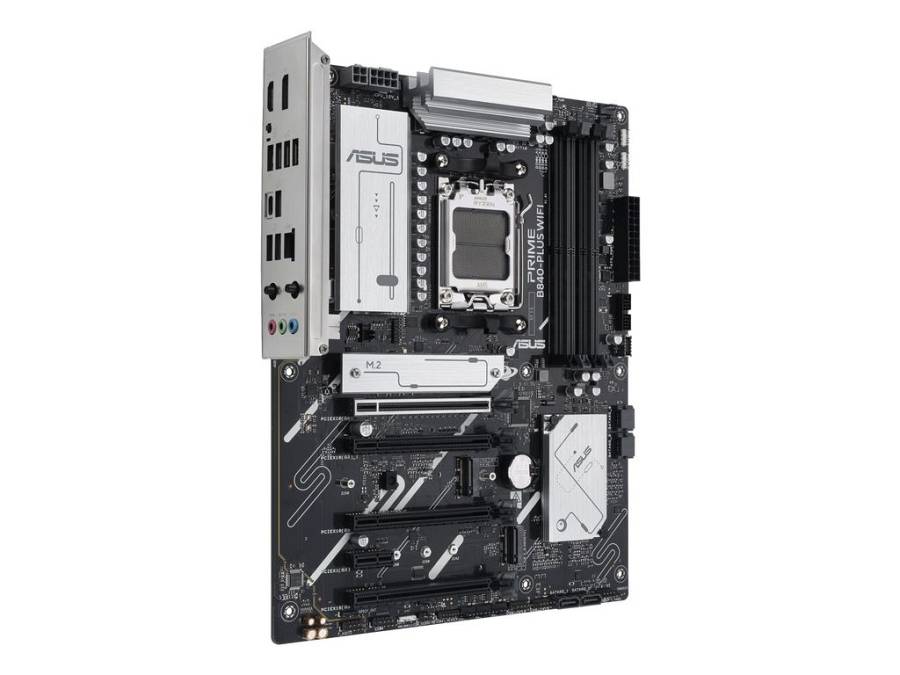

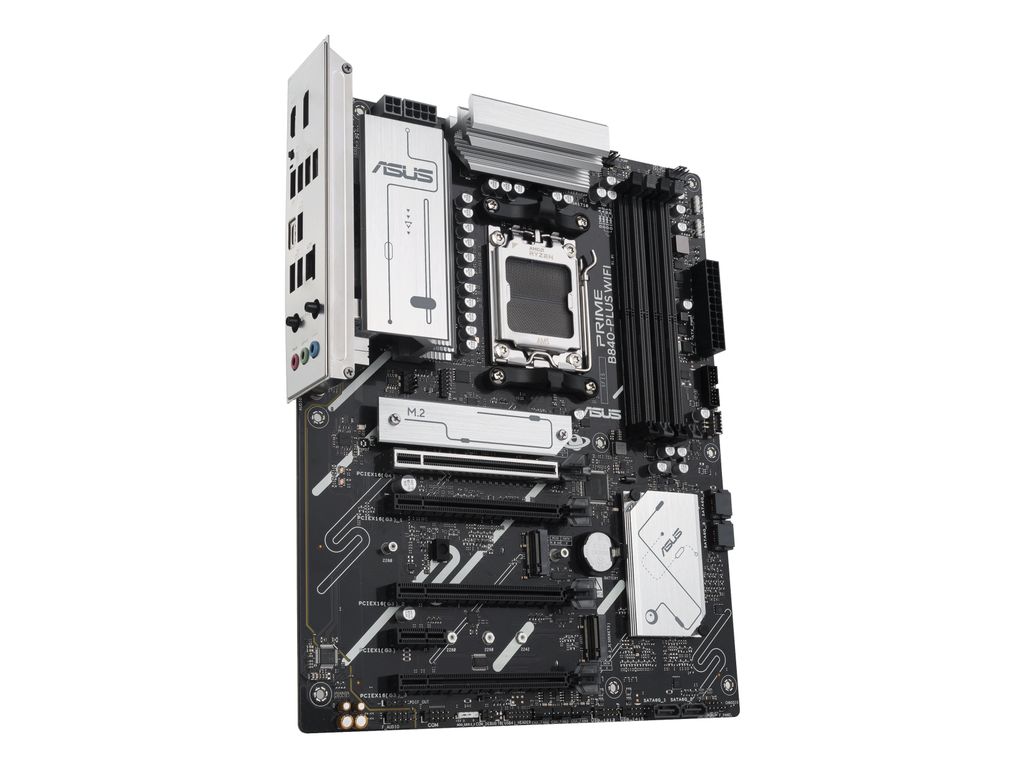

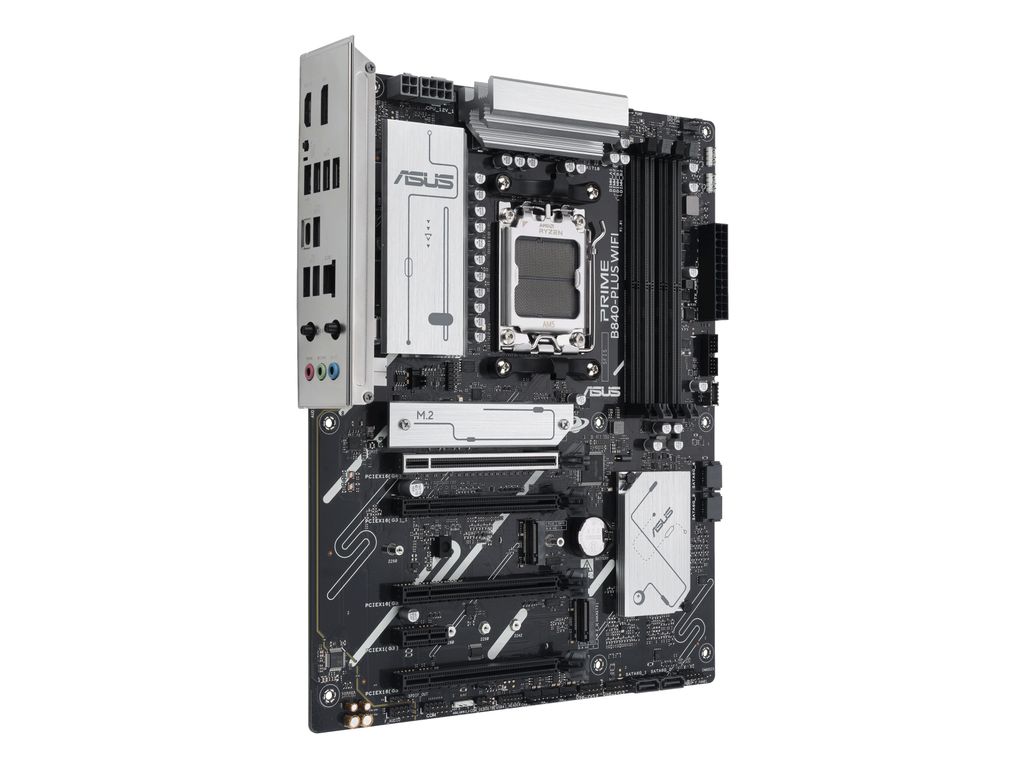

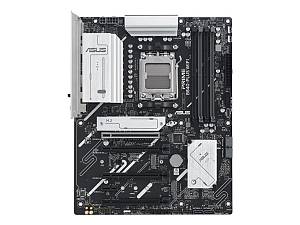

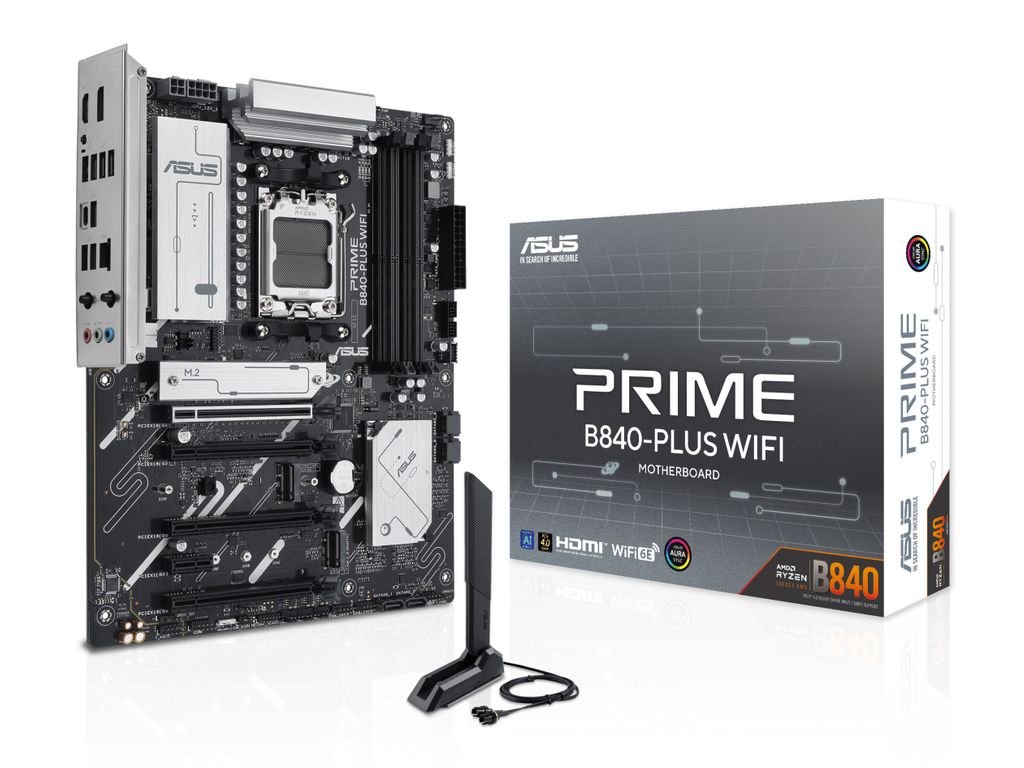

MB ASUS PRIME B840-PLUS WIFI (AMD,AM5,DDR5,ATX)
Product code: 19850123 // MPN: 90MB1IZ0-M0EAY0 // EAN: 4711387797273
New entry
€297,15 (inc. VAT)
8-12 business days (175 pcs available)
Similar products
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B840 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| [Supported RAM] | |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 3800 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, dual channel memory architecture |
| [Audio] | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| [LAN] | |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| [Expansion / Connectivity] | |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen 2 4 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x PS/2 keyboard / mouse 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 2 x USB 3.1 Gen 1 1 x USB-C 3.1 Gen 2 |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x SPDIF out - header 1 x speaker - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| [Features] | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Preboot eXecution Environment (PXE), ASUS EZ DIY, ASUS DIGI+ VRM, CrashFree BIOS 3, ASUS OptiMem II, ASUS 5X Protection III, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Aura Sync, Lighting Control, ASUS Control Center Express (ACC Express), 6 Layer PCB, ASUS Enhanced Memory Profile (AEMP) |
| [Miscellaneous] | |

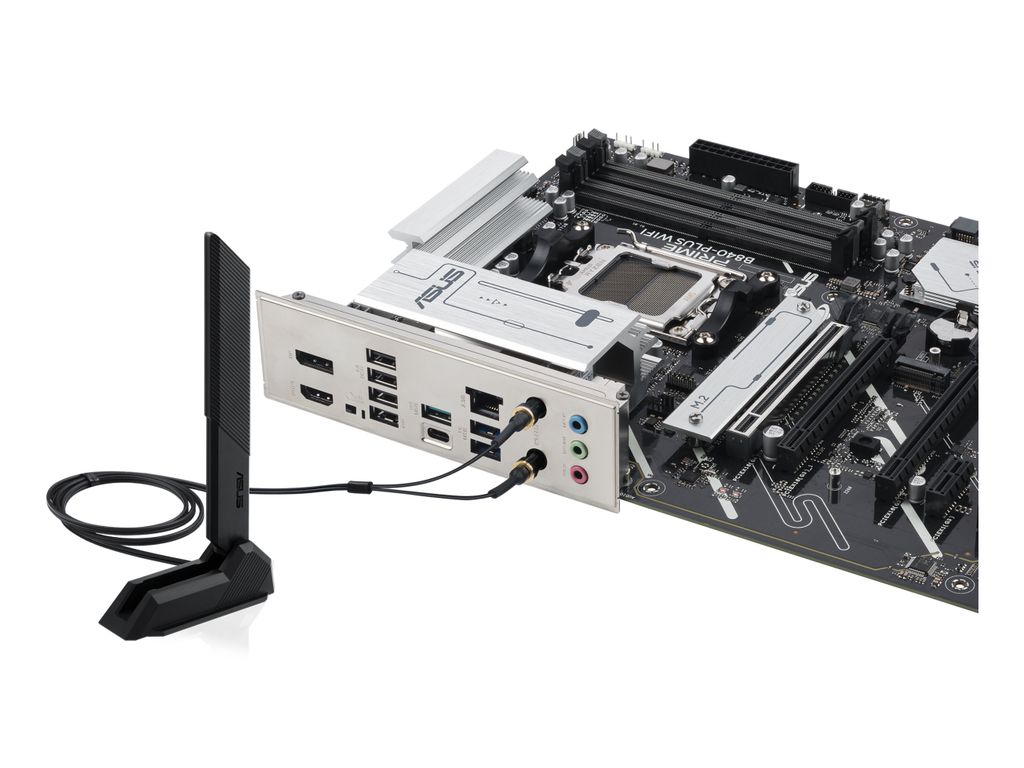

| Included Accessories | 3 x M.2 SSD screw package, IO shield, ASUS Wi-Fi Q-antenna |
| Cables Included | 2 x Serial ATA cable |
| Software Included | WinRAR, Norton 360 for Gamers (60 days trial), ASUS CPU-Z, PC Cleaner, ASUS TurboV EVO Utility, ASUS AI Suite III, ASUS Fan Xpert 2+, ASUS AURA Creator, Armoury Crate, Adobe Creative Cloud (free trial), WinRAR (40 days trial) |
| Width | 30.5 cm |
| Depth | 24.4 cm |
