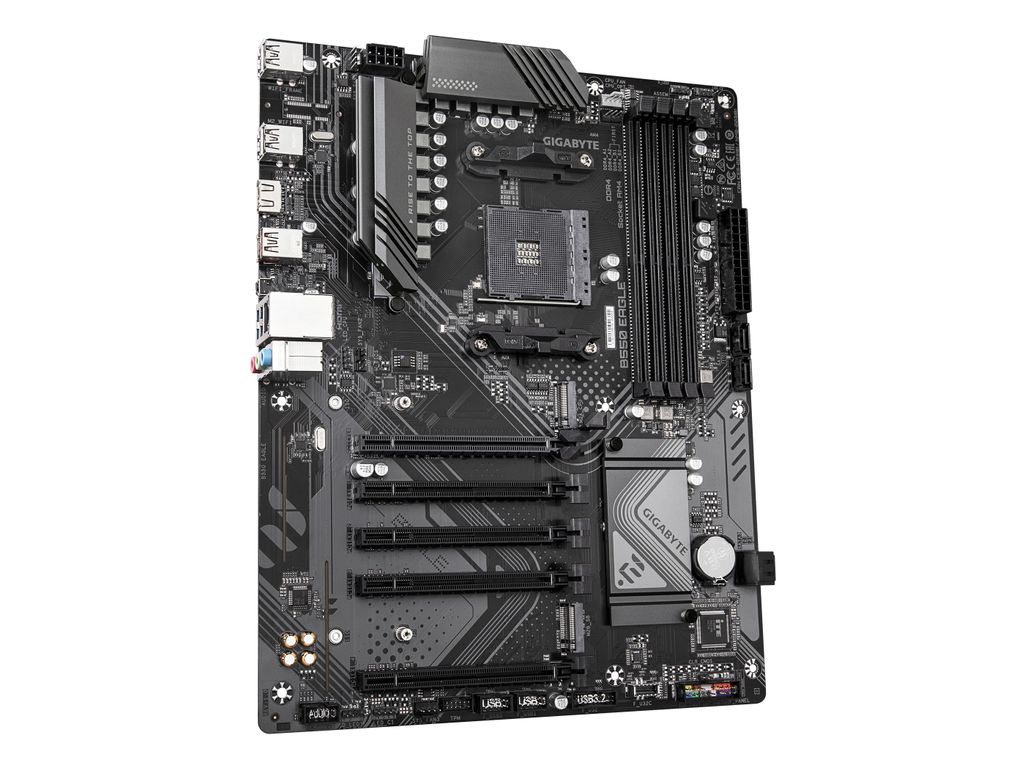

Gigabyte B550 EAGLE (B550,AM4,ATX,DDR4)

Κωδικός: 19883323 // Κωδικός προμηθευτή: B550 EAGLE // EAN: 4719331868208

€126,20 (συμπ. ΦΠΑ)

4-10 εργάσιμες ημέρες (19 τεμάχια διαθέσιμα)

Προσθήκη στη wishlist

Δείτε επίσης

Gigabyte Z890I AORUS ULTRA (Z890,S1851,mITX,DDR5)

Κωδικός: 19681223

€319,30

4-10 εργάσιμες ημέρες

Specifications

Product Type	Motherboard - ATX
Chipset Type	AMD B550
Processor Socket	Socket AM4
Max Processors Qty	1
Compatible Processors	Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Supported RAM	Supported RAM
Max Size	128 GB
Technology	DDR4
Bus Clock	1600 MHz, 1467 MHz, 1333 MHz, 1200 MHz, 1067 MHz
Supported RAM Integrity Check	Non-ECC, ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio	Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN	LAN
Network Controller	Realtek RTL8851BE
Network Interfaces	Gigabit Ethernet
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 4 x PCIe 4.0 x1 2 x M.2 socket (22110/2280)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

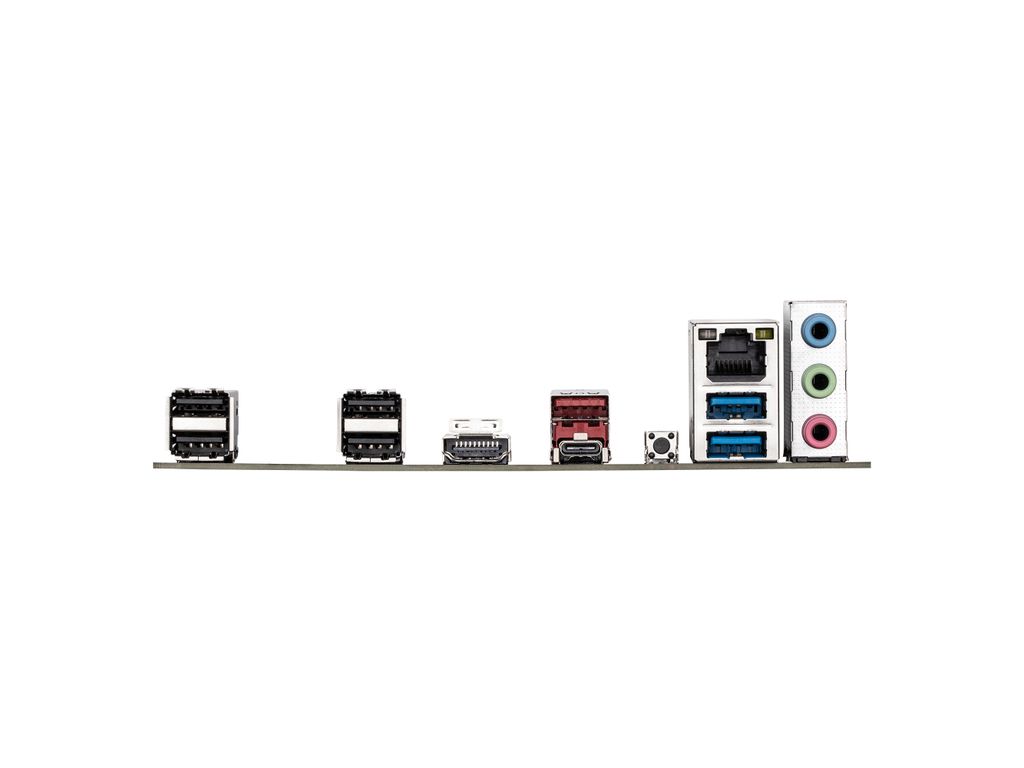

Interfaces	1 x HDMI 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 4 x USB 2.0 1 x USB-C 3.2 Gen 1 LAN (Gigabit Ethernet)
Internal Interfaces	1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Features	Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring	Fan fail warning, fan control, system voltage, temperature detection, water cooling flow rate, fan speed detection
Hardware Features	10+3+1 Phase Power Design, 4 Layer PCB, Server-Grade Mid-Loss PCB, EZ Plug, M.2 EZ Latch, GIGABYTE Smart Fan 6, RGB FUSION, DIY Friendly Design
Miscellaneous	Miscellaneous
Included Accessories	M.2 screw package, rubber pad, IO shield
Cables Included	2 x SATA Express cable
Software Included	GIGABYTE Control Center, Norton Internet Security (OEM Version), LAN manager
Width	30.5 cm
Depth	24.4 cm
