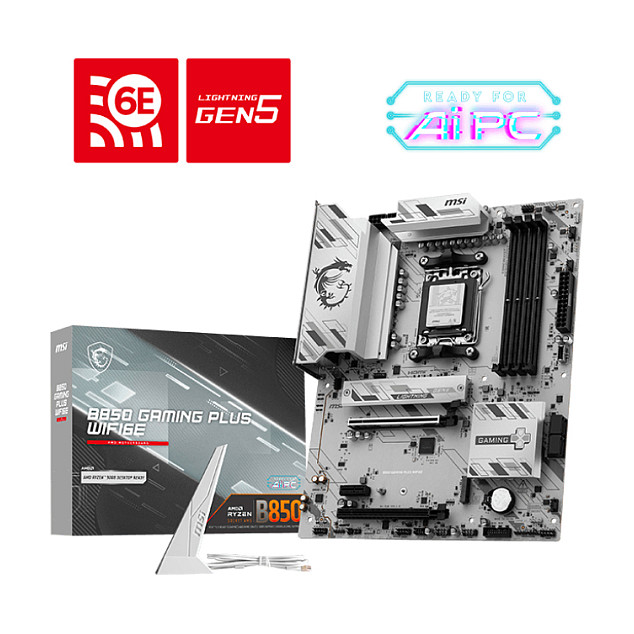

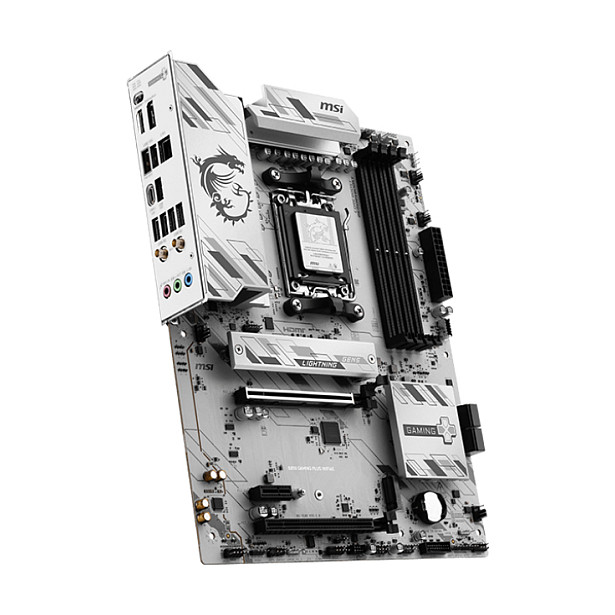

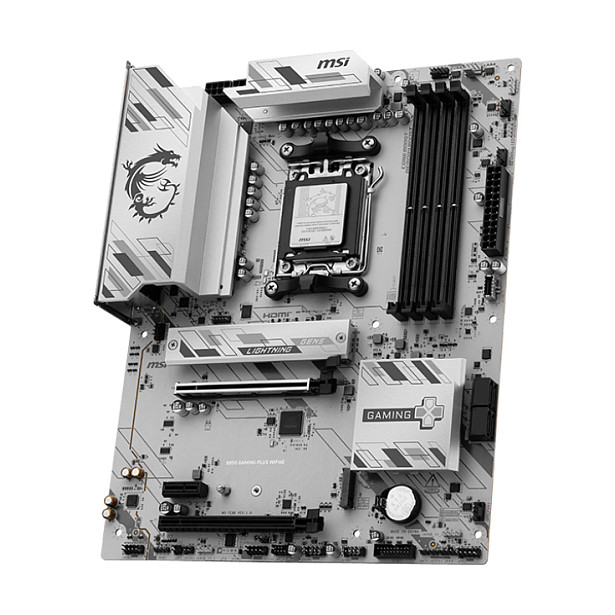

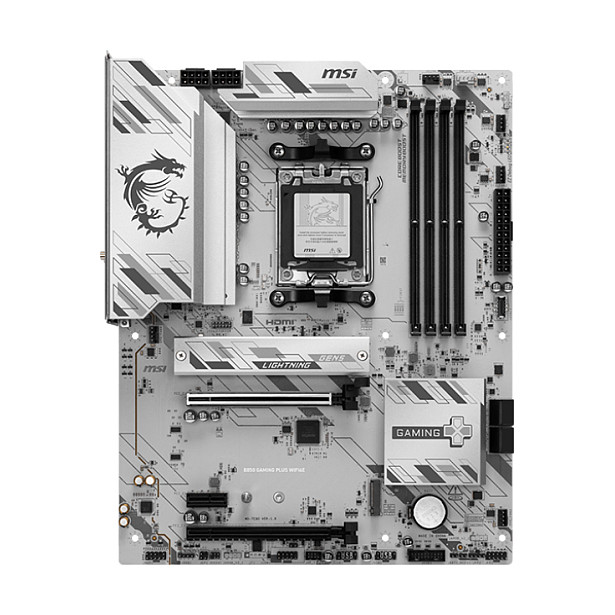

AM5 MSI B850 GAMING PLUS WIFI6E
Product code: 20457422 // MPN: 7E80-001R // EAN: 4711377365321
New entry
€196,50 (inc. VAT)
Available from 4 to 10 days (40 pcs available)
Similar products
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MT/s, 5600 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6400 MT/s (O.C.), 8200 MT/s (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8125D |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2280/22110 M.2 Key M slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |

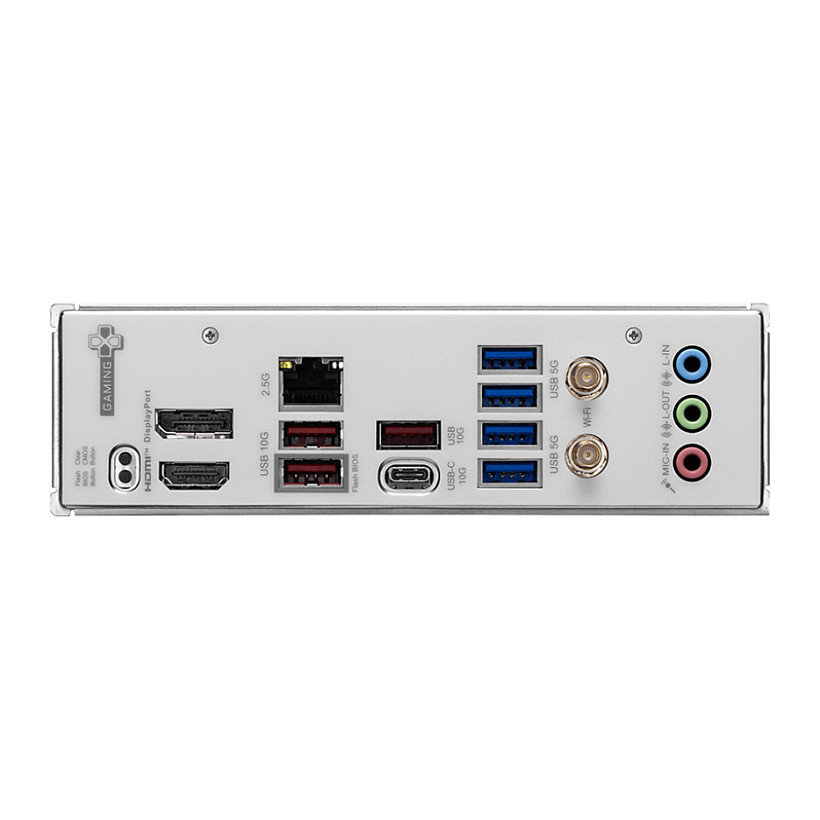

| Interfaces | 1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen 2 3 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in 1 x microphone - mini-jack 1 x audio line-out - mini-jack 2 x aerial |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x serial - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | MSI ClickBIOS |
| Hardware Features | 12+2+1 Phase Power Design, Extended Heatsink Design, MSI AI Engine, MSI AI LAN Manager, Frozr AI Cooling, M.2 Shield FROZR, 6 Layer PCB, 2oz Copper PCB, Clear CMOS Button, flash BIOS button, pre-mounted I/O shield, MSI Stainless Steel Back I/O, EZ Debug LED, EZ Conn-Design, MSI Steel Armor, EZ M.2 Clip II, EZ PCie Clip II, MSI Memory Boost, transient voltage suppressors, overcurrent protection, MSI Audio Boost, MSI Mystic Light |
| Miscellaneous | Miscellaneous |
| Included Accessories | EZ Wi-Fi antenna, 1 to 2 EZ Conn-Cable, EZ M.2 clip II remover, cable sticker |
| Cables Included | 1 x Serial ATA cable |
| Width | 30.48 cm |
| Depth | 24.384 cm |
