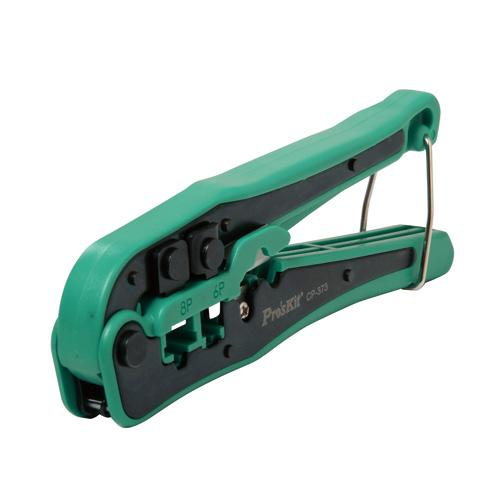

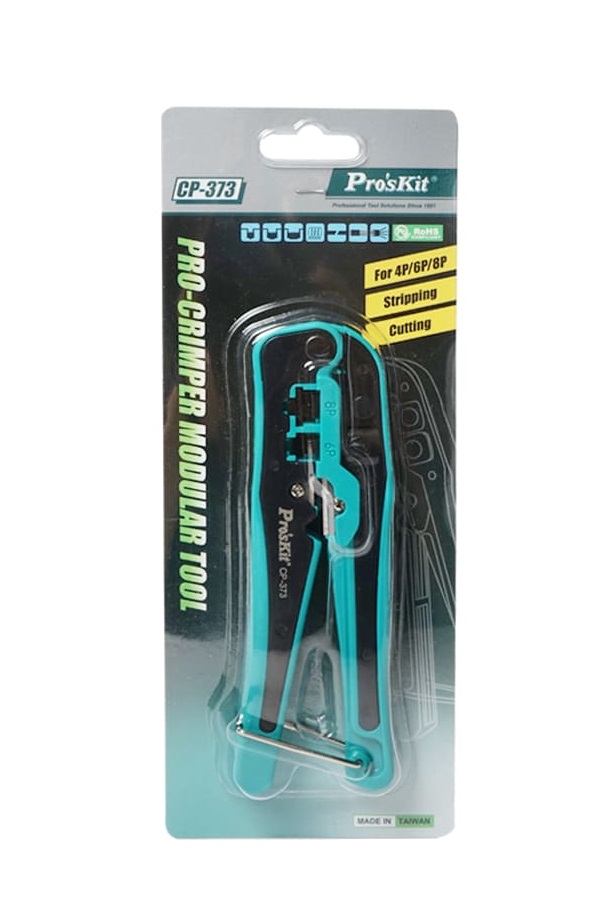

Proskit Crimping Tool Modular CP-373
Product code: 20773020 // MPN: 49P05435
New entry
€9,59 (inc. VAT)
Available from 1 to 3 days
Similar products
New entry
Noyafa Network Cable Tester 4-In-1 for USB, BNC, RJ11 and RJ45 Connections NF-3468
Code: 20771920
€14,40
Available from 1 to 3 days- Cut, crimp, strip – 3 in 1 function
- Suitable for 8P8C/RJ45 / 6P2C/6P4C/6P6C/RJ11/RJ12 / 4P2C/4P4C/RJ-22 crimping
- Cutting modular cable: Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length. Make sure to cut the ends of the cord straight across, not diagonally
- Stripping modular cable (Flat Cable) : Insert 4P/6P cable into the two-bladed side of the tool's stripper until it touches the stop guide / Insert 8P cable into the two-bladed side of the tool's stripper and let it extend a little past the lower cut blade
- Squeeze handles until it stops cable must be kept perpendicular and then pull from the tool
- Stripping Round Cable Insert the cable into the round stripping hole, turn the crimper in counter clockwise direction and cable in clockwise at the same time
- Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one and matches the right wire at the other end
- Place modular plug with cable into the tool's holder. Be sure the striped wire is between the tab and gold contacts. Squeeze handles until it stops
- 4p holder is located on the back side of the tool
- Material : ABS+carbon steel
- Application : 8P8C/RJ45, 6P2C/6P4C/6P6C RJ11 modular plugs,RJ-22 4P2C/4P4C handset modular plugs
- OAL.(mm) : 160
