KVM SWITCH

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.

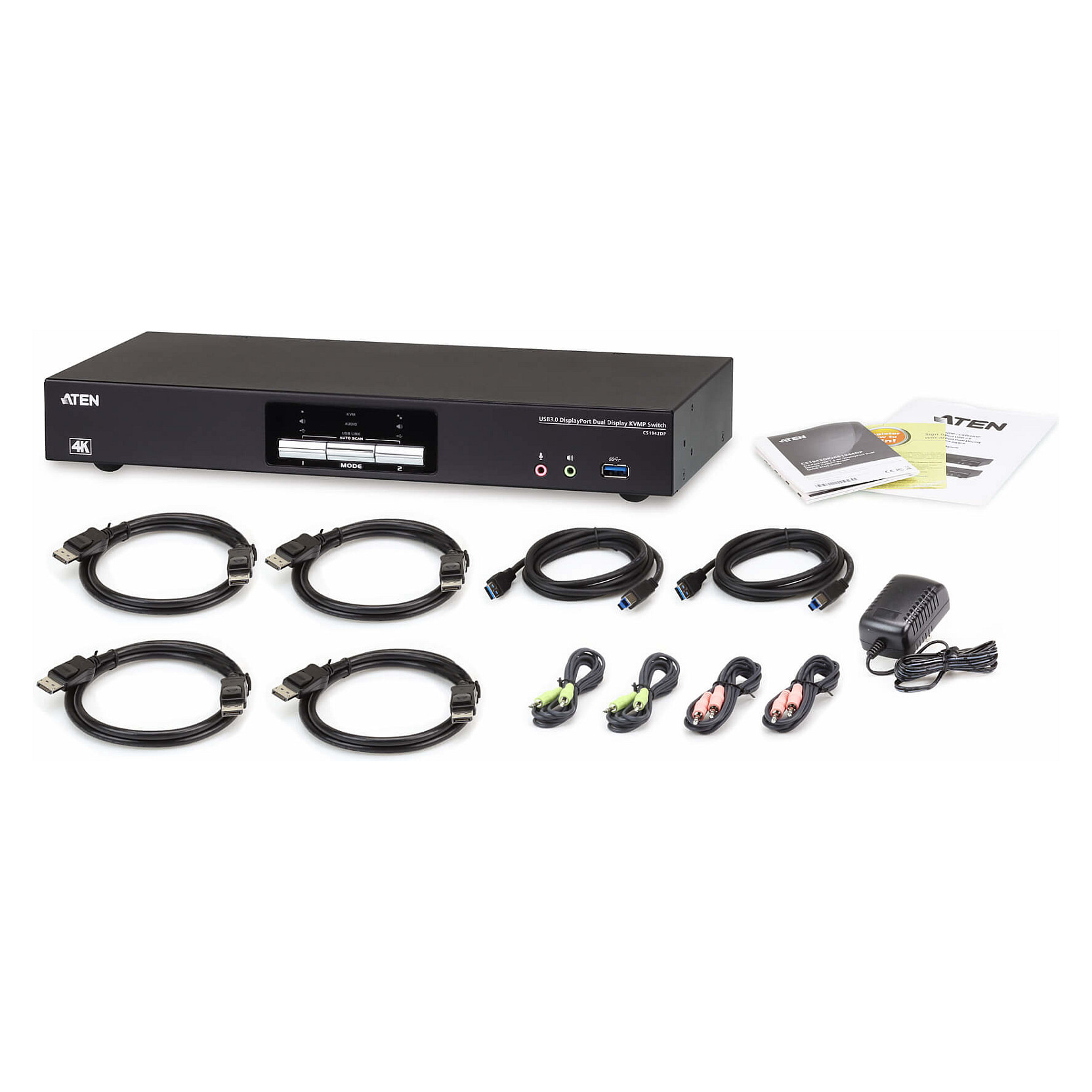

1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
4x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG/LIN5-0205-21DG Audio Cables
1x LIN2-418K-E12G Power Adapter
1x User Instructions

Ports & interfaces
Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 6
DisplayPort version: 1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity: 2
USB hub: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
Headphone outputs: 4
Number of microphone inputs: 4
DC-in jack: Yes
Network
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Performance
HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Scan interval: 1,99 s
Auto scan delay (min): 1 s
Auto scan delay (max): 99 s
HDCP: Yes
Daisy chain: Yes
Firmware upgradeable: Yes
Design
Rack mounting: No
Product colour: Black
Housing material: Metal
LED indicators: Yes
Push button: Yes
Hot keys: Yes
Display
Built-in display: No
Power
Power source: DC
Input voltage: 12 V
Power consumption (typical): 3.48 W
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
Width: 156.6 mm
Depth: 335 mm
Height: 44 mm
Weight: 2.74 kg
Packaging data
Package width: 116 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 3.36 kg
Packaging content
Cables included: Audio (3.5mm), DisplayPort to Mini DisplayPort, USB
Manual: Yes
AC adapter included: Yes
Logistics data
Master (outer) case net weight: 8.22 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 375 mm
Master (outer) case length: 565 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 11.2 kg
Products per master (outer) case: 3 pc(s)
