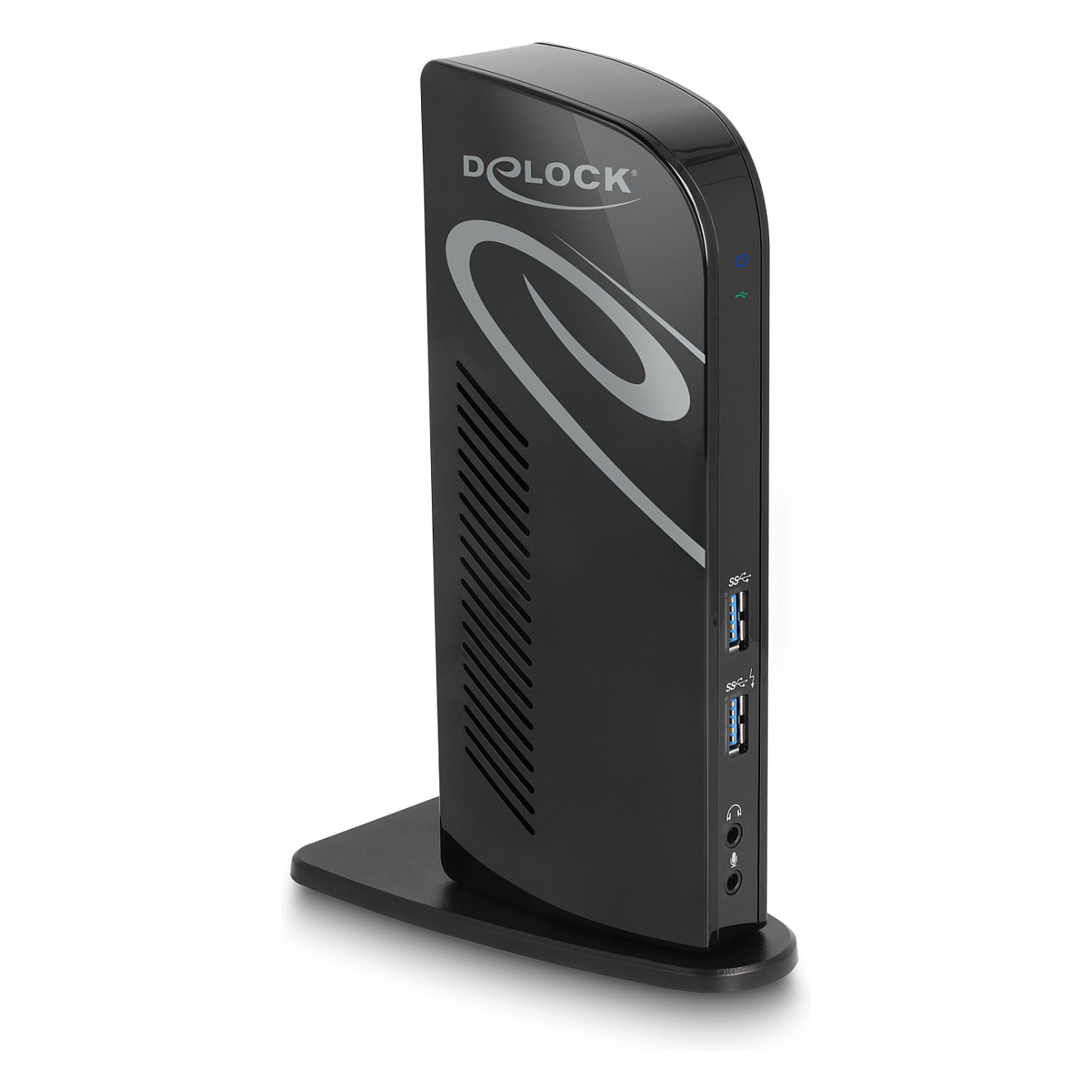

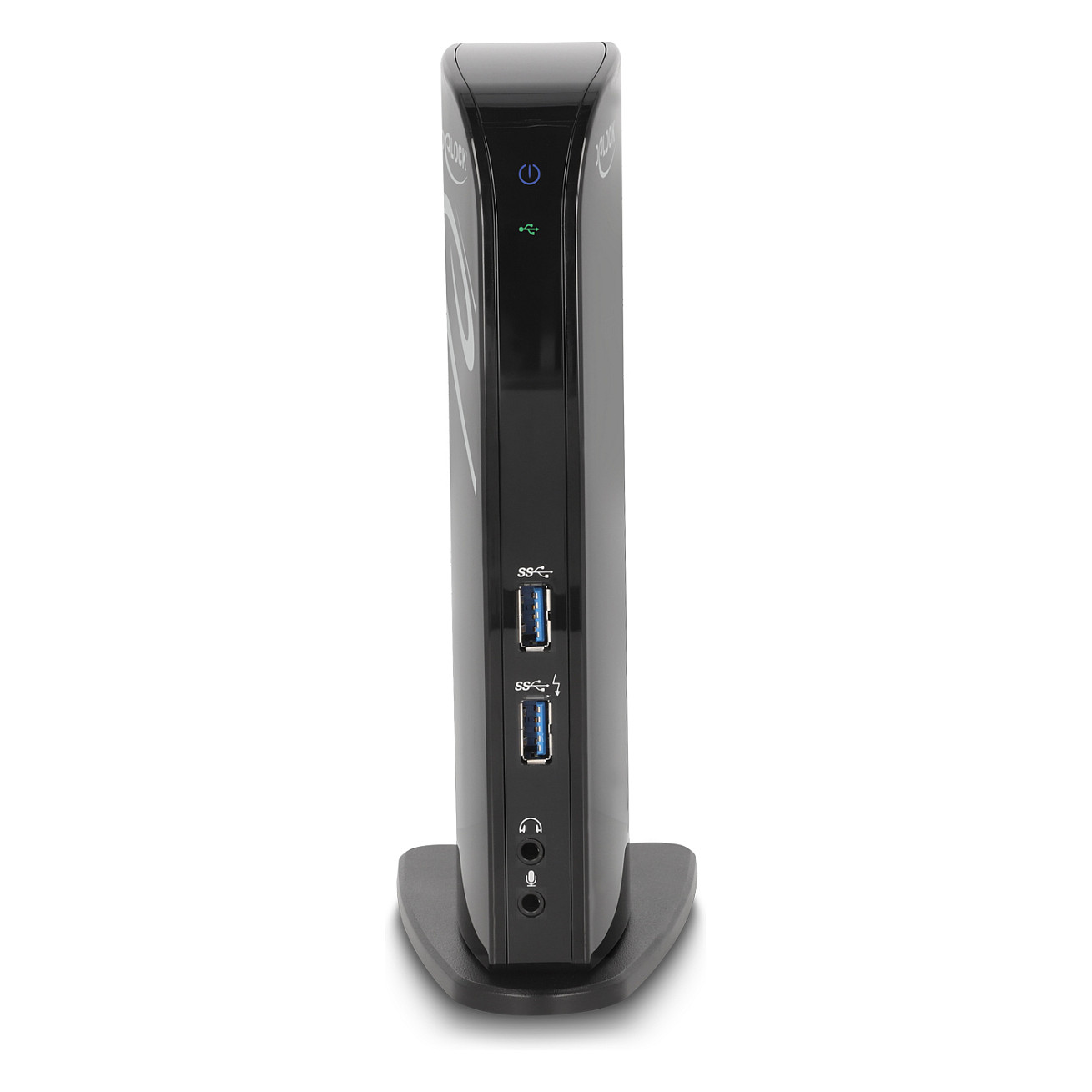

This docking station by Delock can be connected to a computer with a USB-C™ or USB Type-A port and provides a variety of interfaces. Two monitors can be operated simultaneously at the DisplayPort output ports. Six built-in USB 3.2 Gen 1 ports allow the use of peripherals, and connections for microphone and speaker and Gigabit network complete the features.

4K 60 Hz UHD resolution
Ultra-HD (4K) resolution is possible when using only one monitor and also when using both DisplayPort outputs at the same time. There is no DisplayPort Alternate Mode support required.

Extended screen by Displaylink
Due to the Displaylink graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.

Ports & interfaces
Connectivity technology: Docking
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 1
DisplayPorts quantity: 2
Microphone in: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
DC-in jack: Yes
Network
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Performance
Card reader integrated: No
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Product colour: Black
On/off switch: Yes
Display modes: Extended, Mirror
LED indicators: Yes
Plug and Play: Yes
Charging function: Yes
Country of origin: China
Power
Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 1.3 A
Output voltage: 20 V
Output current: 2.25 A
USB cable length: 1 m
Software
Windows operating systems supported: Windows 10, Windows 11, Windows 8.1
Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Weight & dimensions
Width: 78 mm
Depth: 190 mm
Height: 38 mm
Packaging data
Quantity per pack: 1 pc(s)
Packaging content
Cables included: Power, USB Type-A to Micro-USB Type-B, USB Type-C to Micro-USB Type-B
Manual: Yes
