Cat.6 extenders allow for cost effective, reliable extension of audio or video signals over longer distances that are not possible with passive cable or active repeater solutions.

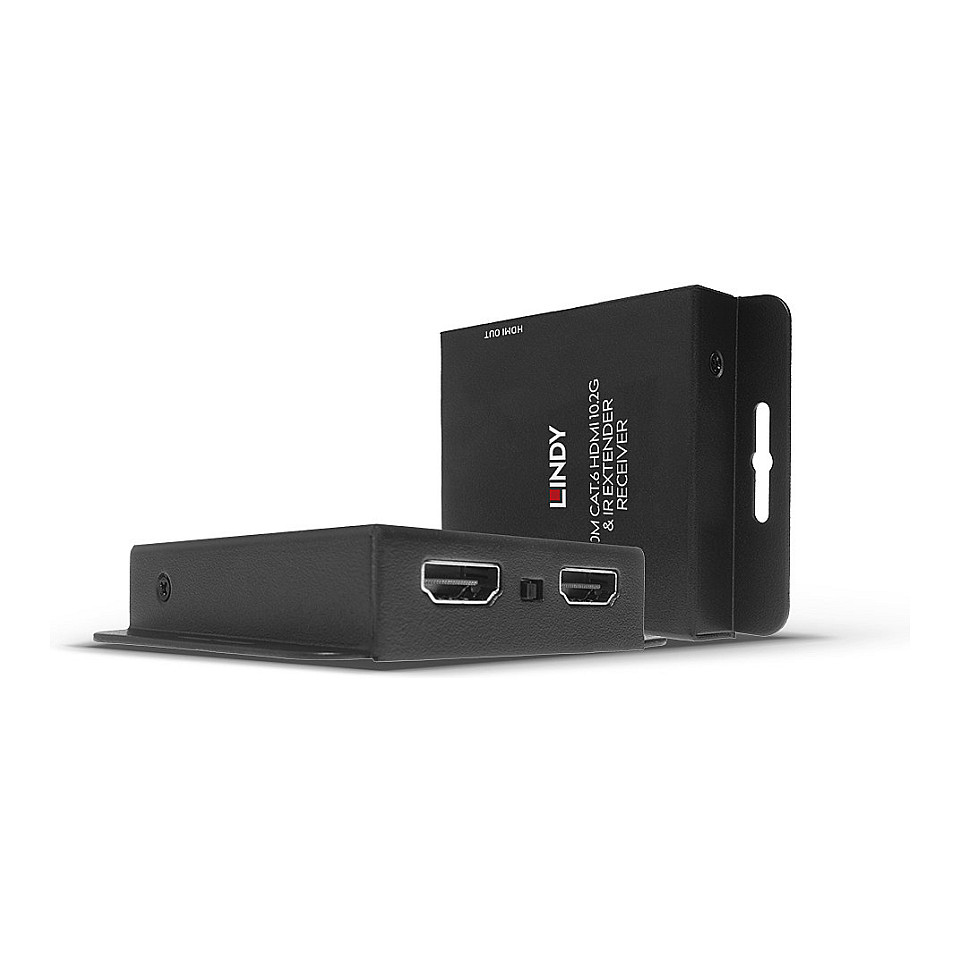

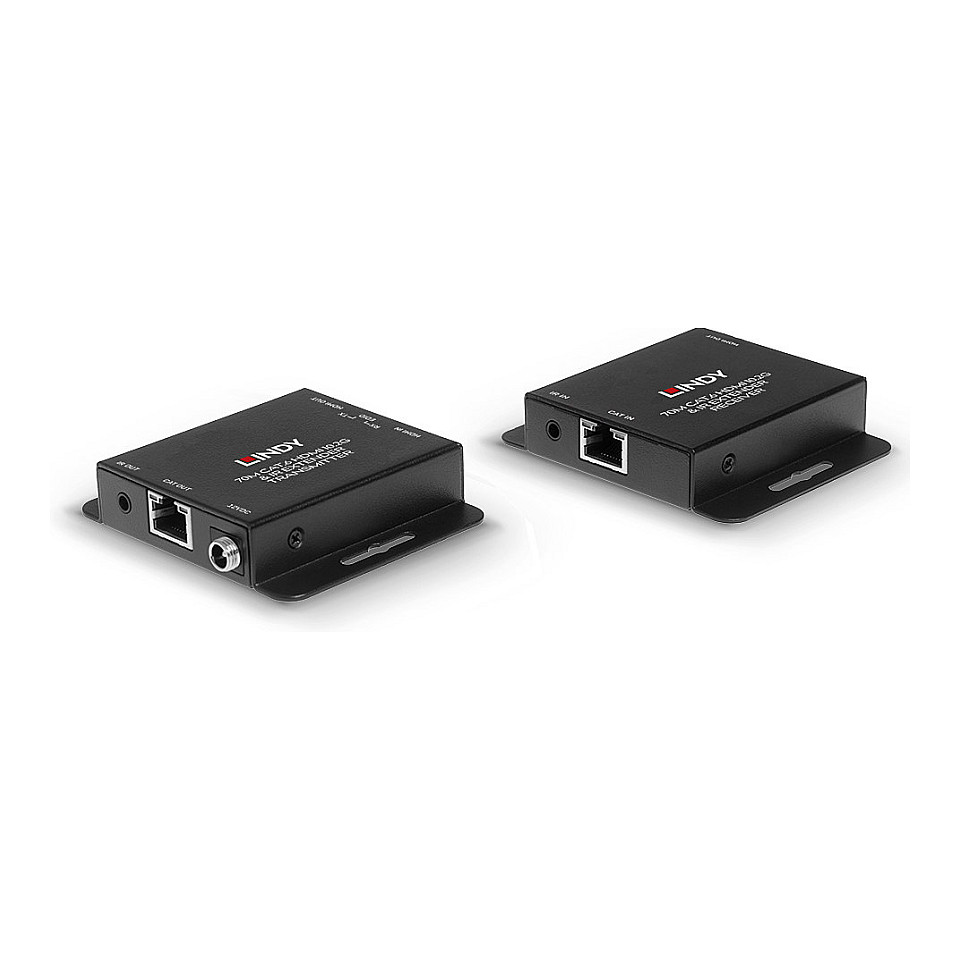

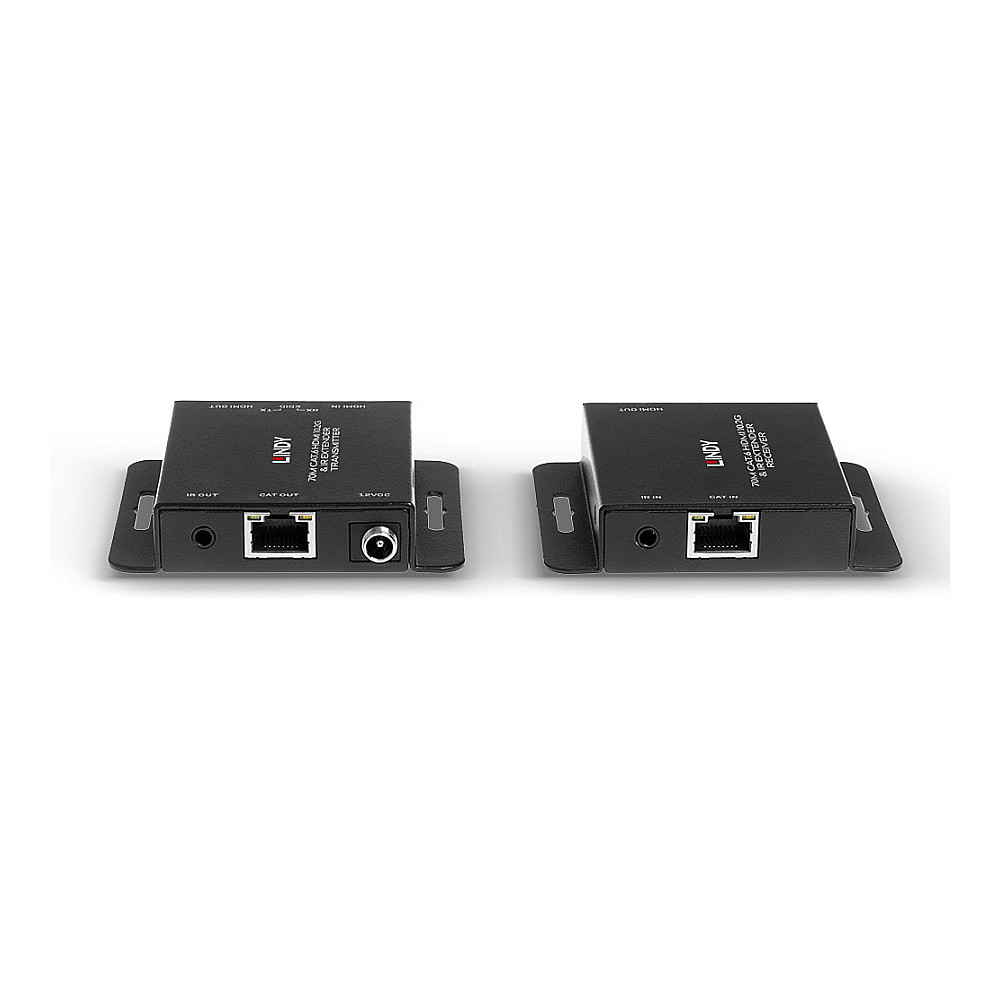

The Lindy 70m Cat.6 HDMI 4K30 and IR Extender is a simple to use solution which lets the user extend HDMI signals up to 70m using a single low cost Cat.6 U/UTP cable (not included). For added convenience, IR signals (20-60 kHz) can also be extended using the supplied IR receiver and emitter cables.

Supporting 4K resolutions up to 3840x2160@30Hz 4:4:4 8bit, video content can be seen with incredible clarity at distances up to 70m, perfect for use in a variety of AV and digital signage applications in a range of settings including residential setups, education, business, retail and healthcare.

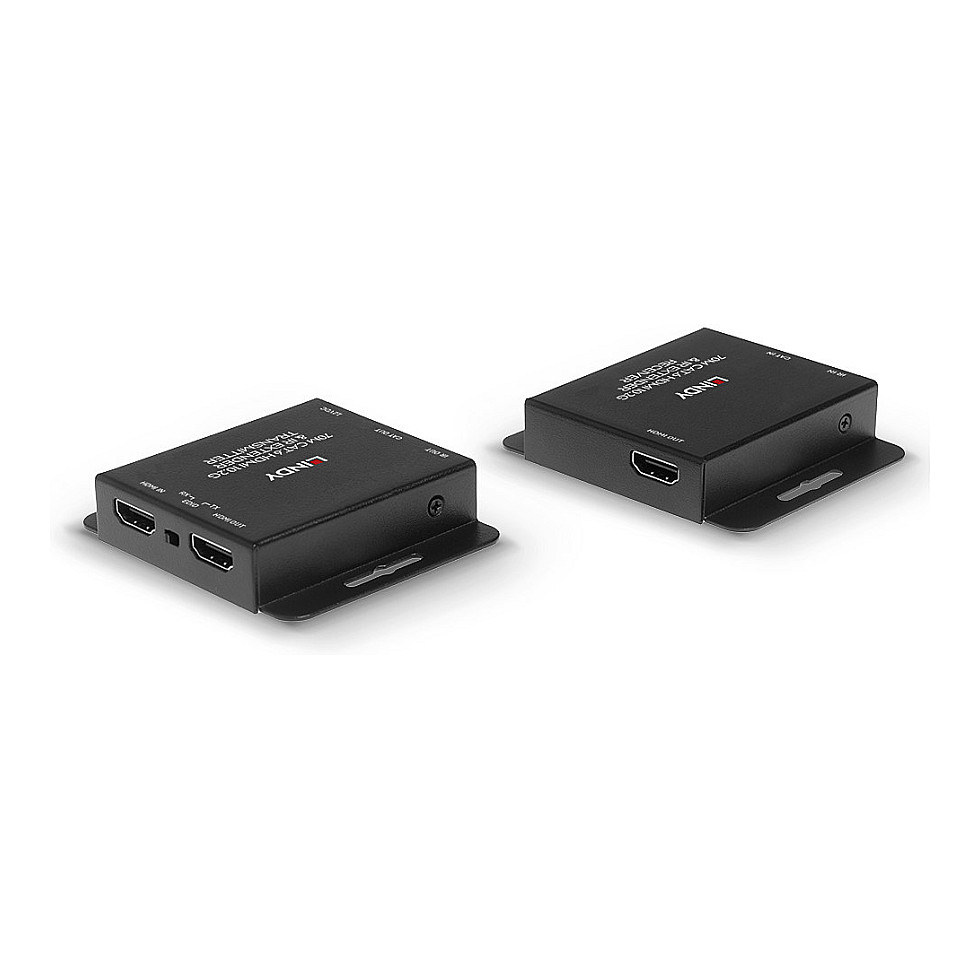

This extender features an HDMI loop-out port on the transmitter for local simultaneous viewing so that a local display can be connected for monitoring or to create an additional viewing zone. To ensure the maximum compatibility when two displays are connected, the EDID data, which determines the supported video and audio formats, can be copied from either the local display connected to the transmitter or the remote display connected to the receiver.

Power over Cable (PoC) functionality enables the extender to operate from a single power supply connected to the transmitter, allowing the receiver to be located where there is limited access to mains power sockets, making it ideal for minimalist, discreet installations.

In addition to PoC functionality the extender's slim design allow it to be easier to install in limited spaces behind flat screen monitors or TVs.

Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

Features
Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6
Maximum transfer distance: 70 m
Chipset: GSV1001
Maximum refresh rate: 60 Hz
Extended display identification data (EDID): Yes
Audio output channels: 7.1 channels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160
Bandwidth: 10.2 Gbit/s
HDCP: Yes
Material: Metal
HDCP version: 1.4
Product colour: Black
Certification: CE, FCC, RoHS, REACH
Ports & interfaces
Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 2
HDMI version: 1.4
Remote (IR) input: 1
Remote (IR) output: 1
Power
Operating voltage: 12 V
Input current: 1 A
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 79.5 mm
Depth: 69 mm
Height: 16.5 mm
Weight: 130 g
Packaging data
Package width: 200 mm
Package depth: 70 mm
Package height: 113 mm
Package weight: 414 g
Packaging content
AC adapter included: Yes
Manual: Yes
IR receiver included: Yes
Technical details
Compliance certificates: CE, REACH, RoHS
