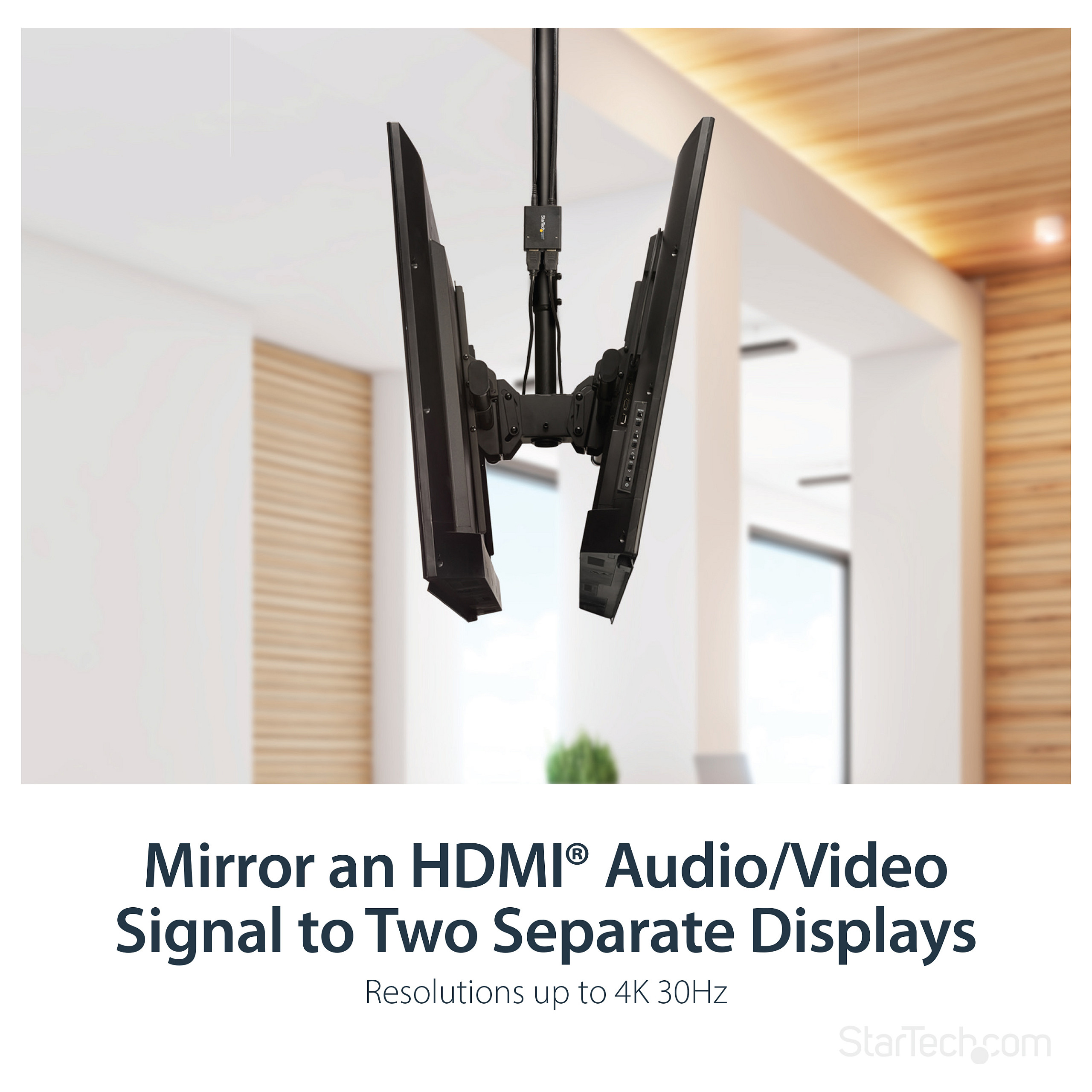

Split an HDMI audio/video source to two separate HDMI Displays, with support for HDMI 4K, and Power through a nearby USB port.

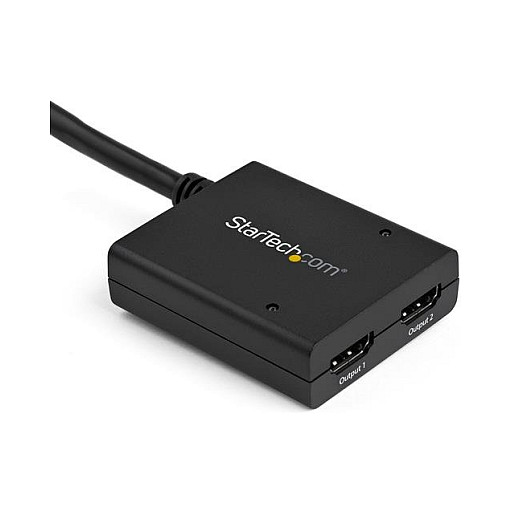

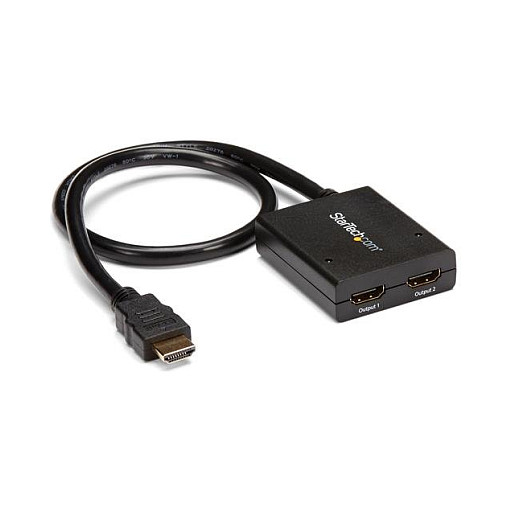

The ST122HD4KU 2-port video splitter supports Ultra HD (4K) ensuring astonishing picture quality, four times the resolution of high-definition 1080p, while sharing a 4K HDMI video source between two HDMI displays.

The 4K splitter is backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices such as computers, Blu-ray players and cable TV set-top boxes. Even if you don't require 4K video today, the video splitter ensures you'll be ready to take advantage of tomorrow's display technology while still working with the devices you already have. Plus, this splitter supports 3D, enabling you to use the splitter with your stereoscopic 3D video source on active or passive 3D displays.

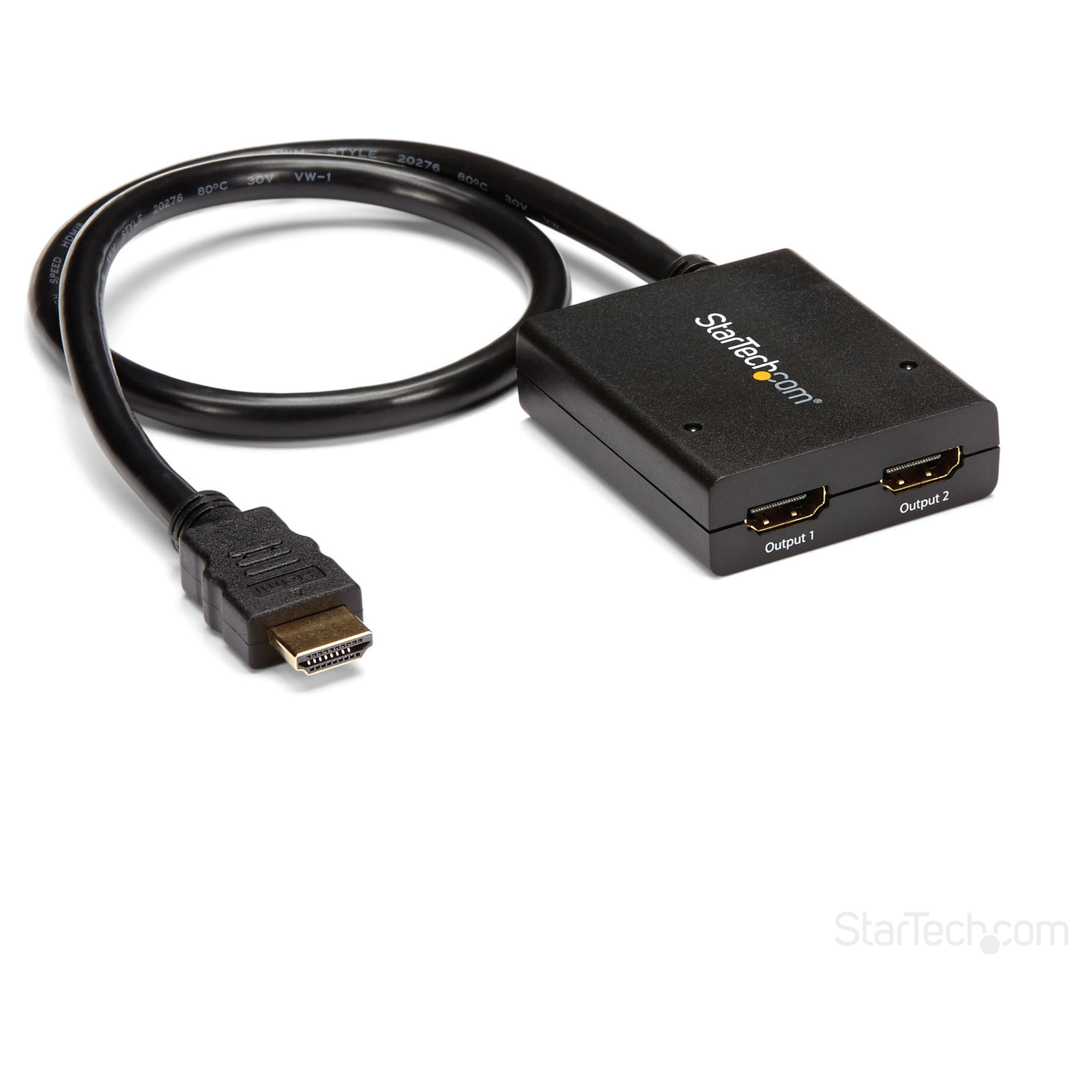

For a hassle-free setup you can power the HDMI splitter with the included USB cable, or power adapter depending on which is most convenient for you. Plus, the splitter features a built-in HDMI source cable, which lets you connect it directly to your HDMI source without the expense of additional cabling.

The ST122HD4KU is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

The StarTech.com Advantage


Ports & interfaces
Video port type: HDMI
Video out: 2x HDMI
HDMI version: 1.4
Video ports quantity: 2

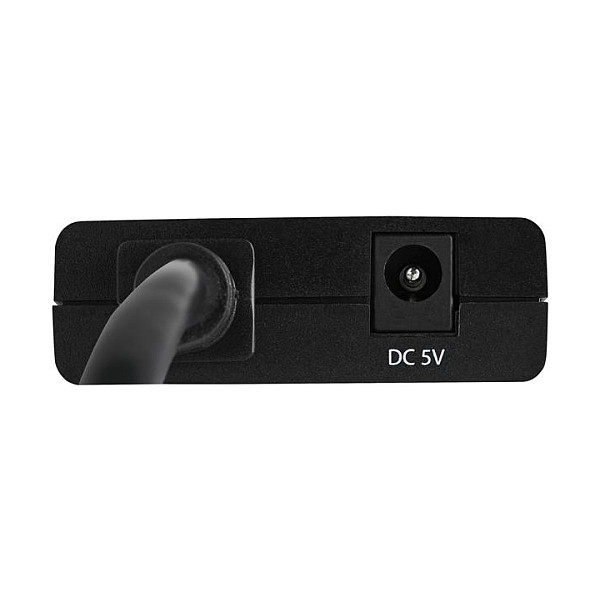

DC-in jack: Yes
Features
Product colour: Black
Maximum resolution: 3840 x 2160 pixels
Full HD: Yes
Maximum refresh rate: 30 Hz
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Certification: REACH, FCC, CE
Network
Ethernet LAN: No
Power
AC input voltage: 100-240 V
Input current: 0.5 A
Output voltage: 5 V
Output current: 2 A
USB powered: Yes

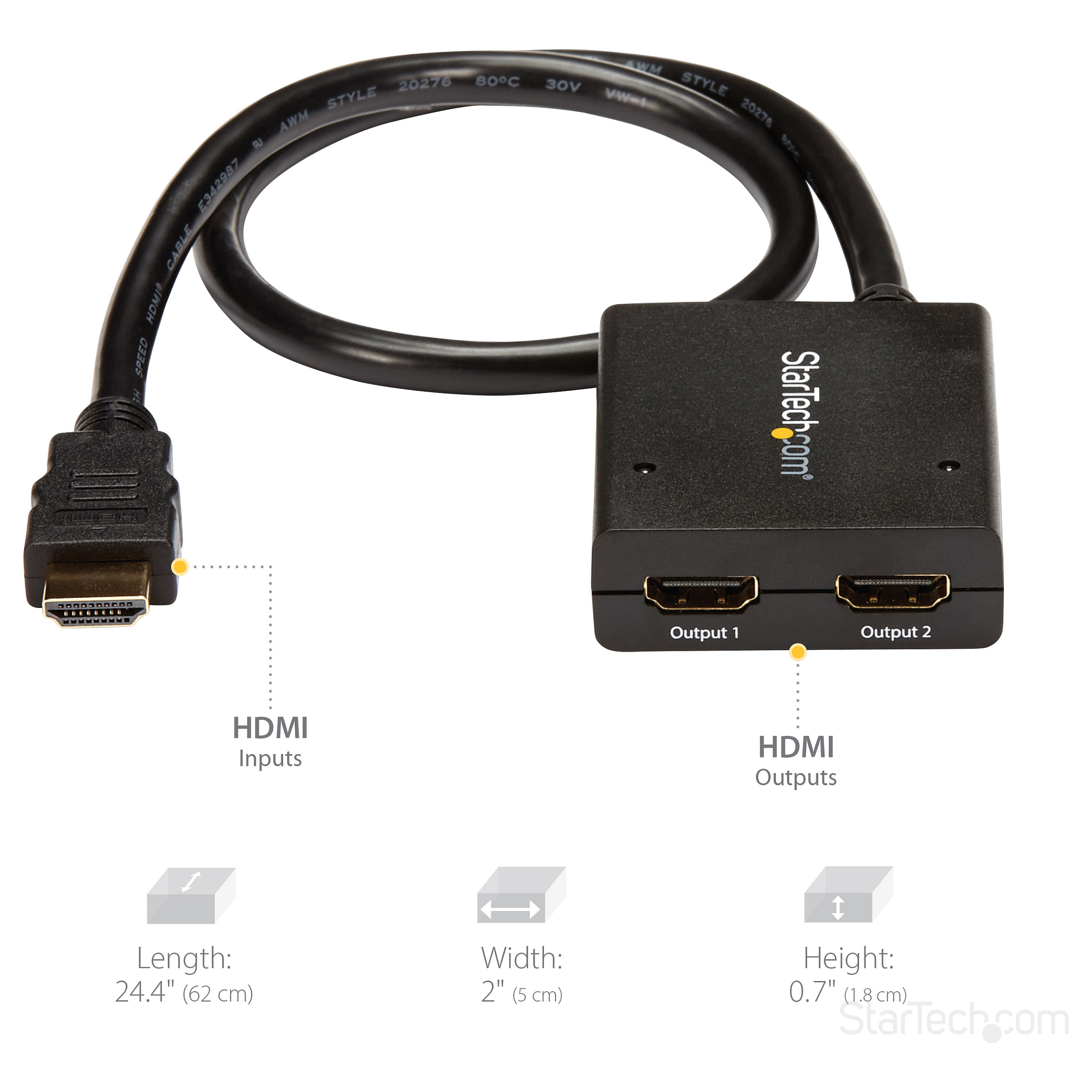

Weight & dimensions
Width: 50 mm
Depth: 620 mm
Height: 18 mm
Weight: 235 g
Packaging data
Package width: 230 mm
Package depth: 156 mm
Package height: 56 mm
Package weight: 396 g
Packaging content
Manual: Yes
Cables included: USB
AC adapter included: Yes
Included power plug types: AU, EU, NA, UK
Technical details
Audio support: Yes
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 85176990
