AJAX FIBRA MultiRelay

New entry

Add to wishlist

Code: 25071420

Available from 1 to 3 days

** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license

Advanced automation for greater safety

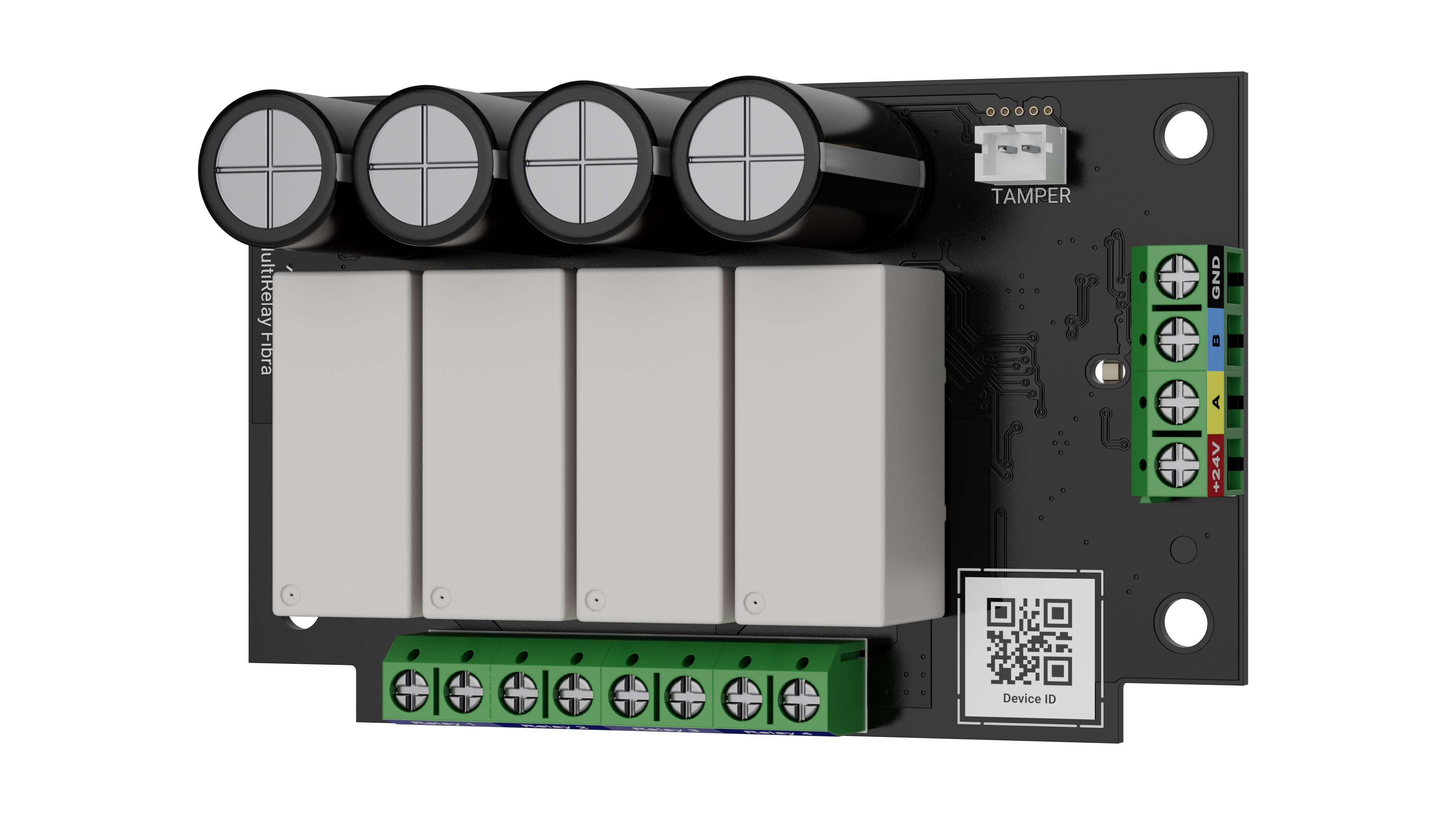

MultiRelay Fibra is a relay module designed to implement complex wiring diagrams. It has four relays with potential-free (dry) contacts that can control four separate circuits independently. MultiRelay can integrate various appliances, electrical mechanisms and even third-party security devices into the Ajax system. With Ajax scenarios, the module provides fully automated actions in response to alarms and security mode changes or performs them by a specified schedule

Smart security and comfort

Use automation scenarios to make life safer and more comfortable. Set your office lights to turn off automatically on arming. Program your projectors to turn on when outdoor motion detectors identify intruders. Or turn on your toaster at a certain time in the morning

Compatibility

Communication with the hub

Fibra communication technology : Proprietary wired Fibra communication technology combines the reliability of wires and the freedom of radio communication / Two-way communication /Advanced anti-sabotage / Instant notifications / Remote control and setup via the app
Line connection : 4-core cable / Connection : to any point of the Fibra line / MultiRelay can be installed behind the hub, detector, keypad, or siren Connection one by one of LineSplit boards is possible. The number of connected devices is limited by the total output current on the hub lines and its technical specifications
Wired connection range : up to 2,000 m / The length of the Fibra line from the hub or previous LineSplit when using the U/UTP cat.5 twisted pair
Encrypted communication

Connecting of lines

Number of input lines : 4 / MultiRelay can be installed behind any Fibra device
Number of Relays : 4 / Electrical appliances are connected to four relay outputs with dry contact
Cable length : up to 2,000 m When using U/UTP cat.5 twisted pair
Maximum current : up to 5 A at 30 V⎓ / up to 10 A at 230 V~

Anti-sabotage protection

Tampering alarm : MultiRelay has a connector to fasten the tamper board to the module. The tamper board is in Case that is sold separately
Protection against spoofing : Device authentication
Lost connection detection : In 36 seconds / Between the hub and LineSplit Fibra / Changes in hub settings

Power supply

Power supply source from the Fibra line : 8.5−30 V⎓, up to 185 mW / The security system central unit supplies the module / MultiRelay does not supply additional power to devices

Board
