SWITCHES

What This Product Does

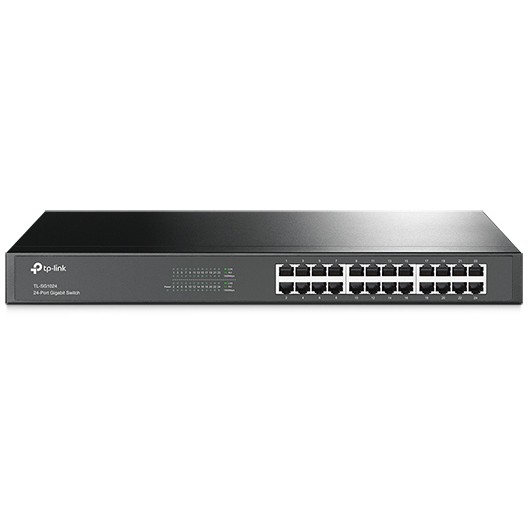

The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance. low-cost. easy-to-use. seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX. no need to worry about the cable type. simply plug and play. Moreover. with the innovative energy-efficient technology. the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled. making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS. prohibiting the use of certain hazardous materials. Besides. 80% of the packaging material can be recycled.

High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture. TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame. the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10. 100. or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance

Management features
Switch type: Unmanaged
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Network
Networking standards: IEEE 802.3ab. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T. 100BASE-TX. 10BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Data transmission
Supported data transfer rates: 10/100/1000 Mbps
Switching capacity: 48 Gbit/s
Forwarding rate: 35.7 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Maximum data transfer rate: 1 Gbit/s
Feature: Jumbo frames support
Jumbo frames: 10000
Protocols
Supported network protocols: CSMA/CD. TCP/IP
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Feature: LED indicators
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 13.62 W
Other features
Connectivity technology: Wired
Bandwidth: 48 Gbit/s
Feature: Connectivity LEDs
Dimensions (W x D x H) (imperial): 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 32 - 104 °F
Heat dissipation: 46.44 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 180 mm
Height: 44 mm
Packaging content
Cables included: AC
Feature: User guide
Feature: Rack mount kit
Packaging data
Package width: 250 mm
Package depth: 528 mm
Package height: 80 mm
Package weight: 2.13 kg
Certificates
Certification: FCC. CE. RoHS
