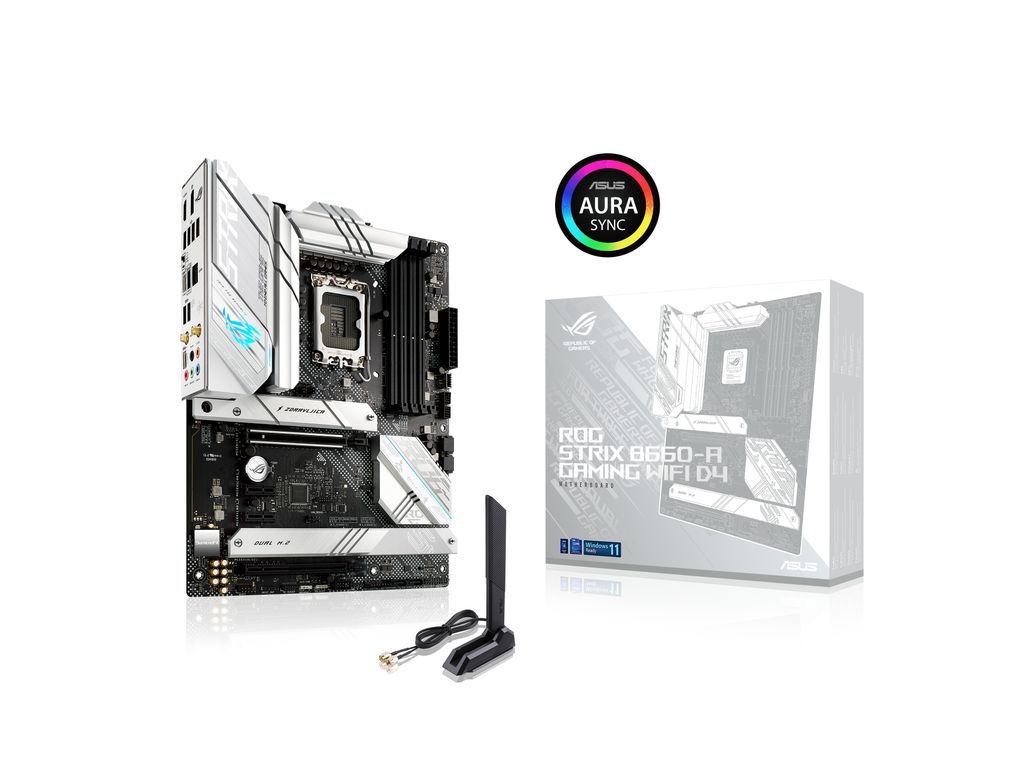

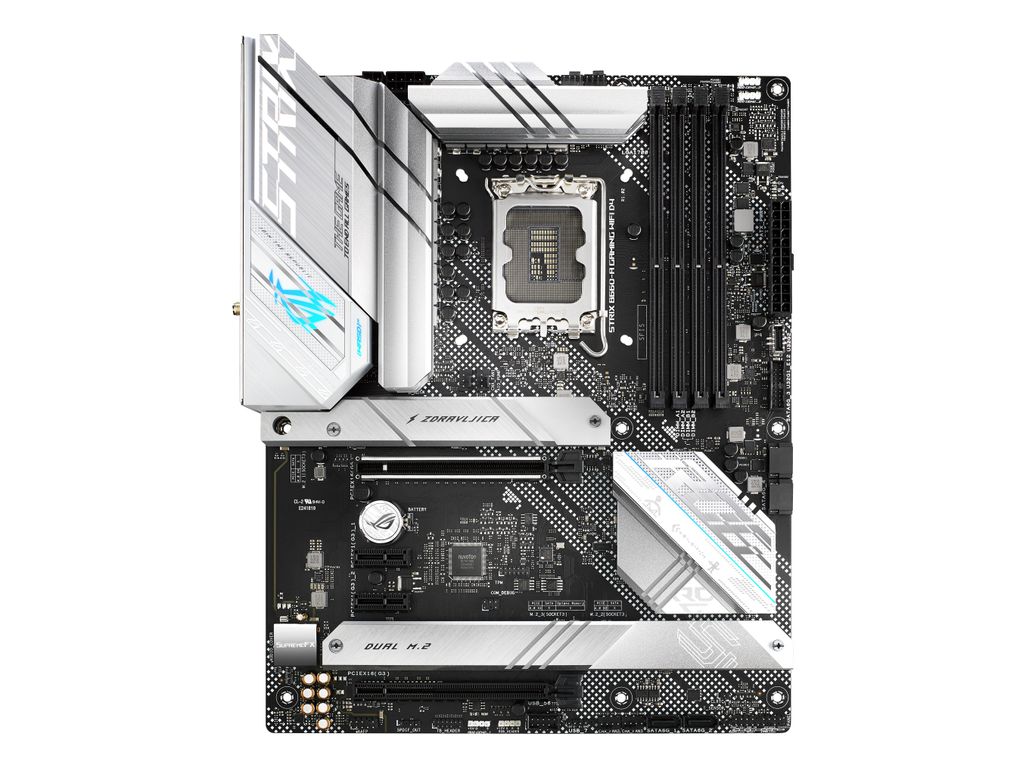

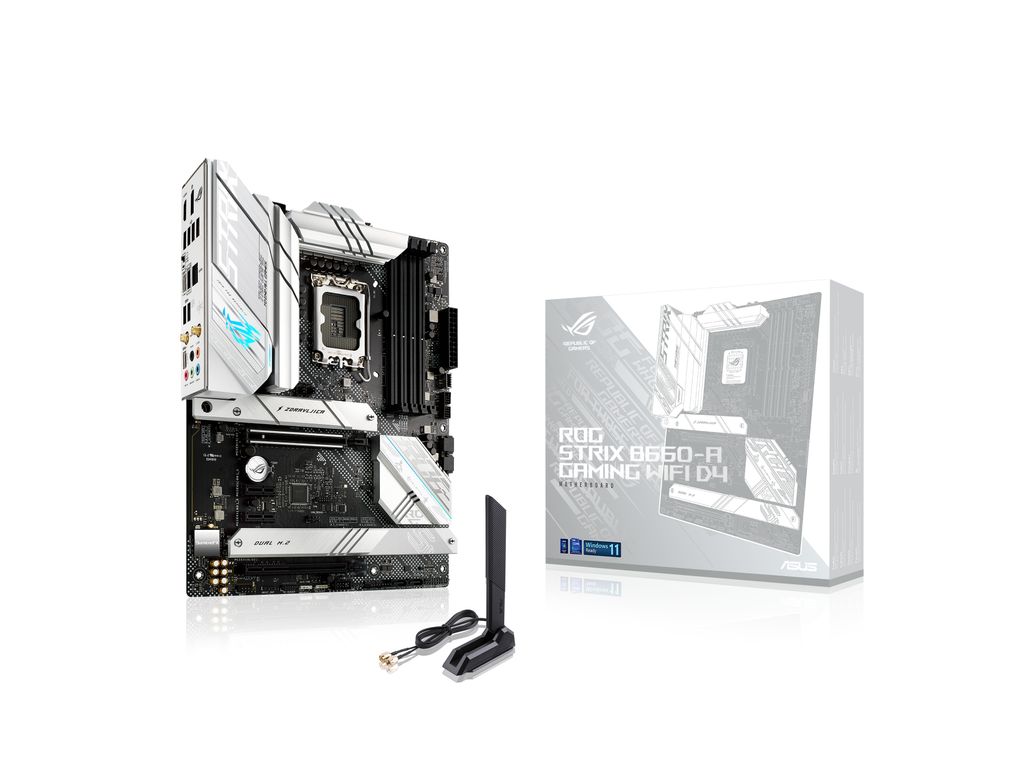

MB ASUS ROG STRIX B660-A GAMING WIFI D4(Intel,1700,DDR4,ATX)

Κωδικός: 19850223 // Κωδικός προμηθευτή: 90MB18S0-M1EAY0 // EAN: 4711081521501

€277,65 (συμπ. ΦΠΑ)

4-10 εργάσιμες ημέρες (5 τεμάχια διαθέσιμα)

Προσθήκη στη wishlist

Δείτε επίσης

ASRock B850M-X Wifi R2.0 AM5 mATX HDMI/DP DDR5

Κωδικός: 19660423

€150,00

4-10 εργάσιμες ημέρες

Product Type	Motherboard - ATX
Chipset Type	Intel B660
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM	Supported RAM
Max Size	128 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio	Audio
Type	HD Audio (8-channel)
Audio Codec	SupremeFX (ALC4080)
Compliant Standards	High Definition Audio, DTS Sound Unbound
LAN	LAN
Network Interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU Â¦ 4 x DIMM 288-pin Â¦ 1 x PCIe 5.0 x16 Â¦ 1 x PCIe 3.0 x16 (x4 mode) Â¦ 2 x PCIe 3.0 x1 Â¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) Â¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 Â¦ PCIe 4.0 -connectors: 3 x M.2
RAID Features	Intel Rapid Storage Technology

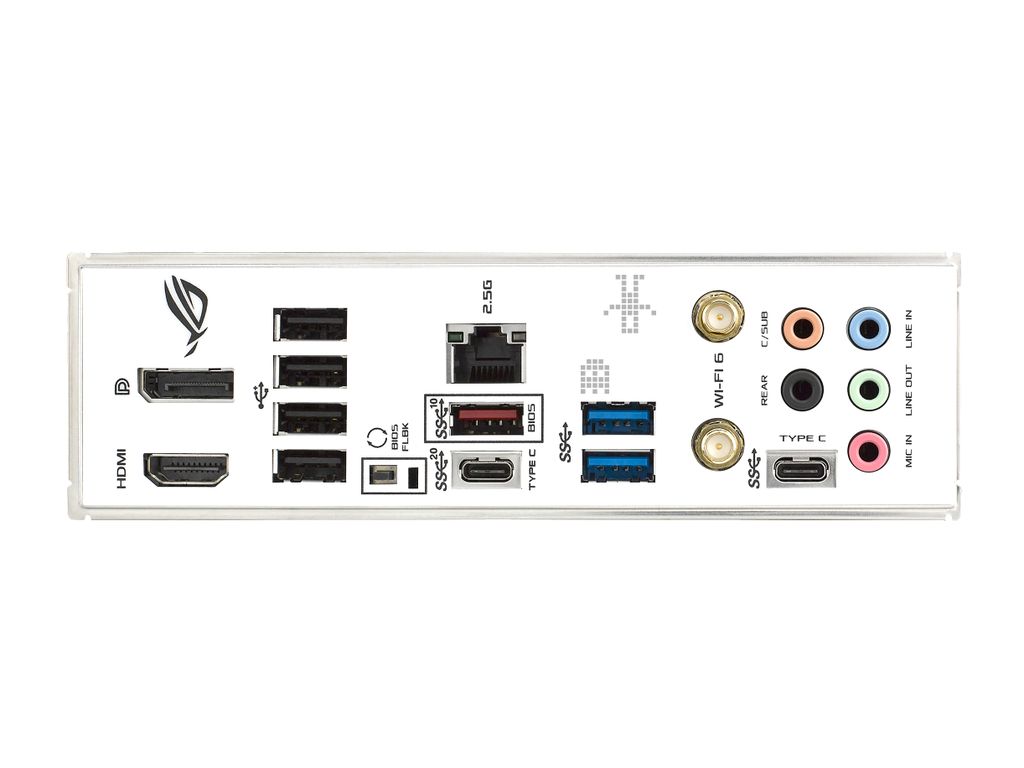

Interfaces	1 x HDMI Â¦ 1 x DisplayPort Â¦ 1 x LAN (2.5Gigabit Ethernet) Â¦ 1 x USB-C 3.2 Gen2x2 Â¦ 4 x USB 2.0 Â¦ 1 x USB 3.2 Gen 2 Â¦ 2 x USB 3.2 Gen 1 Â¦ 1 x USB-C 3.2 Gen 1 Â¦ 1 x audio line-in - mini-jack Â¦ 1 x audio line-out (rear) - mini-jack Â¦ 1 x audio line-out (center/subwoofer) - mini-jack Â¦ 1 x audio line-out - mini-jack Â¦ 1 x microphone - mini-jack Â¦ 2 x aerial
Internal Interfaces	3 x USB 2.0 - header Â¦ 2 x USB 3.2 Gen 1 - header Â¦ 1 x USB-C 3.2 Gen 2 - header Â¦ 1 x audio - header Â¦ 1 x Thunderbolt - header Â¦ 1 x SPDIF out - header Â¦ 1 x SPI - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features	Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), LANGuard, 6 Layer PCB, ASUS SafeSlot, Intel Optane Memory Ready, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, 12+1 Phase Power Design, DIY Friendly Design, FlexKey button, Savitech SV3H712 amplifier, M.2 Q-Latch, 5K Black Metallic Capacitors, Windows 11 compatible, CPU Socket lever protector, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED
Miscellaneous	Miscellaneous
Included Accessories	Cable ties, STRIX stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch
Cables Included	4 x Serial ATA cable
Software Included	ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4
Compliant Standards	VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, EU RoHS, EU REACH
Width	30.5 cm
Depth	24.4 cm
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 3 years
