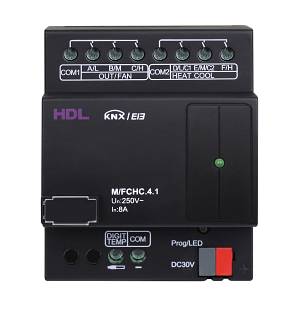

HDL Actuator KNX 5CH FCHC

Product code: 20520520 // MPN: M/FCHC.4.1

New entry

€133,44 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

HDL Panel Frame 2 Gang Ash Grey

Code: 20525120

€5,76

Available from 1 to 3 days

KNX FCHC Actuator adopts KNX/EIB communication and is used for controlling air conditioner, fan, compressor and floor heating. The module function is set via ETS software and can work in conjunctions with different panels. And up to 7 digital temperature sensors can be connected.

Multiple control objects: HVAC, Fan, Compressor, Floor heating, one control mode for each control target.
Control modes: HVAC mode, Fan mode, Compressor mode and Floor heating mode.
Active control and passive control: More flexible to work in conjunction with different panels. When in active control mode, this module can work in conjunction with panels without PI algorithm such as HDL-M/DLP04.1. When in passive control mode, this module can work in conjunction with panels with algorithm such as Siemens 5WG1.
Local temperature detection and limit temperature alarm. When the local temperature is too high or too low, te module will send an alarm signal to the bus. This module can connect to up to 7 temperature sensors.
